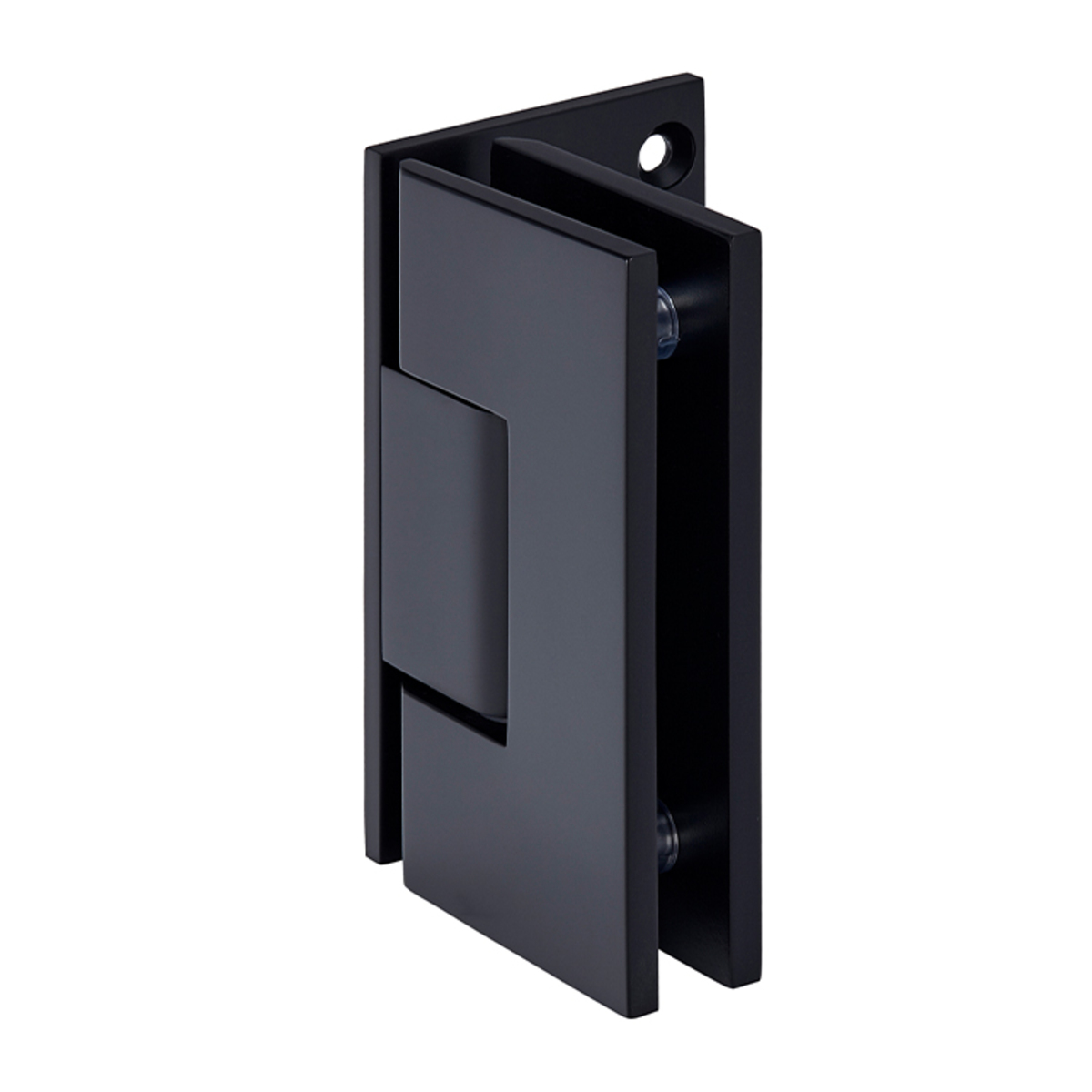

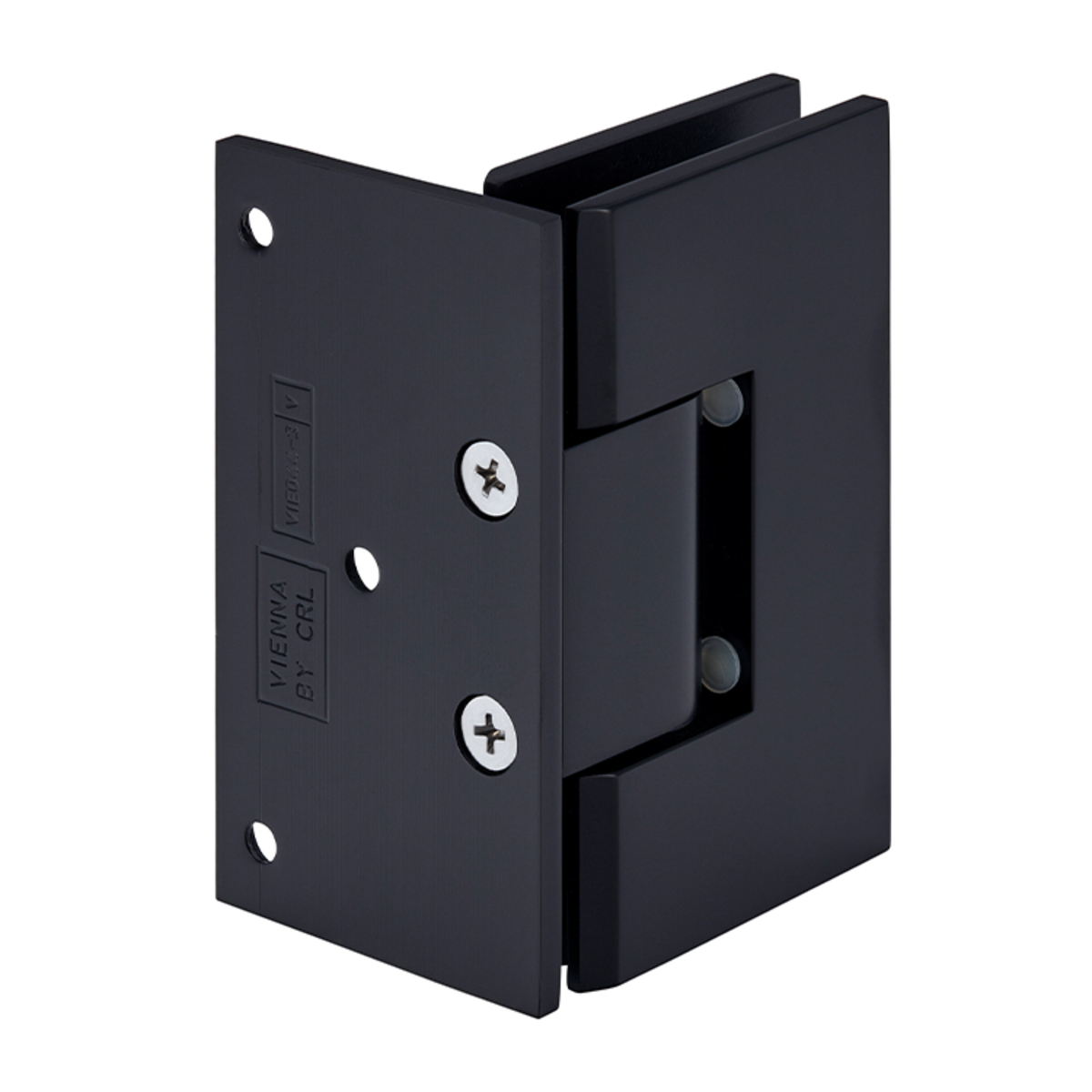

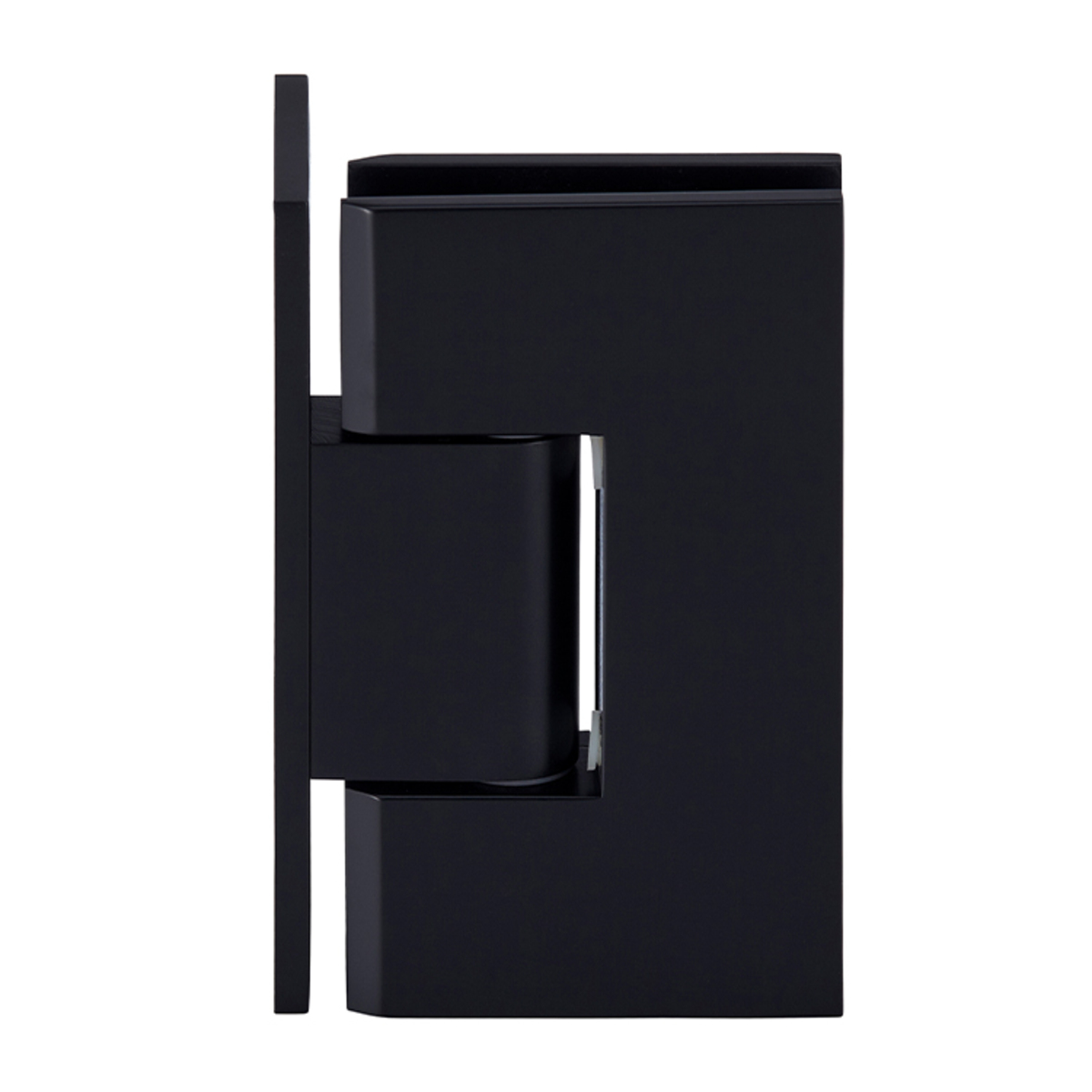

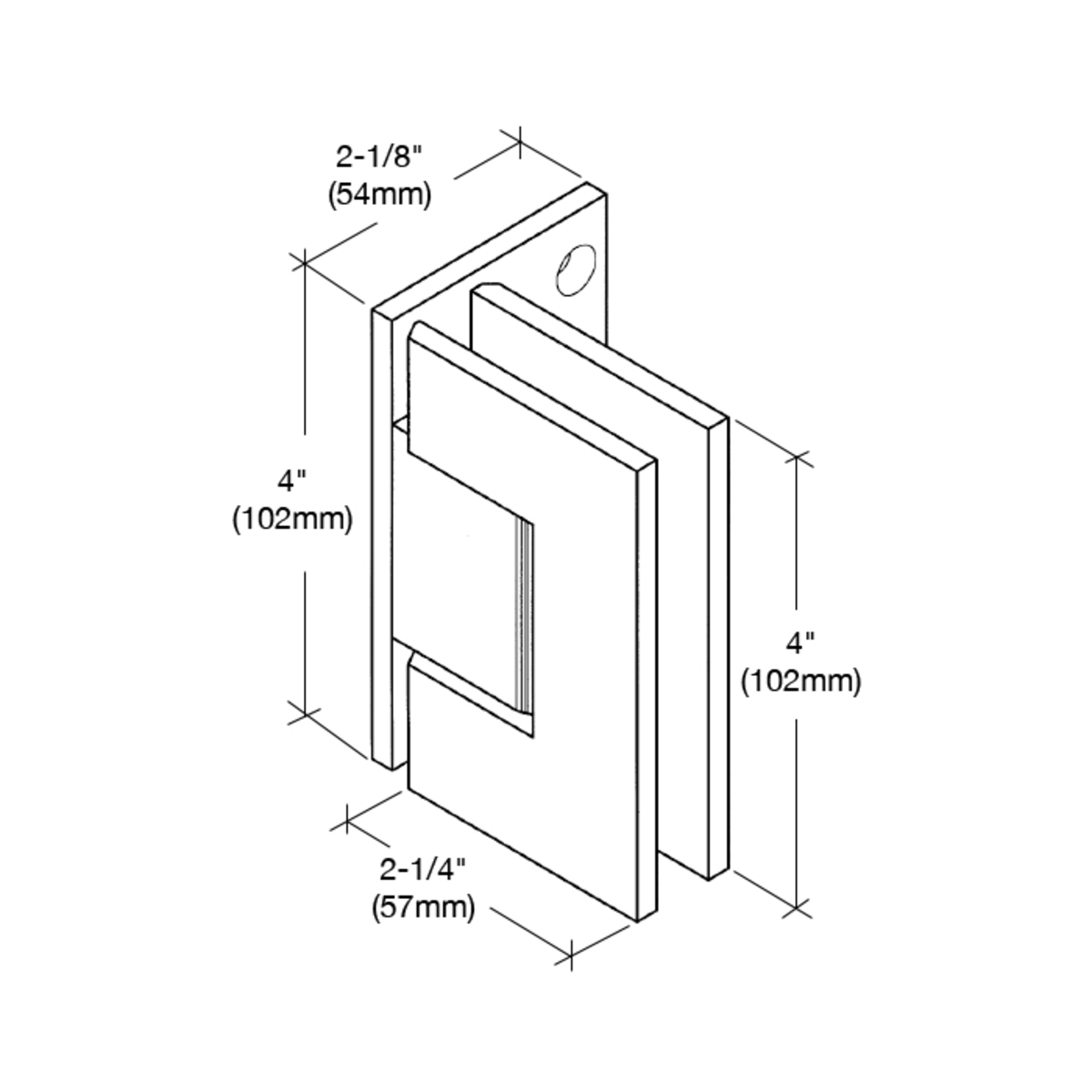

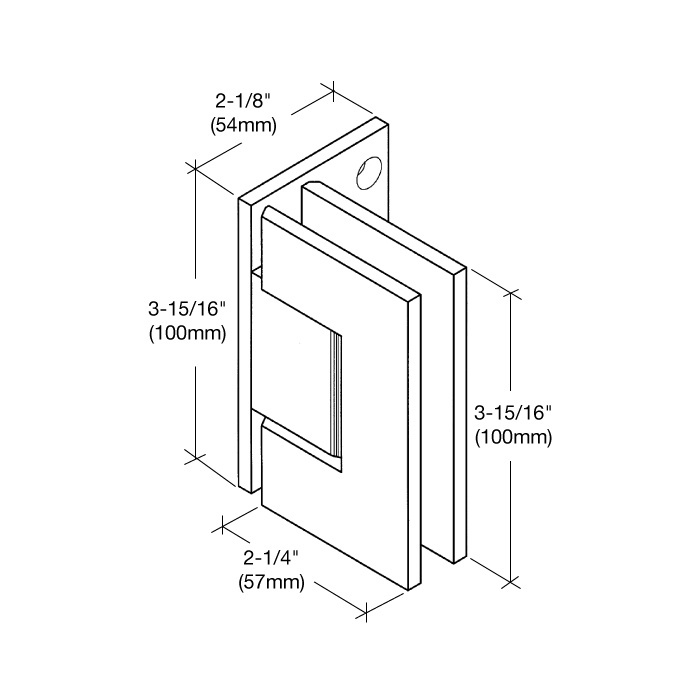

CRL V1E044MBL Matte Black Vienna 044 Wall Mount Offset Back Plate Hinge

CRL V1E044MBL Matte Black Vienna 044 Wall Mount Offset Back Plate Hinge

C.R. Laurence V1E044MBL Matte Black Vienna 044 Series Wall Mount Offset Back Plate Hinge offers a robust solution for wider and heavier shower doors, accommodating glass thicknesses from 3/8" to 1/2" (10 to 12 mm). Crafted from solid brass, this hinge is designed to support significant weight, holding up to 100 lbs. (45 kg) with two hinges or 130 lbs. (59 kg) with three hinges, making it ideal for doors up to 34" (864 mm) wide for 3/8" glass and 32" (813 mm) for 1/2" glass. The unique design features two strategically placed steel pins that allow for versatility in mounting, whether using traditional "mouse-ears" cut-outs or custom rectangular shapes. Its self-centering mechanism ensures smooth operation within 15 degrees of the closed position. The hinge also includes a reversible pivot pin, which can be adjusted for either 90 or 85 degrees for optimal door closure. Available in a stunning matte black finish, the Vienna hinge enhances the elegance of any bathroom design. Each package includes necessary gaskets and screws, ensuring a complete installation. With a three-year warranty and custom finish options available, the C.R. Laurence V1E044MBL hinge combines functionality with aesthetic appeal for discerning professionals and homeowners alike.

Matte Black Vienna 044 Series Wall Mount Offset Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Wall Mount Offset Back Plate Standard Model
• Use Monolithic Tempered Glass

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.


STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm).

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm).

Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
