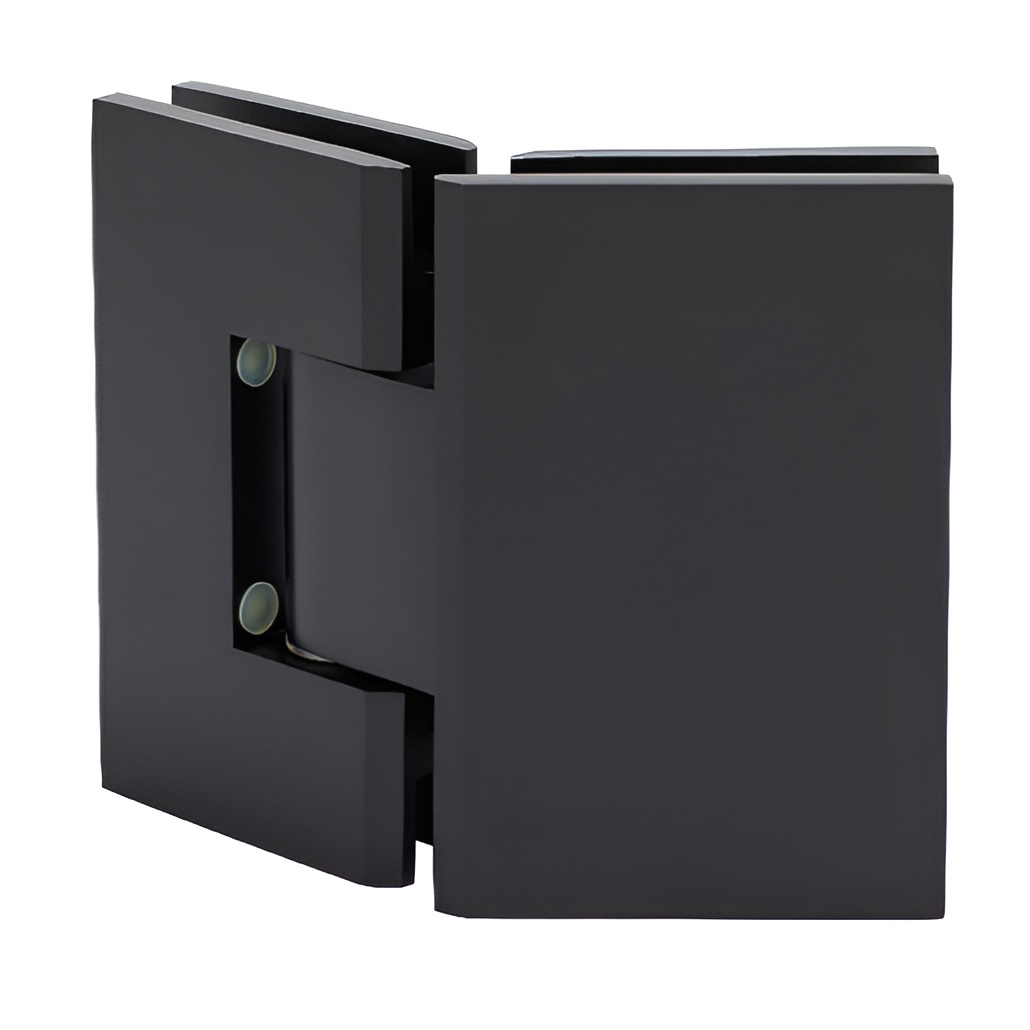

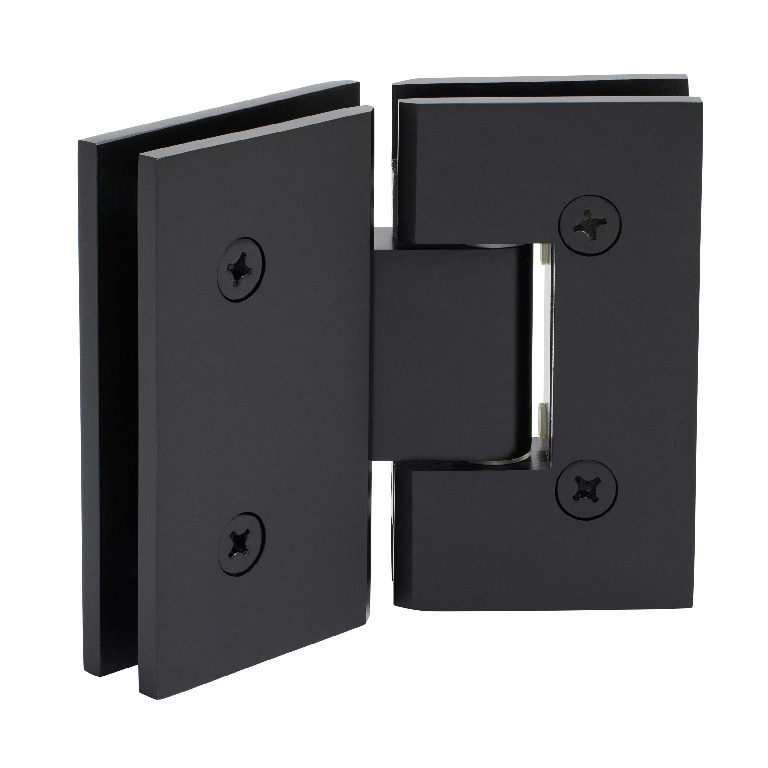

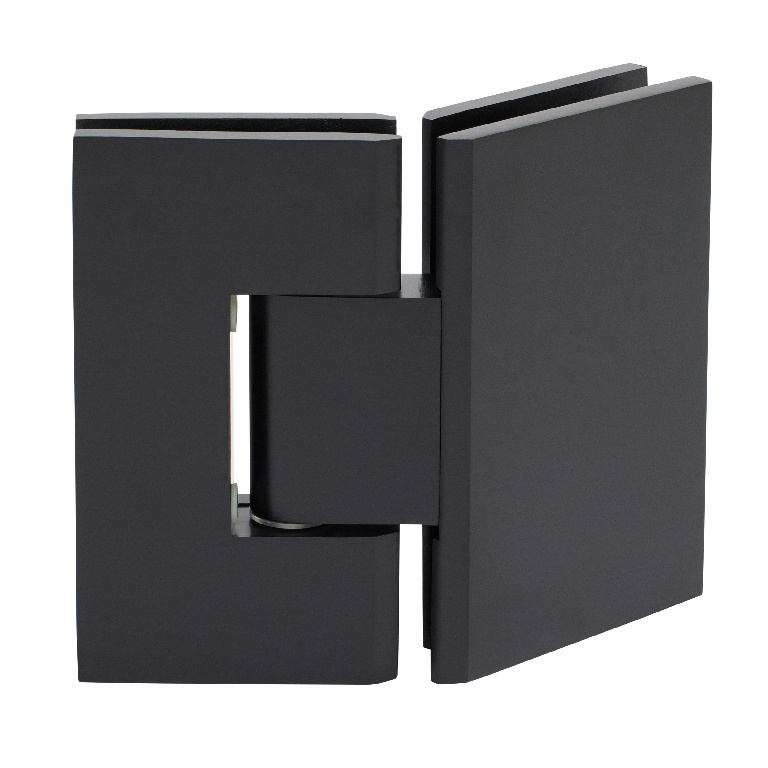

CRL V1E0450RB Oil Rubbed Bronze Vienna 045 135 Glass-to-Glass Hinge

CRL V1E0450RB Oil Rubbed Bronze Vienna 045 135 Glass-to-Glass Hinge

C.R. Laurence V1E0450RB Oil Rubbed Bronze Vienna 045 Series 135 Degree Glass-to-Glass Hinge is engineered for durability and elegance, making it an ideal choice for modern shower enclosures. Designed to accommodate 3/8" to 1/2" (10 mm to 12 mm) tempered safety glass, this hinge provides robust support for wider and heavier doors-capable of holding up to 110 lbs. (49.9 kg) with two hinges and 140 lbs. (63.5 kg) with three hinges. Featuring a sleek oil-rubbed bronze finish, the Vienna hinge not only enhances aesthetic appeal but also integrates seamlessly into various design styles. Its innovative reversible pivot pin allows for easy adjustment between 90 and 85 degrees, catering to specific installation needs. The hinge includes all necessary gaskets and screws while ensuring a self-centering mechanism when within 15 degrees of the closed position. With a maximum door width of 36 inches (914 mm), the Vienna hinge is versatile for various applications, including residential and hospitality settings. It is backed by a three-year warranty, ensuring peace of mind for builders and homeowners alike. For custom finishes or specific installation requirements, contact the CRL Technical Sales Shower Door Department for tailored solutions.

Oil Rubbed Bronze Vienna 045 Series 135 Degree Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 3 Year Warranty
• 135 Degree Glass-to-Glass
• Use Monolithic Tempered Glass

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.


STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
