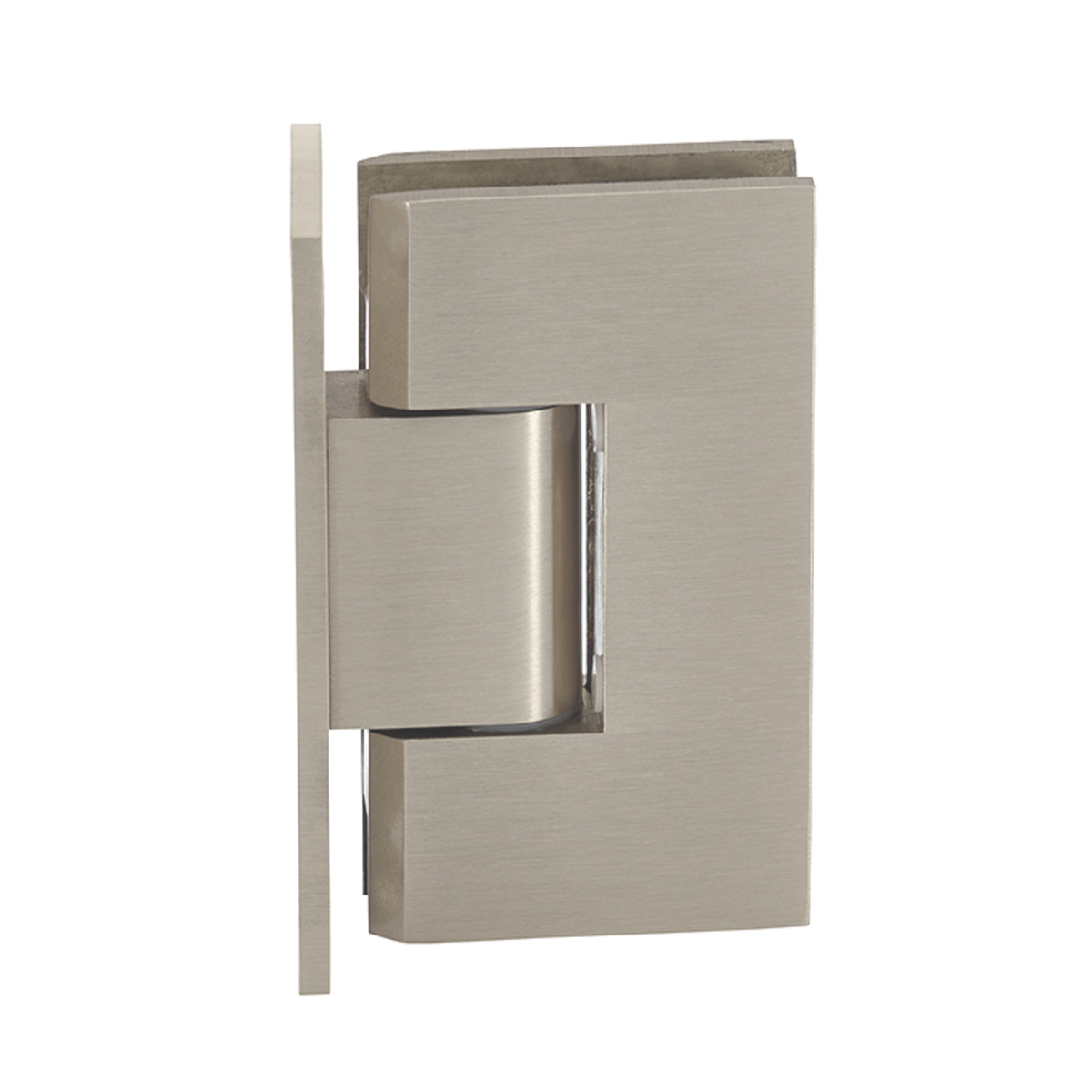

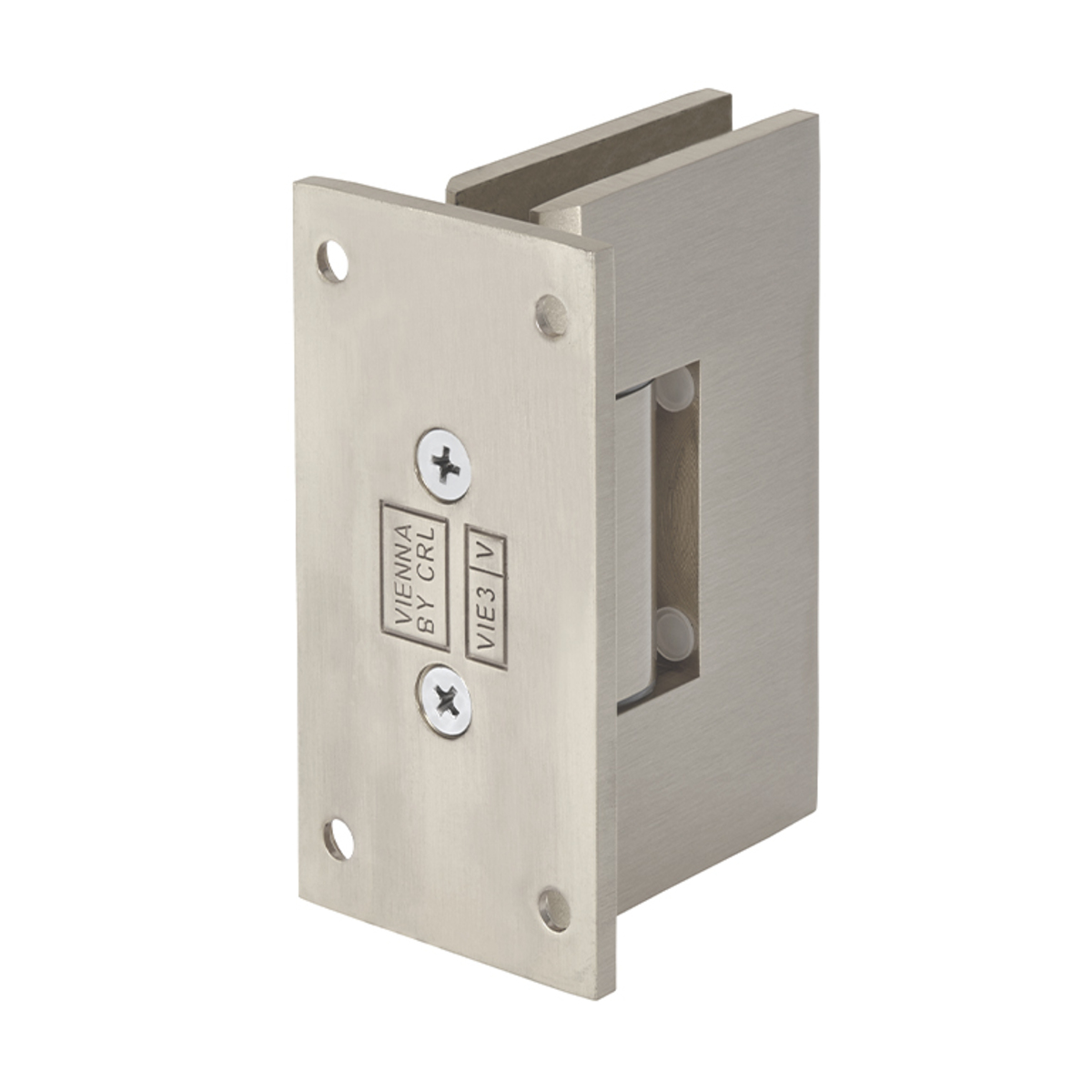

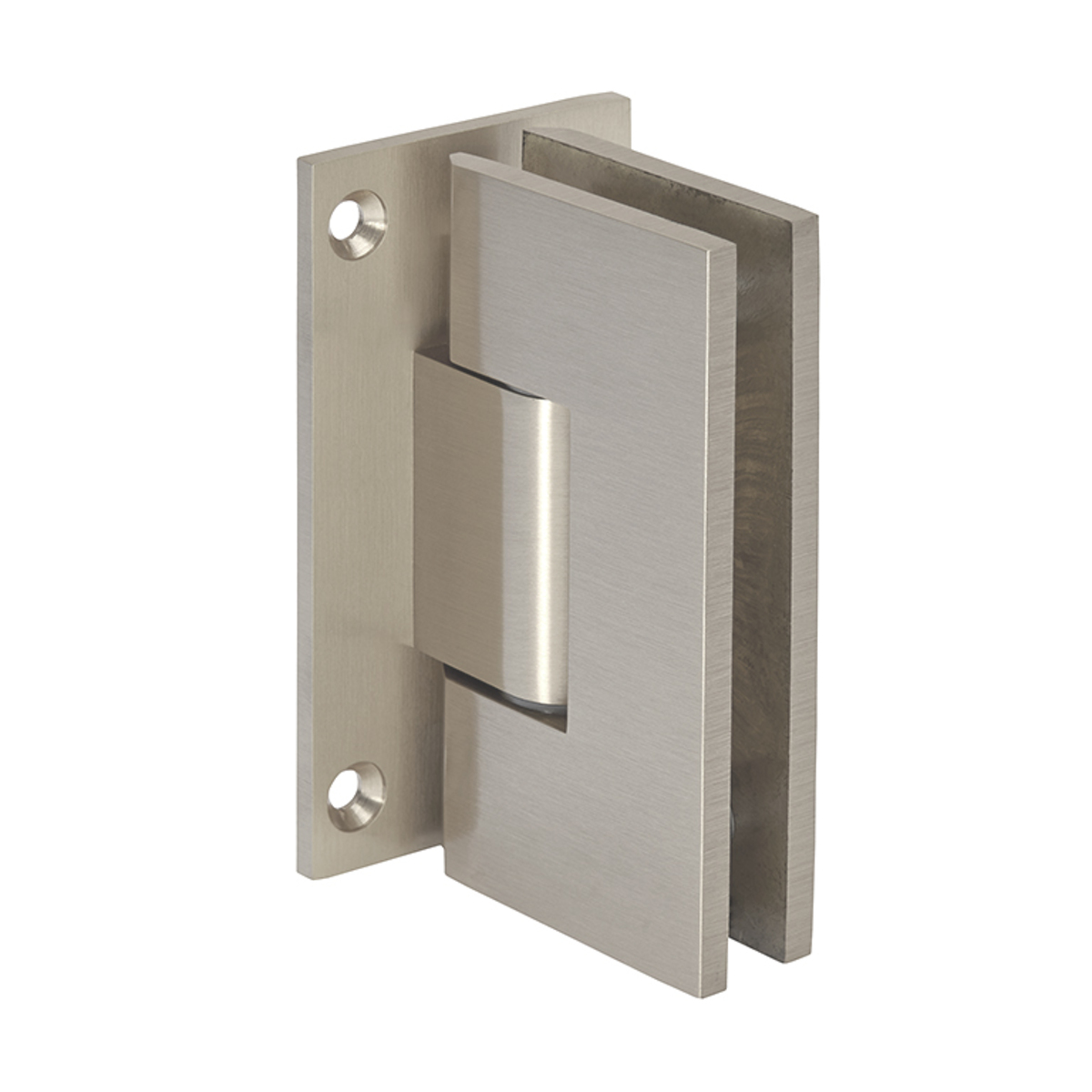

CRL V1E067BN Brushed Nickel Vienna Wall Mount Full Back Plate Hinge

CRL V1E067BN Brushed Nickel Vienna Wall Mount Full Back Plate Hinge

C.R. Laurence V1E067BN Brushed Nickel Vienna Wall Mount Full Back Plate Positive Close Hinge offers exceptional durability and precision for your glass door installations. This hinge features a specially designed grooved internal pivot pin that ensures a positive and accurate closing action, setting it apart from standard self-centering hinges. It is ideal for use with monolithic tempered glass, accommodating thicknesses ranging from 3/8" to 1/2" (10 to 12 mm). With two hinges, this model supports door weights up to 110 lbs. (50 kg) and can extend to 140 lbs. (63 kg) when three hinges are used. The maximum door width is 36" (914 mm), making it versatile for various applications. The hinge swings 90 degrees in both inward and outward directions and closes firmly to zero degrees. Constructed from solid brass, the V1E067BN is available in brushed nickel and three other popular finishes, with additional custom finishes available upon special order. Each package includes gaskets, screws, and essential glass fabrication dimensions. Designed primarily for residential and hotel shower use, this hinge requires a specific cut-out as per the included template, ensuring a perfect fit and finish for your projects.

Brushed Nickel Vienna Wall Mount Full Back Plate Positive Close Hinge

• Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
• Stocked in Wall Mount and 180 Degree Glass-to-Glass Models
• Stocked in Four Most Popular Finishes
• Other Finishes Available Upon Special Order
• Use Monolithic Tempered Glass

The Positive Close Vienna Hinge contains an internal grooved pivot pin that allows the door a precise and positive closing action. This is a different closing action than the typical self-centering Vienna Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.


Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

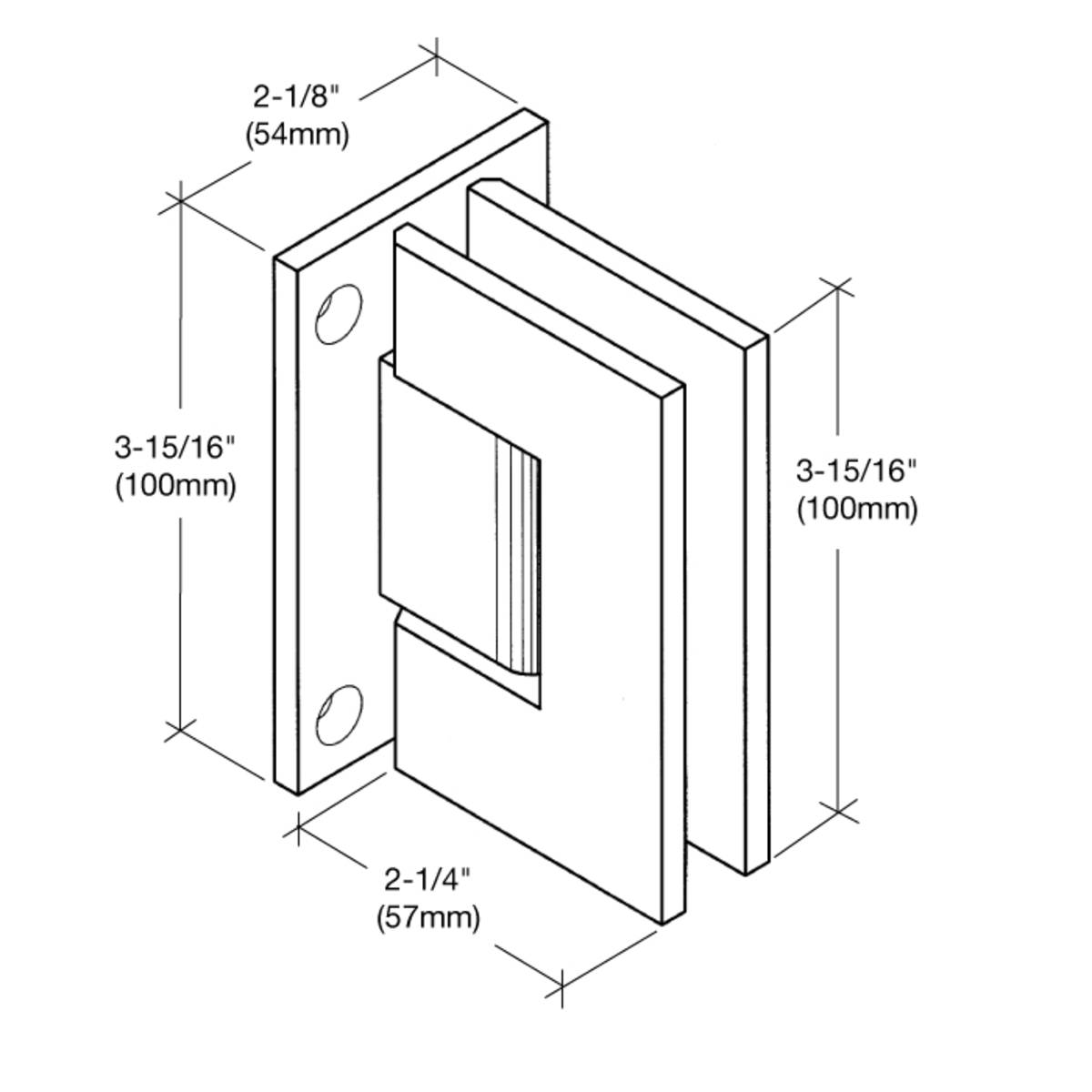

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
