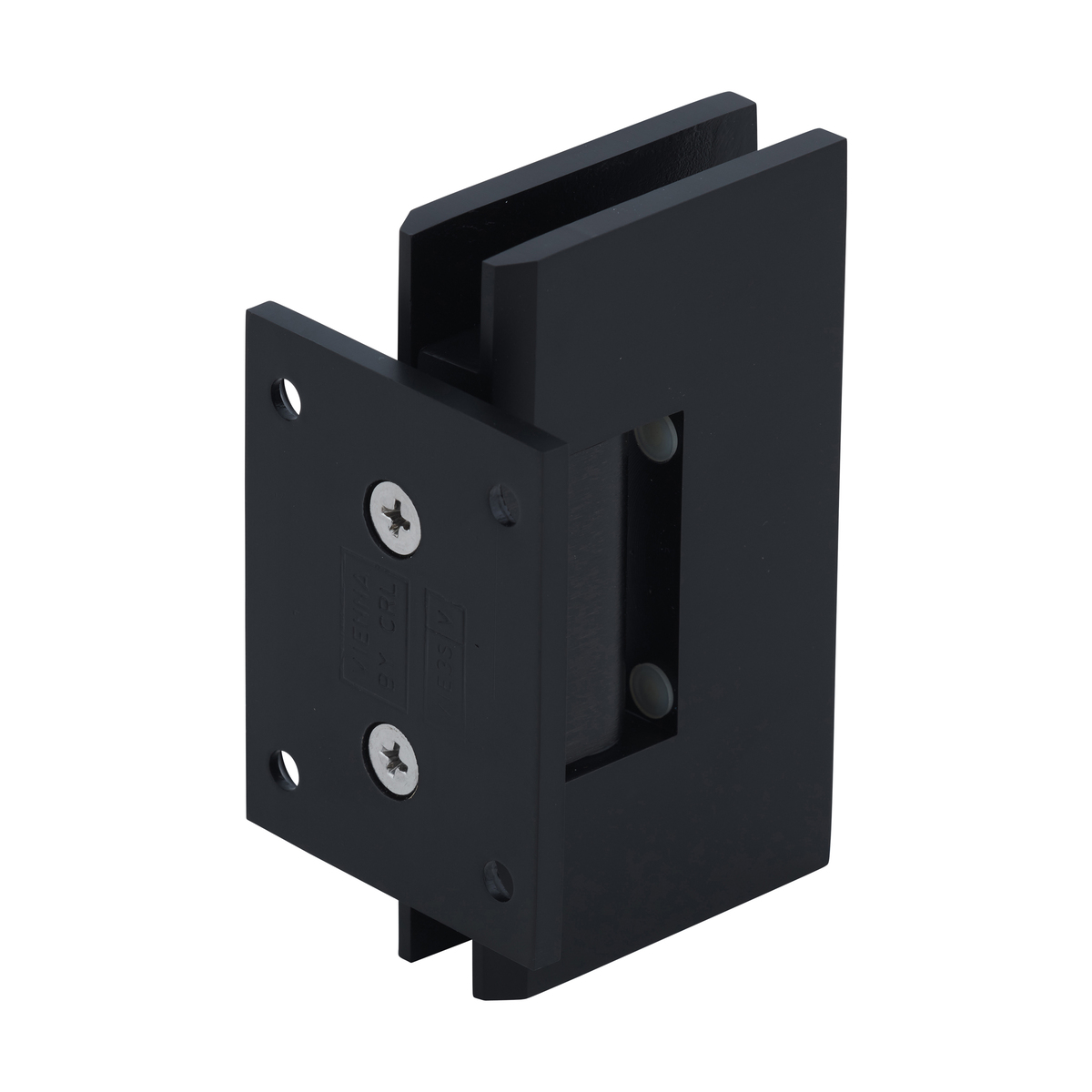

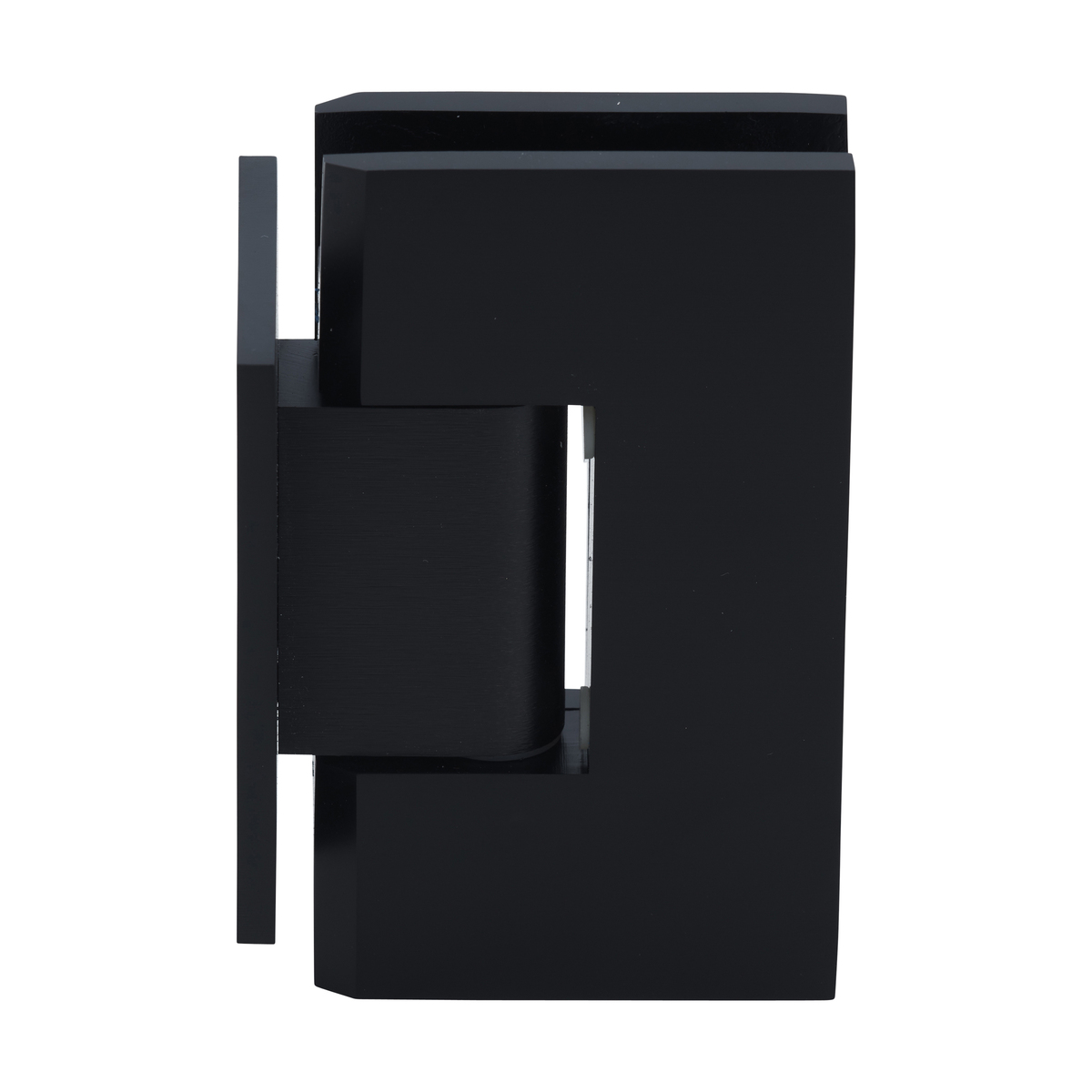

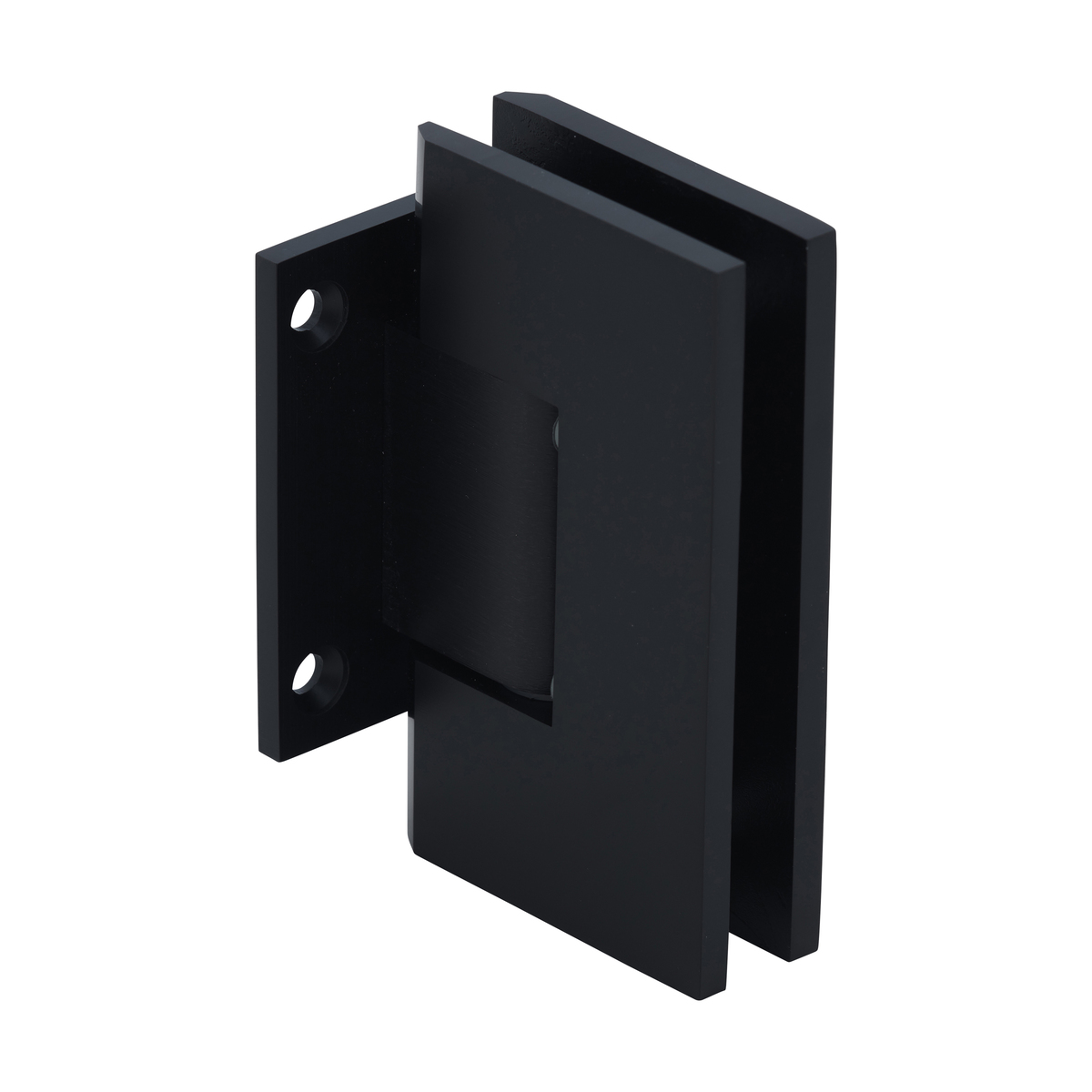

CRL V1E0740RB Oil Rubbed Bronze Vienna 074 Wall Mount Short Back Plate Hinge

CRL V1E0740RB Oil Rubbed Bronze Vienna 074 Wall Mount Short Back Plate Hinge

C.R. Laurence V1E0740RB Oil Rubbed Bronze Vienna 074 Series Wall Mount Short Back Plate Hinge is expertly designed for accommodating 3/8" to 1/2" (10 mm to 12 mm) tempered glass, making it an ideal choice for heavier shower doors. Crafted from solid brass, this hinge not only provides durability but also showcases an elegant oil rubbed bronze finish, adding a touch of sophistication to any bathroom. This hinge features a wall mount short back plate that effectively supports wider doors, holding up to 100 lbs. (45 kg) with two hinges for 3/8" glass and up to 130 lbs. (59 kg) when using three hinges. The standard reversible pivot pin allows for 90-degree and 85-degree openings, enhancing versatility in installation. Additionally, custom pivot pins can be specified for unique installation angles, ensuring a perfect fit in every scenario. Included with the hinge are necessary gaskets, screws, and glass fabrication dimensions, simplifying the installation process. With a self-centering feature and a 3-year warranty, the Vienna hinge is a reliable and stylish choice for residential and hotel shower applications. Experience the blend of strength and aesthetics with the C.R. Laurence Vienna hinge, where functionality meets modern design.

Oil Rubbed Bronze Vienna 074 Series Wall Mount Short Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Wall Mount Short Back Plate
• Use Monolithic Tempered Glass

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.


STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm).

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm).

Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).

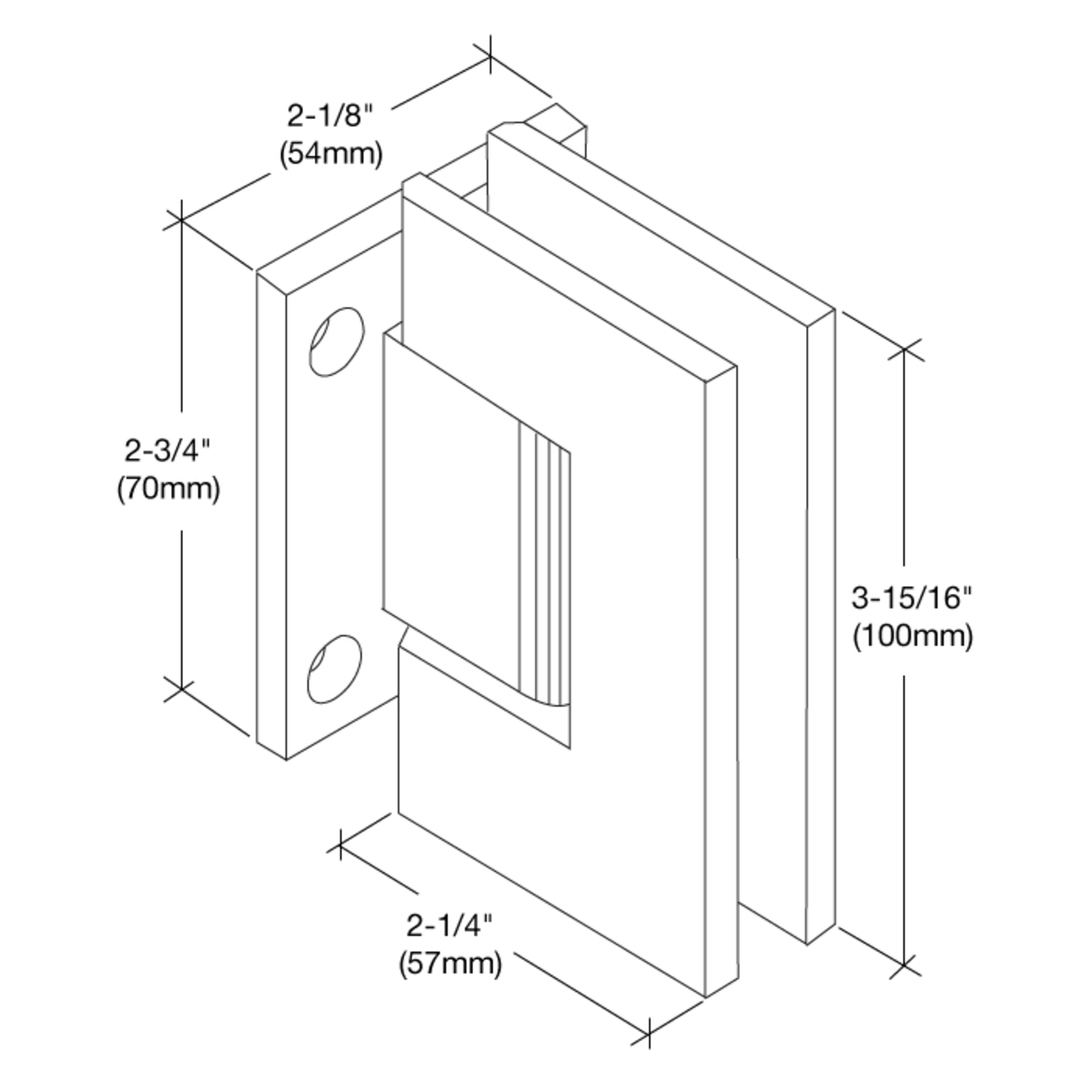

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
