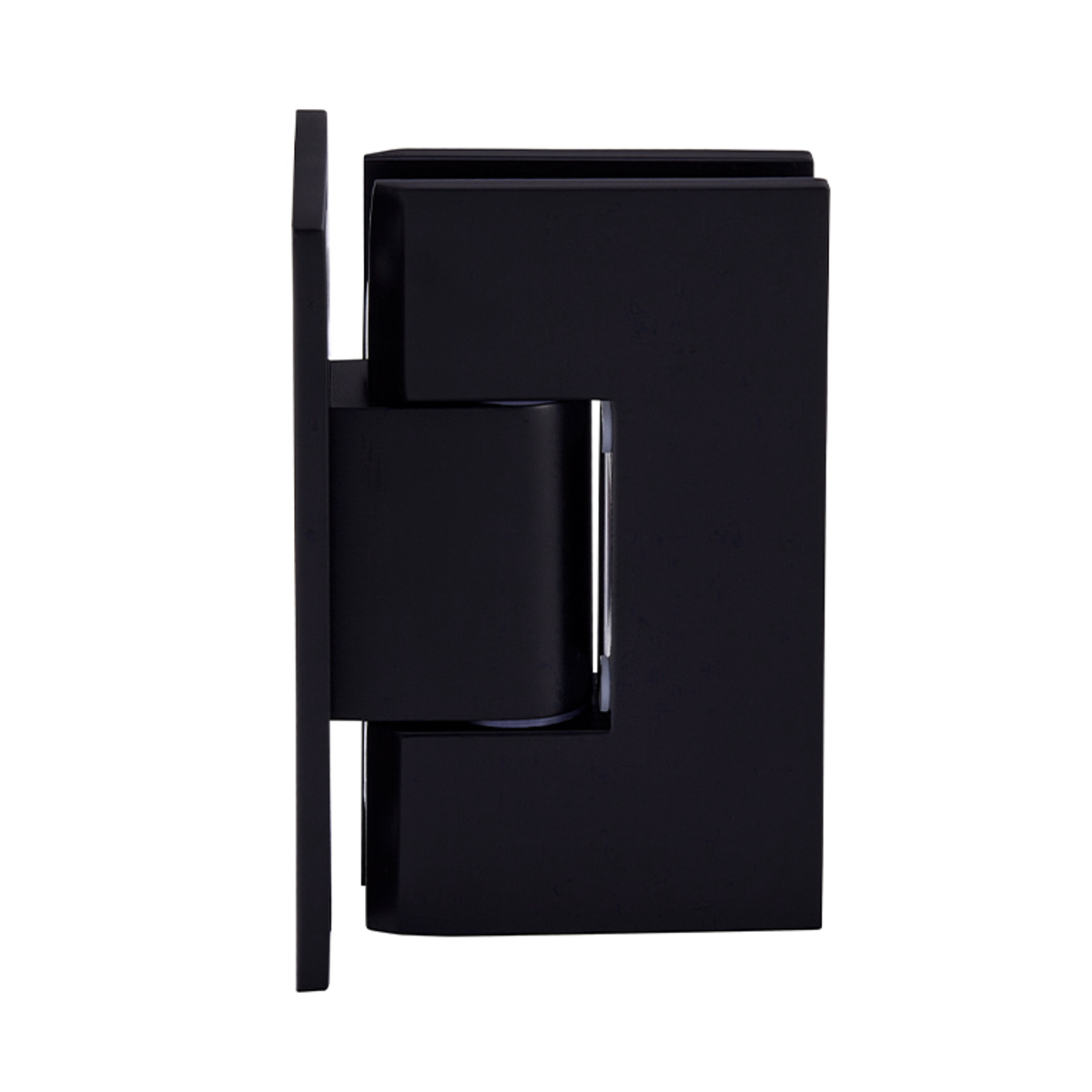

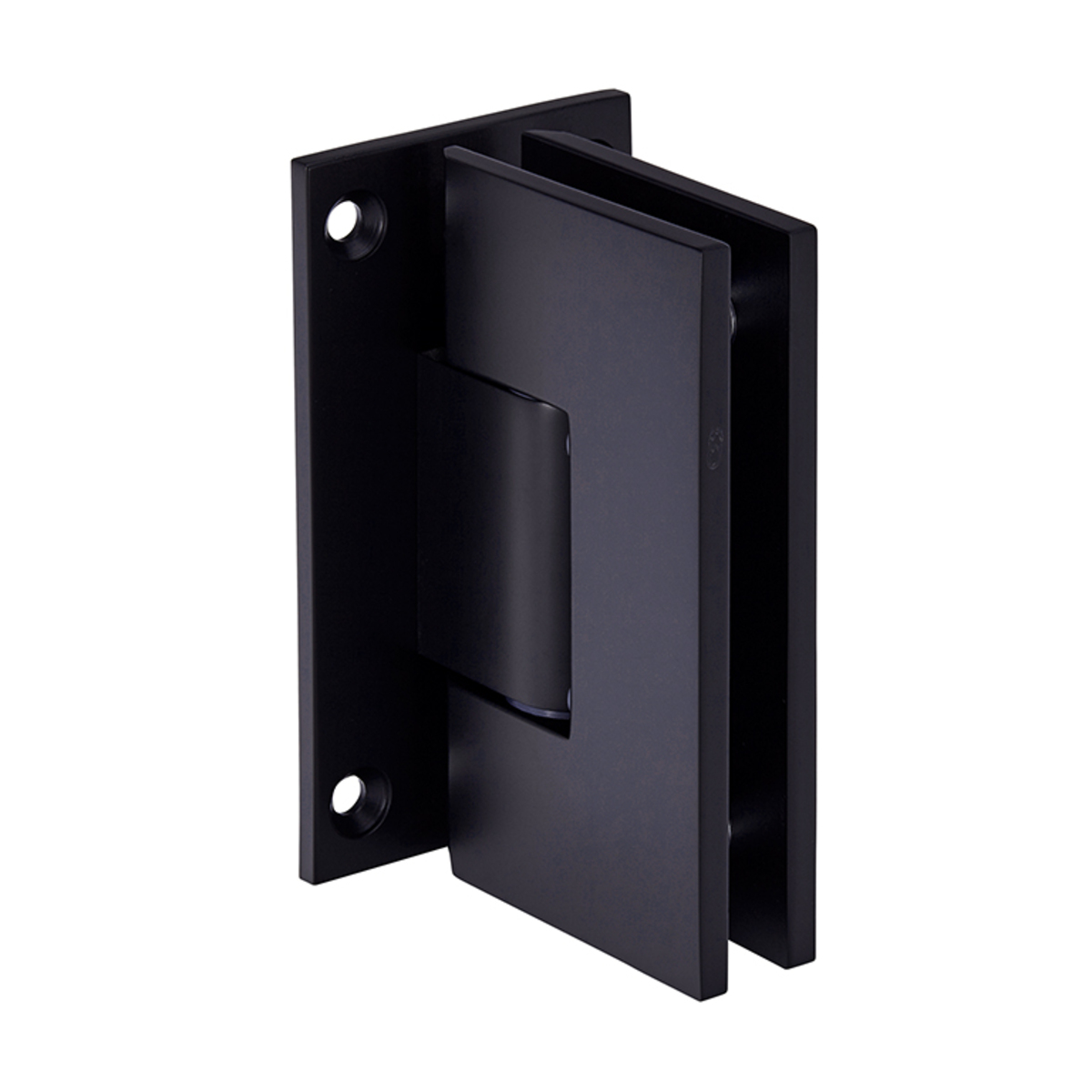

CRL V1E3370RB Vienna 337 Series Oil Rubbed Bronze Adjustable Wall Mount Hinge

CRL V1E3370RB Vienna 337 Series Oil Rubbed Bronze Adjustable Wall Mount Hinge

C.R. Laurence V1E3370RB Oil Rubbed Bronze Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge offers an innovative solution for modern shower door installations. This adjustable hinge allows for angle adjustments up to 90 degrees without the need to remove the door, making installation and customization straightforward. Simply loosen the Allen set screws to achieve the desired closed position, and the hinge will self-center when tightened, ensuring a perfect fit. Crafted from solid brass and available in an elegant oil-rubbed bronze finish, this hinge complements a variety of design styles while providing durability. It is designed for use with 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass and can support doors weighing up to 110 lbs. (50 kg) with two hinges and up to 140 lbs. (63 kg) with three. The hinge swings 90 degrees in and out, and the reversible pivot pin allows for easy customization for tighter closures, accommodating unique installation angles. Included with the hinge are gaskets, screws, and glass fabrication dimensions, ensuring you have everything needed for a seamless installation. With a three-year warranty, the C.R. Laurence Vienna hinge is a reliable choice for both residential and hospitality applications.

Oil Rubbed Bronze Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• 3 Year Warranty

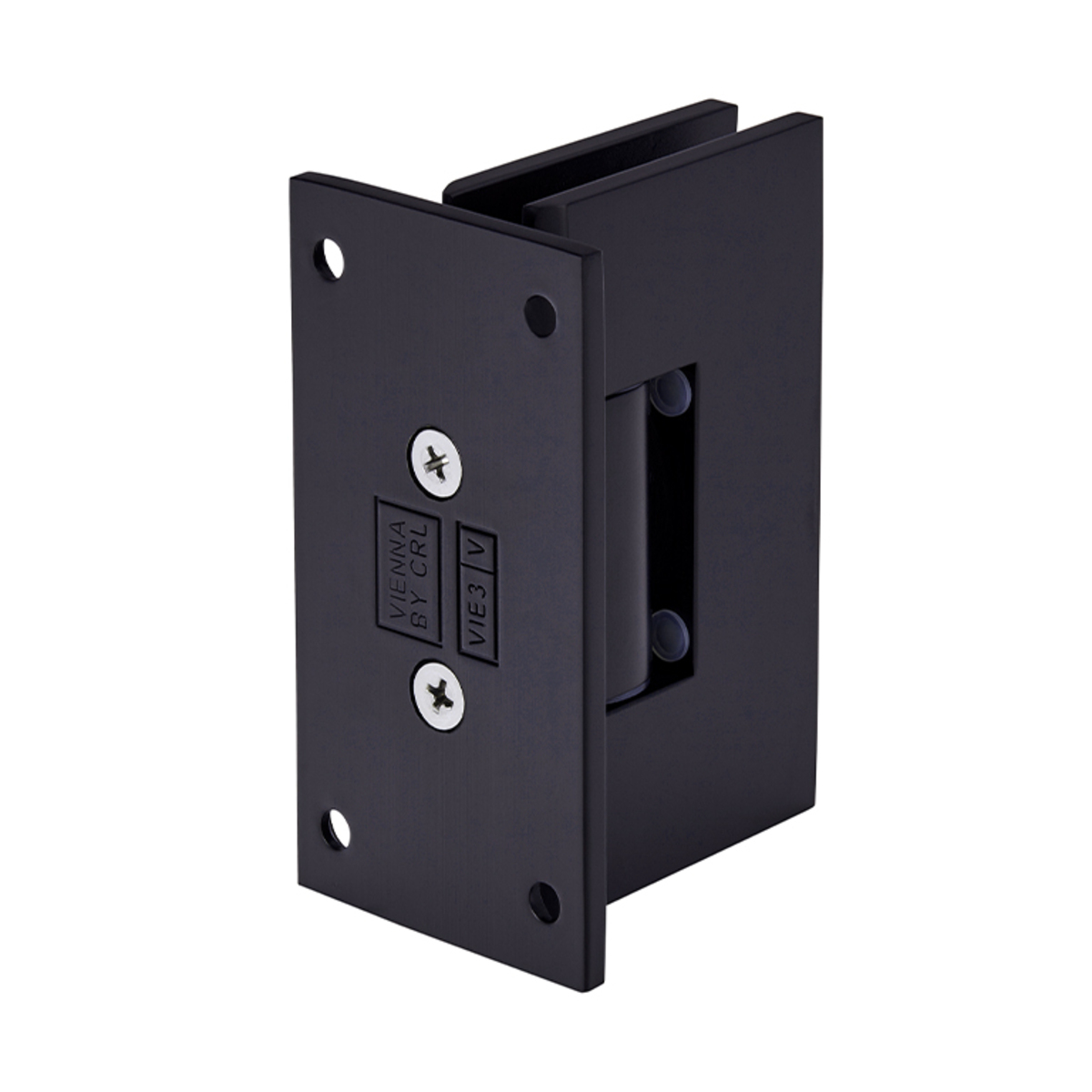

• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

The CRL Adjustable Vienna Series has taken our popular Vienna Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degrees) is done after the door is hung. Simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degrees inward and 90 degrees outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degrees inside the shower area, thus having the door close snugly against the jamb.


STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
