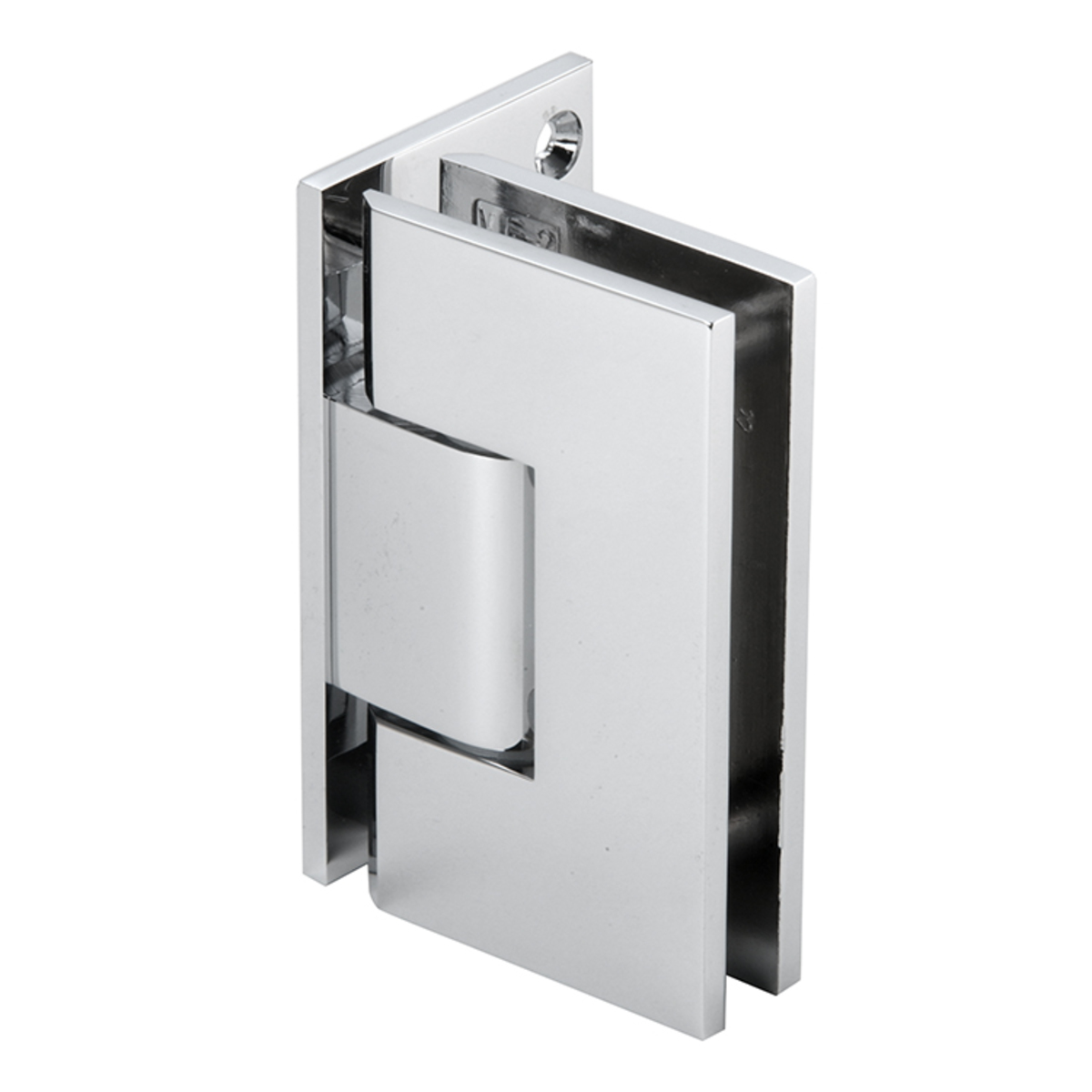

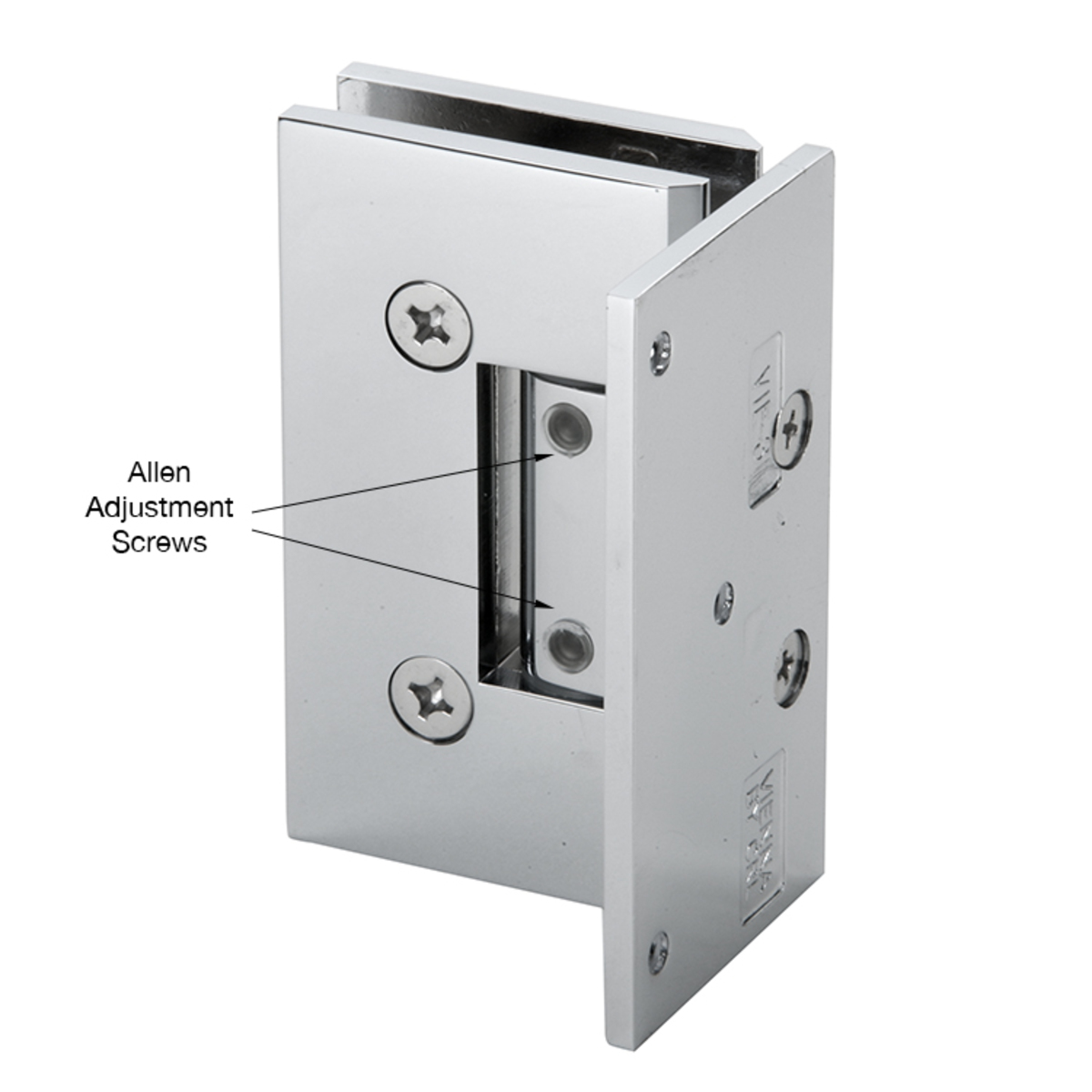

C.R. Laurence V1E344CH Polished Chrome Vienna Adjustable Wall Mount Offset Back Plate Hinge offers unparalleled versatility and elegance for your shower door installations. Designed to adjust smoothly up to 90 degrees, this hinge allows for precise positioning, ensuring a snug close when paired with a strike jamb. Simply loosen the Allen screws on the rear, set the desired angle, and re-tighten for secure functionality. Crafted from durable brass and finished in striking polished chrome, the hinge not only provides strength but also enhances the aesthetic of any contemporary bathroom. With an offset wall mount plate, it creates a clean site line, elevating the overall design of your space. This hinge accommodates glass thicknesses from 3/8 inch to 1/2 inch, supporting doors weighing up to 100 lbs with two hinges or 130 lbs with three hinges, making it suitable for various custom applications including corner, niche, and bathtub enclosures. The self-centering feature guarantees smooth operation every time, while the squared design style complements modern decor. Ideal for both residential and hotel use, the CRL shower door hinge is a reliable choice for building professionals and discerning homeowners alike. Ensure optimal performance by using the included template for installation.
Polished Chrome Vienna Adjustable Wall Mount Offset Back Plate Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: Yes
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Squared
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Polished Chrome
Glazing Thickness: 3/8 in. to 1/2 in. (10 mm to 12 mm)

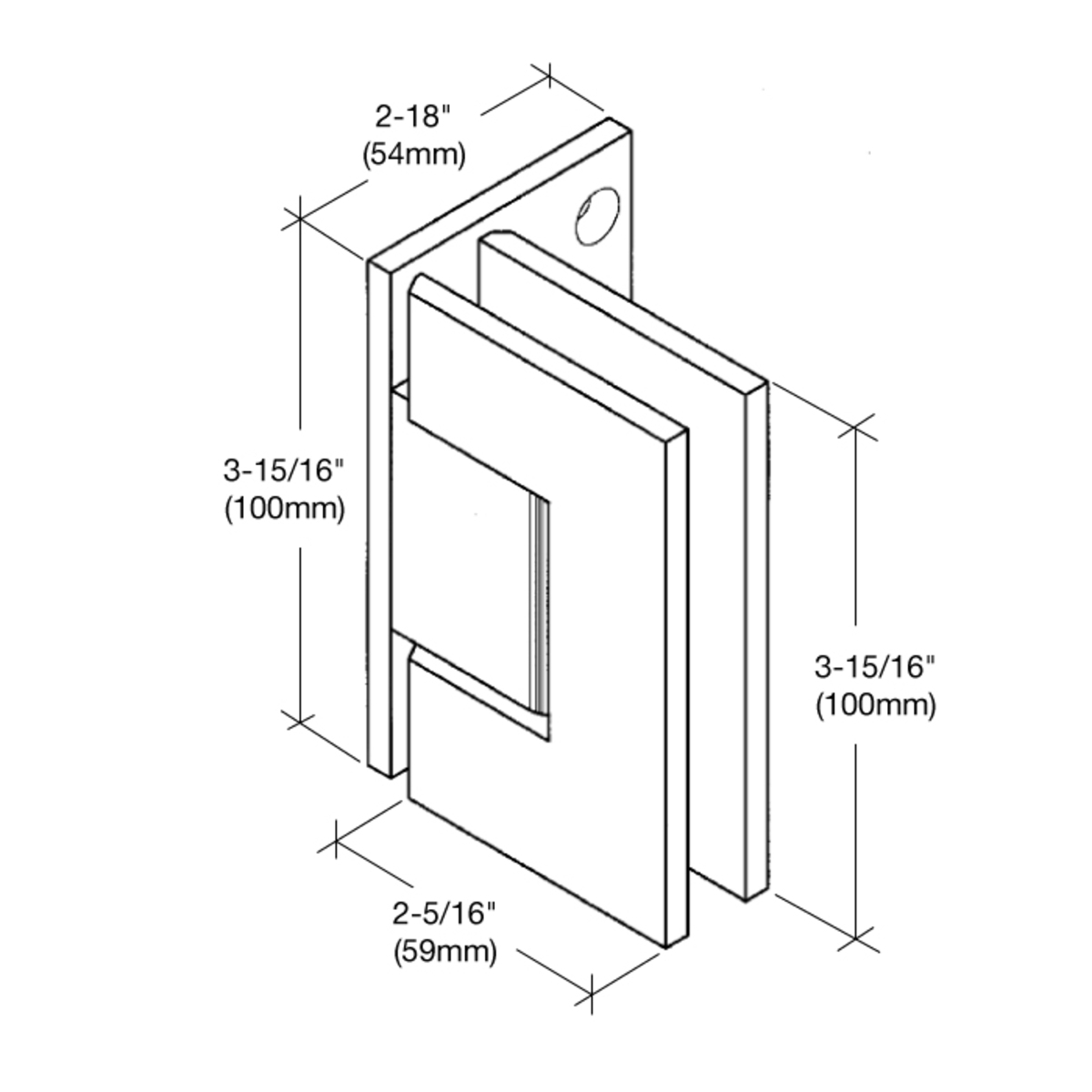

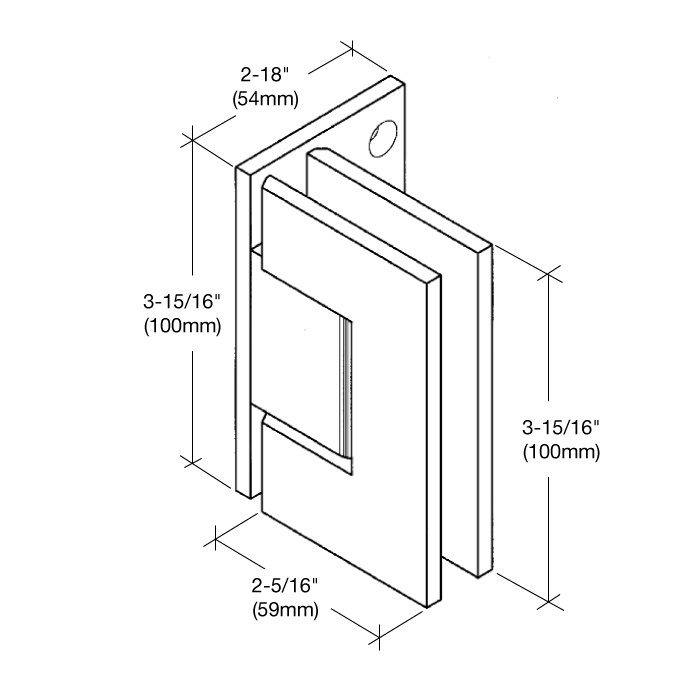

Height: 3-15/16 in. (100 mm)
Material: Brass
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges: 100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges: 130 lbs. (59 kg)
Maximum Door Width - 1/2 Glass: 32 in. (813 mm)
Maximum Door Width - 3/8 Glass: 34 in. (864 mm)
Maximum Door Width -1/2 Glass: 32
Mounting Type: Wall Mount
Opening Style: Swing(side)
Pre- Applied Tape: No
Self- Centering: Yes
Series: Vienna
Shipping Limitations: None
Width: 2-5/16 in. (59 mm)
