CRL V1E537MBL Matte Black Vienna 537 Series 5 Wall Mount Full Back Plate Hinge

CRL V1E537MBL Matte Black Vienna 537 Series 5 Wall Mount Full Back Plate Hinge

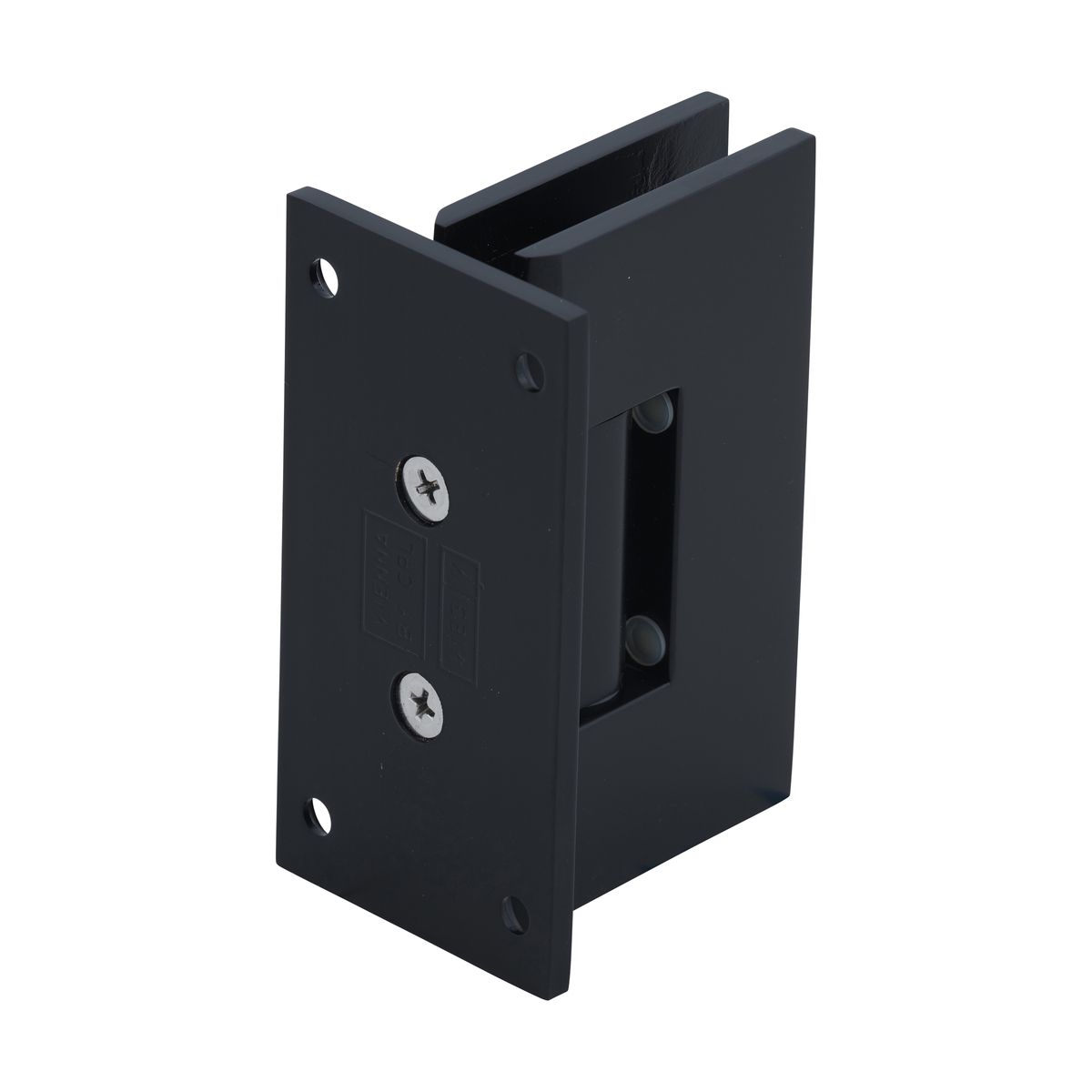

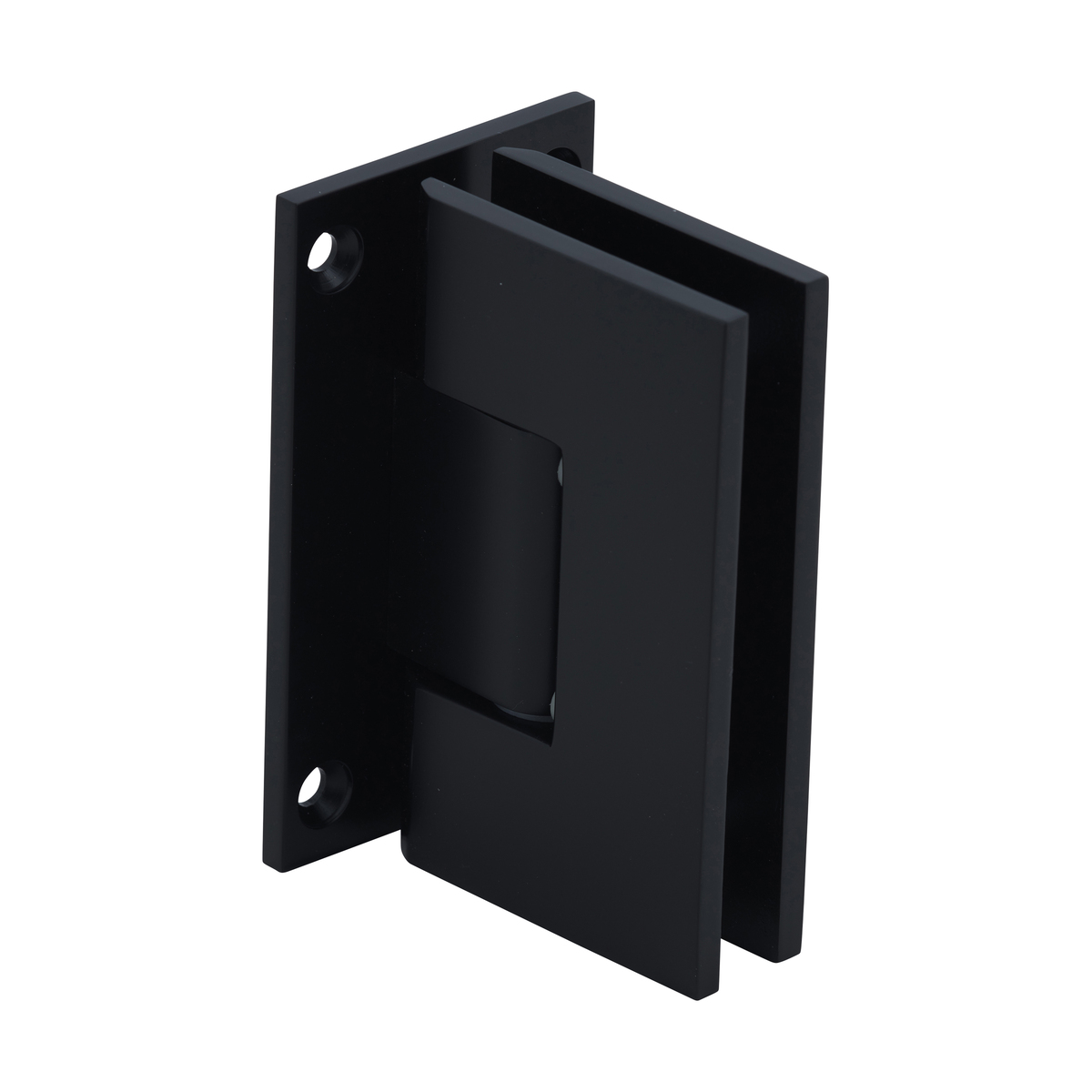

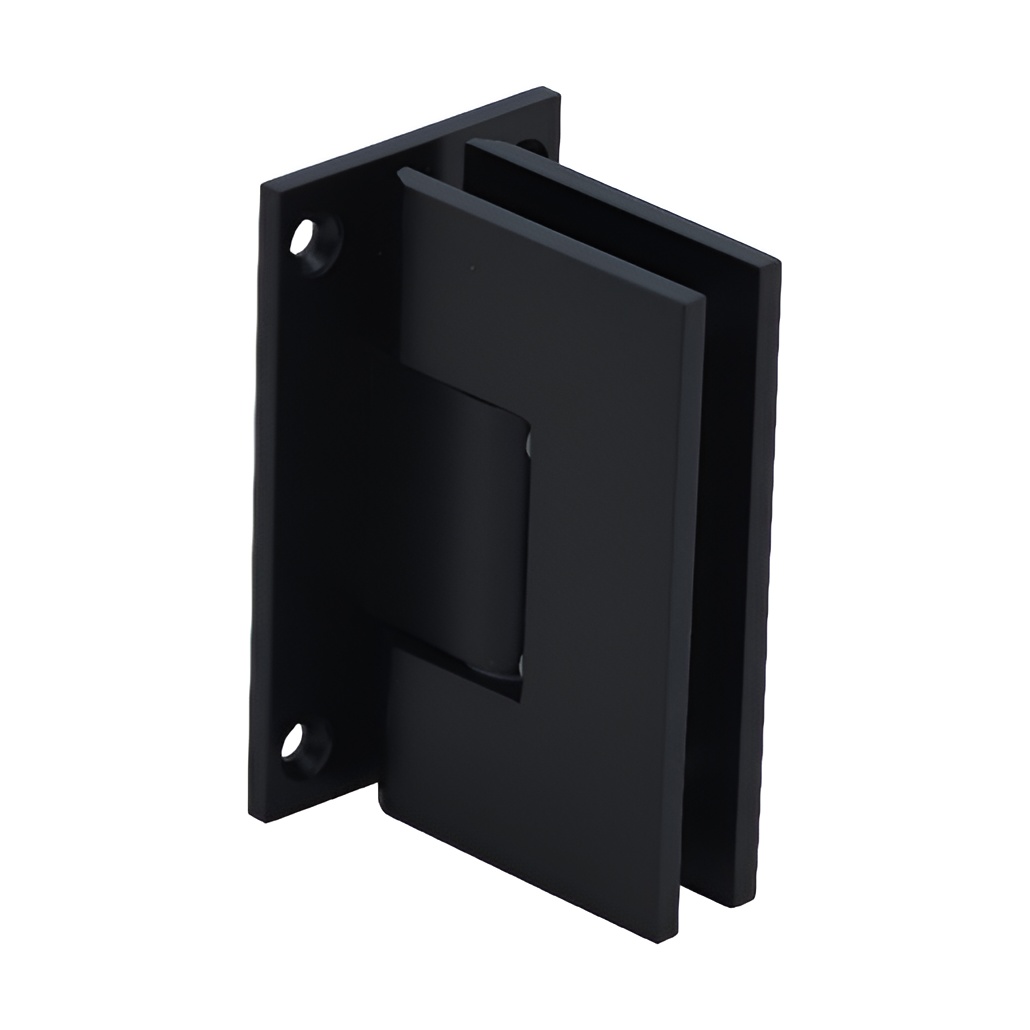

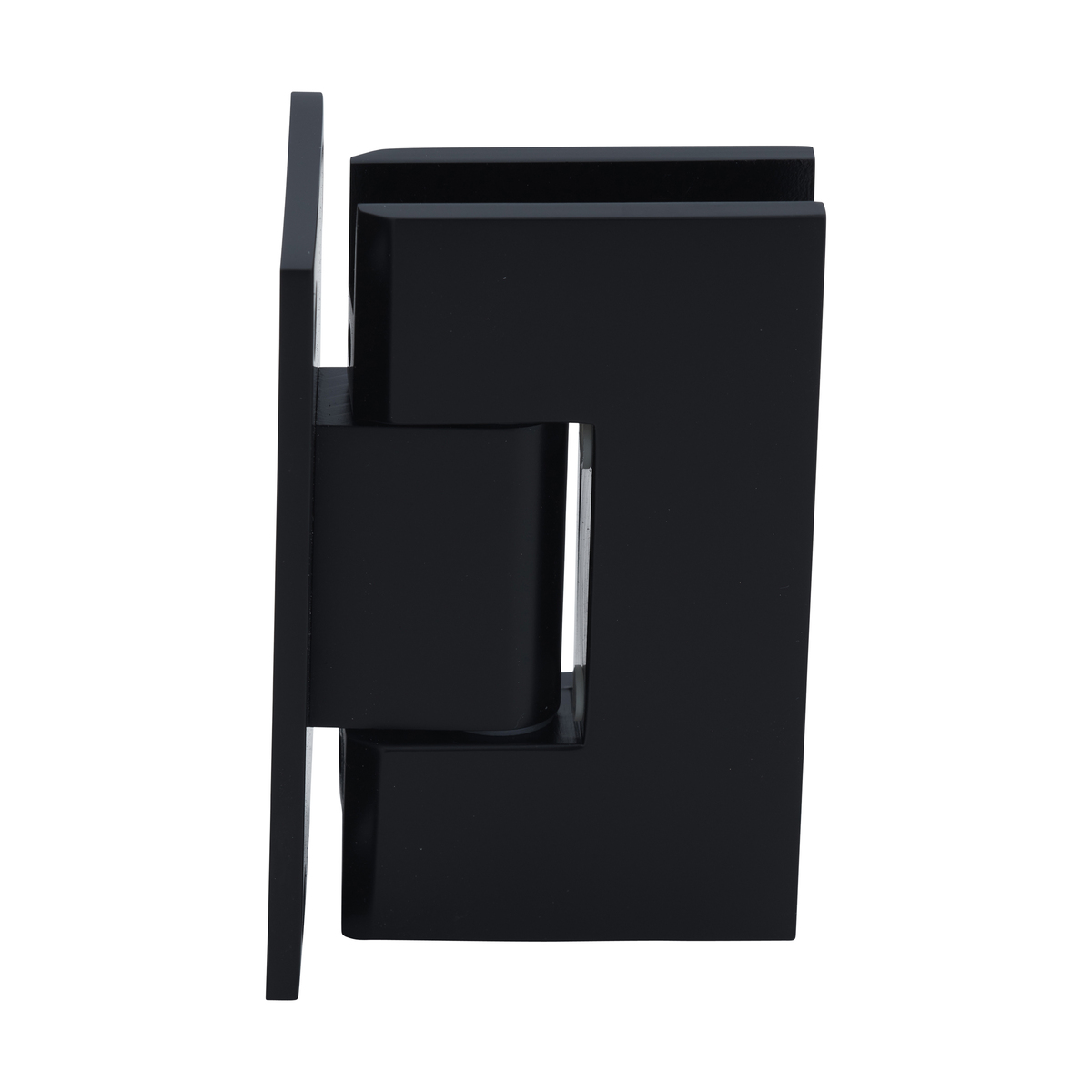

C.R. Laurence V1E537MBL Matte Black Vienna 537 Series 5 Degree Pre-Set Wall Mount Full Back Plate Hinge is expertly designed to accommodate 3/8" to 1/2" (10 to 12 mm) tempered safety glass. This hinge not only provides superior support for wider, heavier shower doors but also features a self-centering design with a reversible 5-degree pivot pin, ensuring a tight closure into the shower interior. Constructed from solid brass, the hinge exhibits exceptional durability and is available in an array of attractive finishes, including the striking matte black. With the ability to support up to 110 lbs. (50 kg) using two hinges or up to 140 lbs. (63 kg) with three, it is perfect for doors up to 36 inches (914 mm) wide. The Vienna hinge also offers versatile installation options, allowing you to use it with CRL’s "mouse-ears" cut-outs or remove the steel pins for competitive rectangular cut-outs. Additionally, custom pivot pins can be requested for unique wall angles. Each hinge comes with gaskets, screws, and detailed glass fabrication dimensions, all backed by a 3-year warranty. For a sophisticated and reliable solution in your shower enclosure, choose the C.R. Laurence Vienna Hinge.

Matte Black Vienna 537 Series 5 Degree Pre-Set Wall Mount Full Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• 3 Year Warranty
• 5 Degree Pre-Set Model (Factory Set for 5 Degree Tighter Closure Into Shower Interior)
• Use Monolithic Tempered Glass

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.


STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Resources

• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide

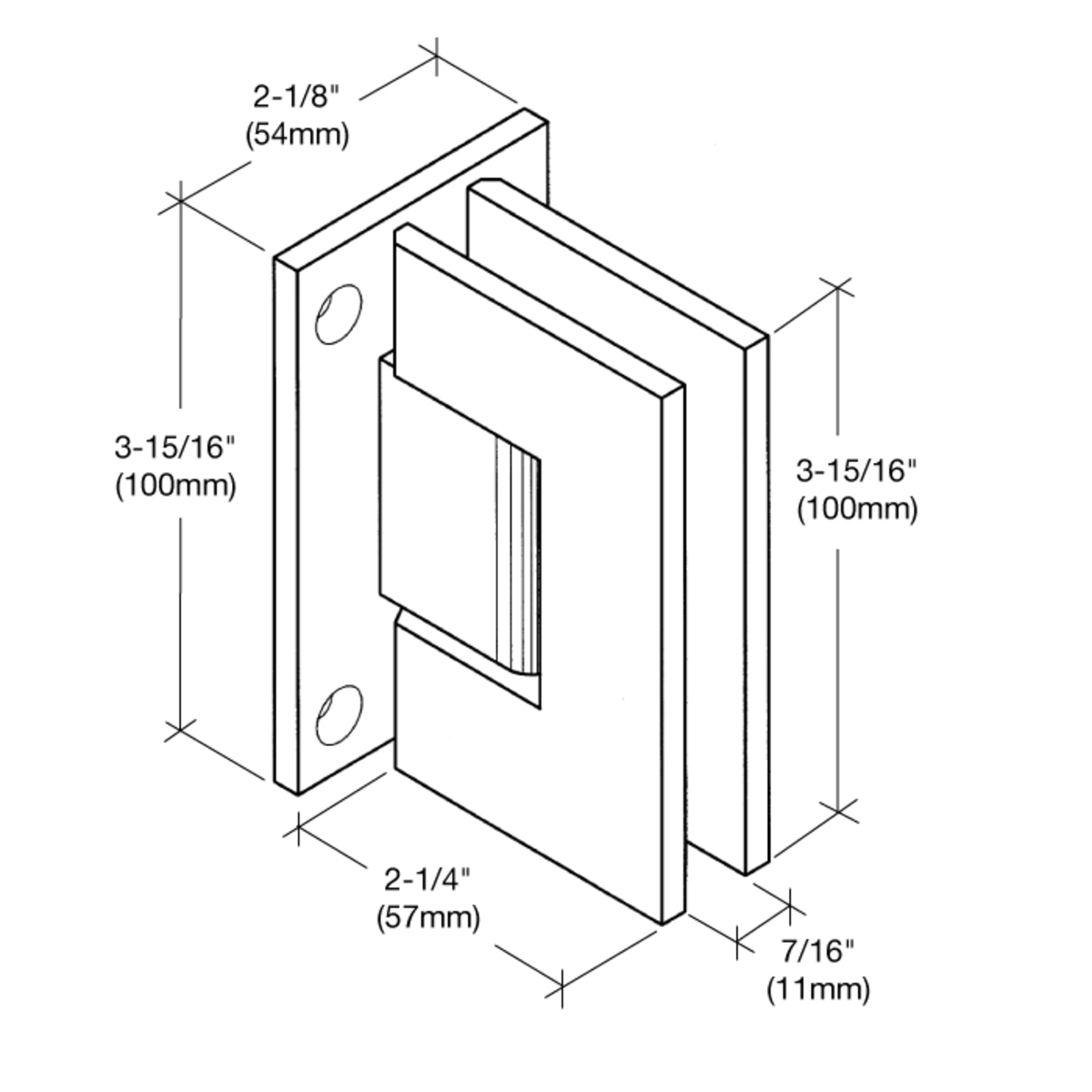

• V1E537 Detailed CAD Drawings.dwg
