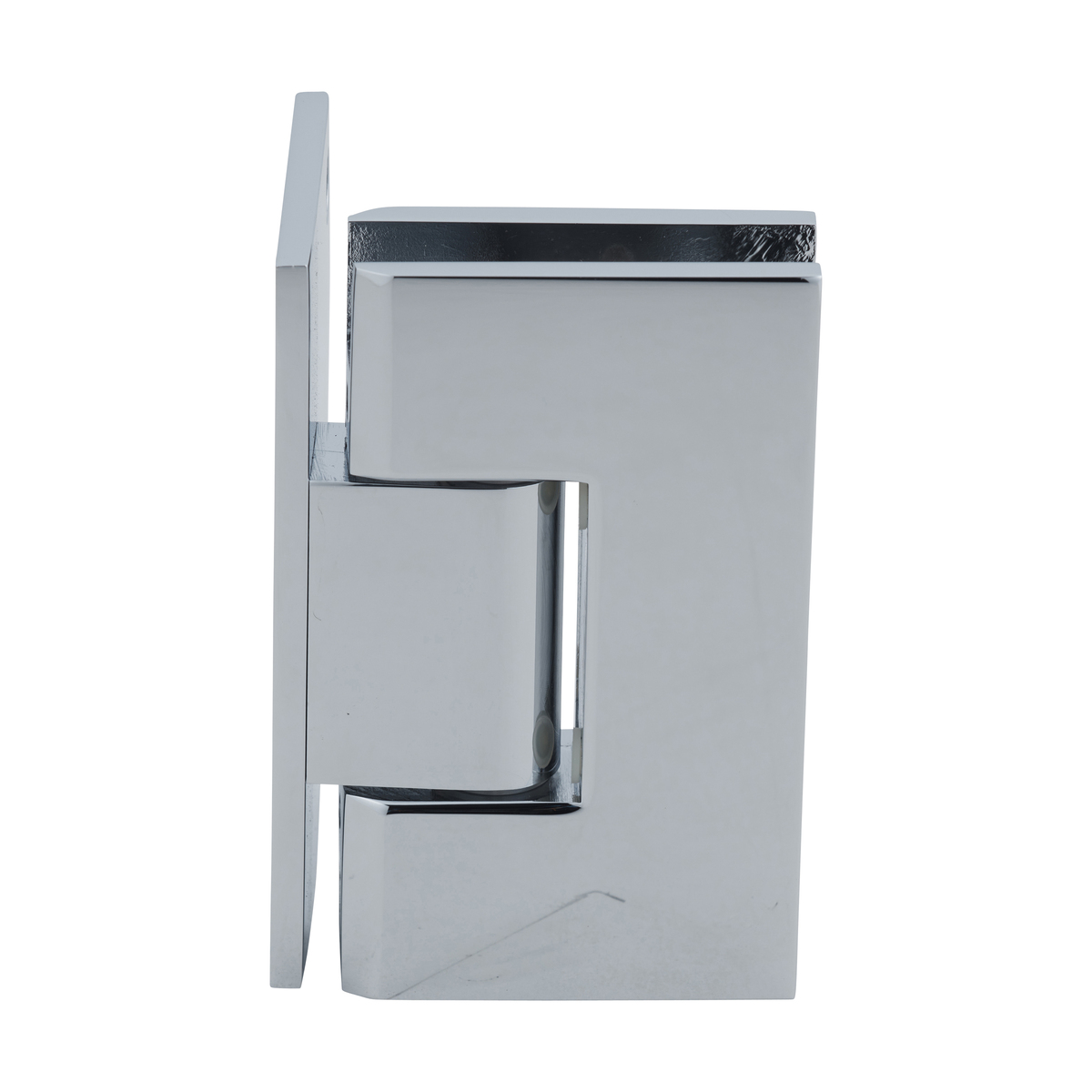

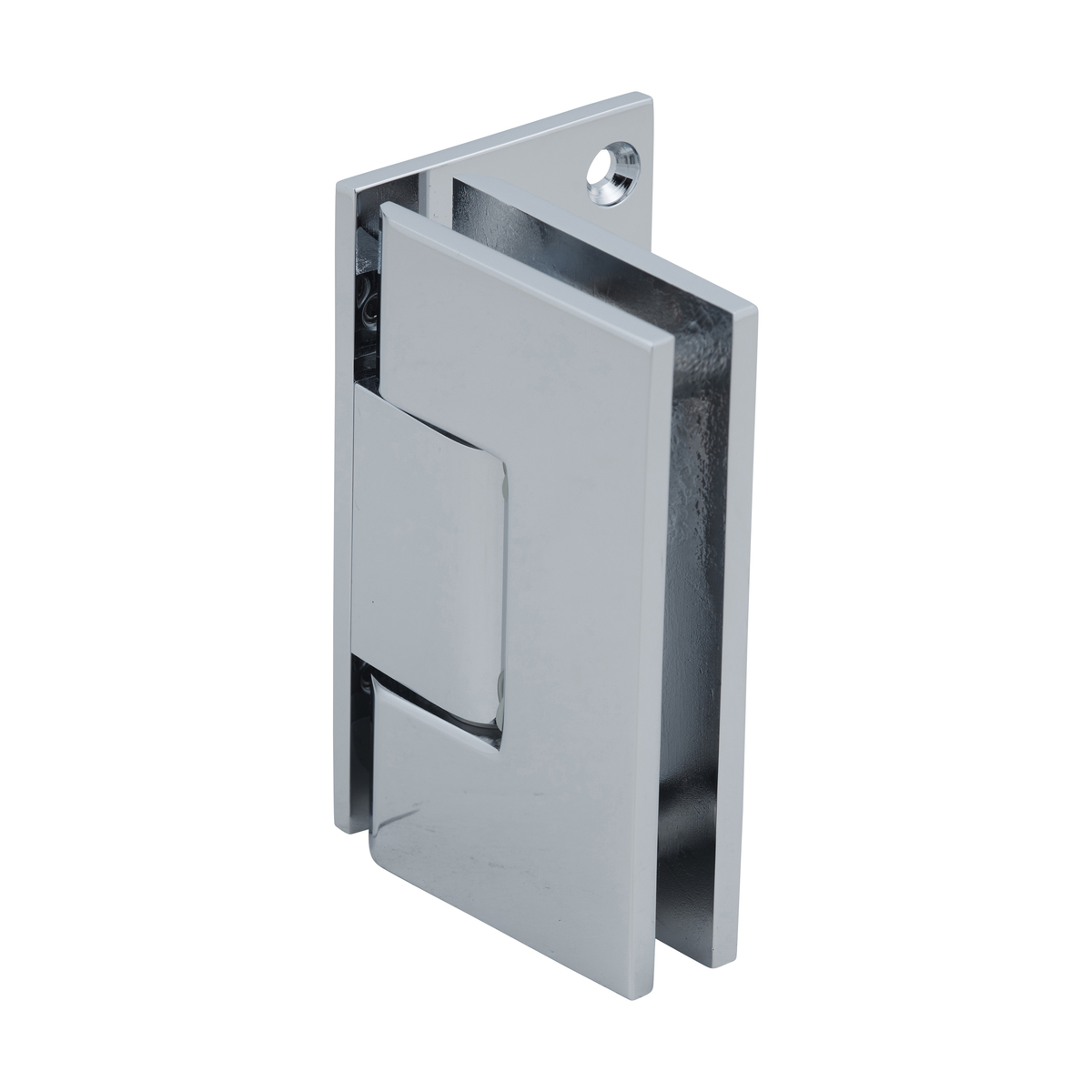

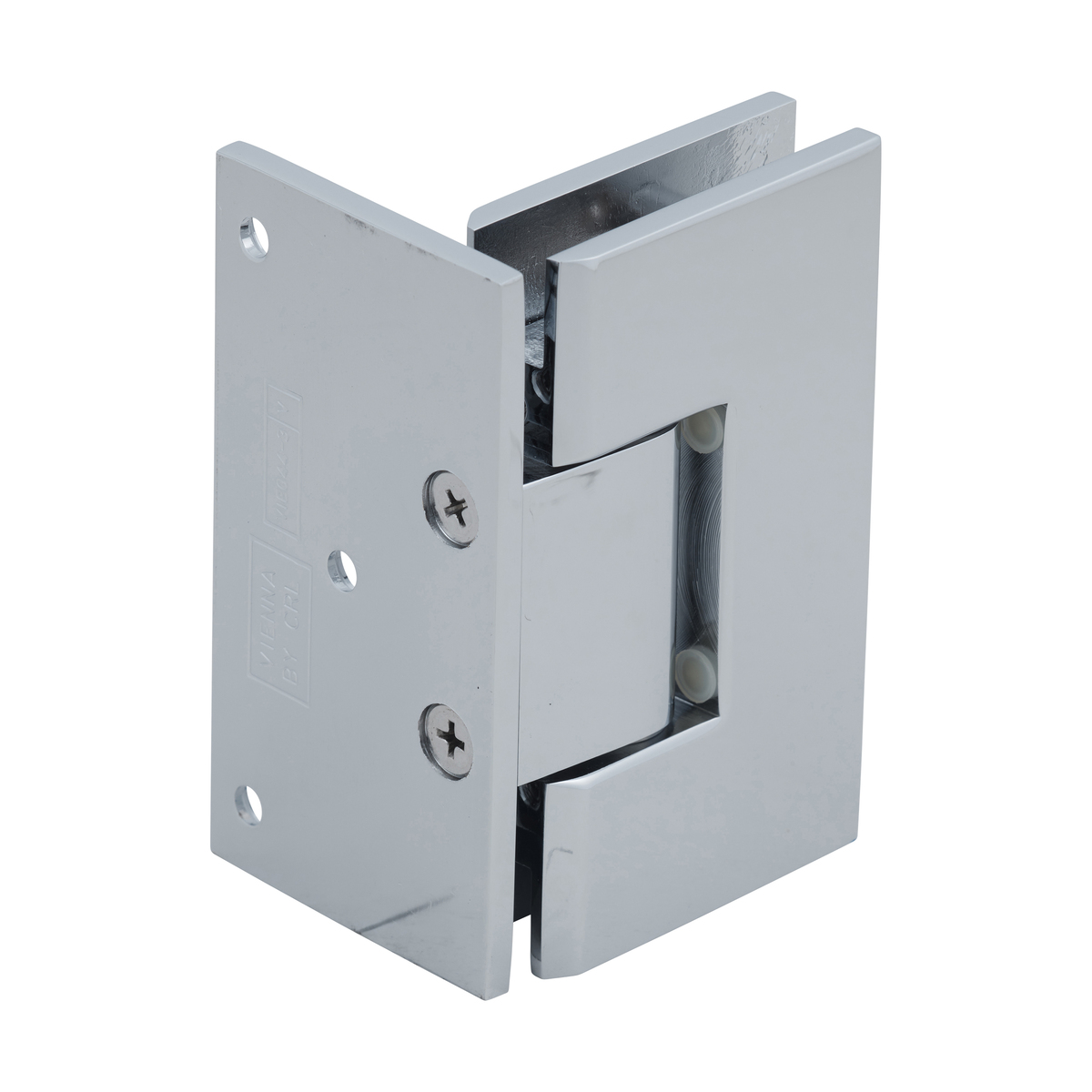

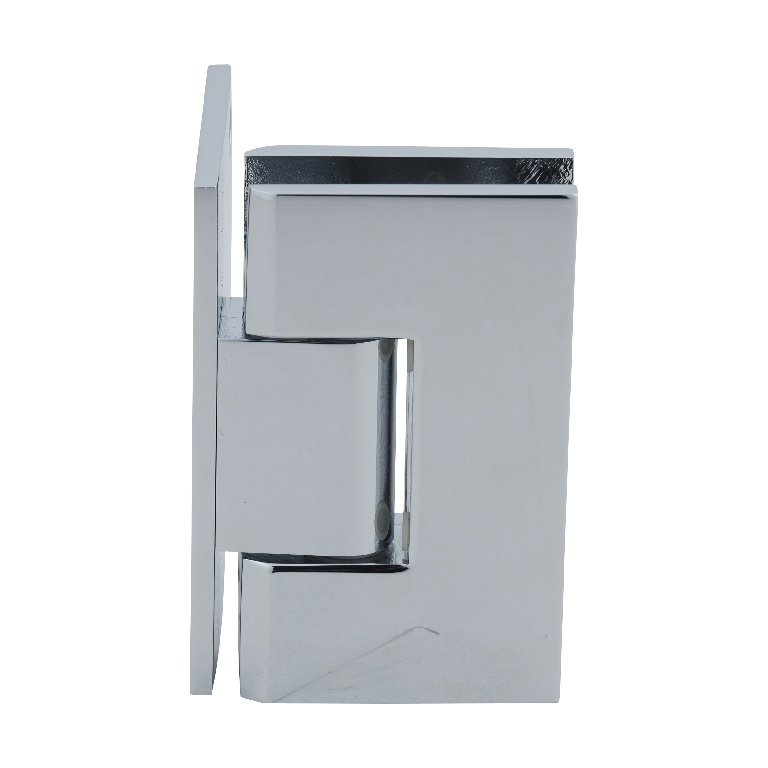

CRL V1E544CH Polished Chrome Vienna 044 Series 5 Wall Mount Offset Back Plate Hinge

CRL V1E544CH Polished Chrome Vienna 044 Series 5 Wall Mount Offset Back Plate Hinge

C.R. Laurence V1E544CH Polished Chrome Vienna 044 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinge is expertly engineered to support wider and heavier glass doors, making it an ideal choice for modern shower installations. Accommodating 3/8" to 1/2" (10 to 12 mm) tempered glass, this hinge provides the strength and stability necessary for door weights up to 130 lbs. (59 kg) when using three hinges with 3/8" glass. Designed with versatility in mind, the Vienna hinge features a 5-degree pre-set model for a tighter closure into the shower interior, ensuring a snug fit that enhances water retention. The solid brass construction not only adds durability but also complements any luxurious space with its polished chrome finish. Included are gaskets, screws, and glass fabrication dimensions for easy installation. The hinge offers a self-centering feature when within 15 degrees of the closed position, ensuring smooth operation every time. Custom pivot pins can also be requested for off-angle installations, adding further flexibility to your design. With a three-year warranty, this hinge is a reliable choice for residential and hotel shower applications. Elevate your bathroom's functionality and aesthetic with the C.R. Laurence Vienna Hinge.

Polished Chrome Vienna 044 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 3 Year Warranty
• 5 Degree Pre-Set Model (Factory Set for 5 Degree Tighter Closure Into Shower Interior)
• Use Monolithic Tempered Glass

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.


STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm).

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm).

Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).

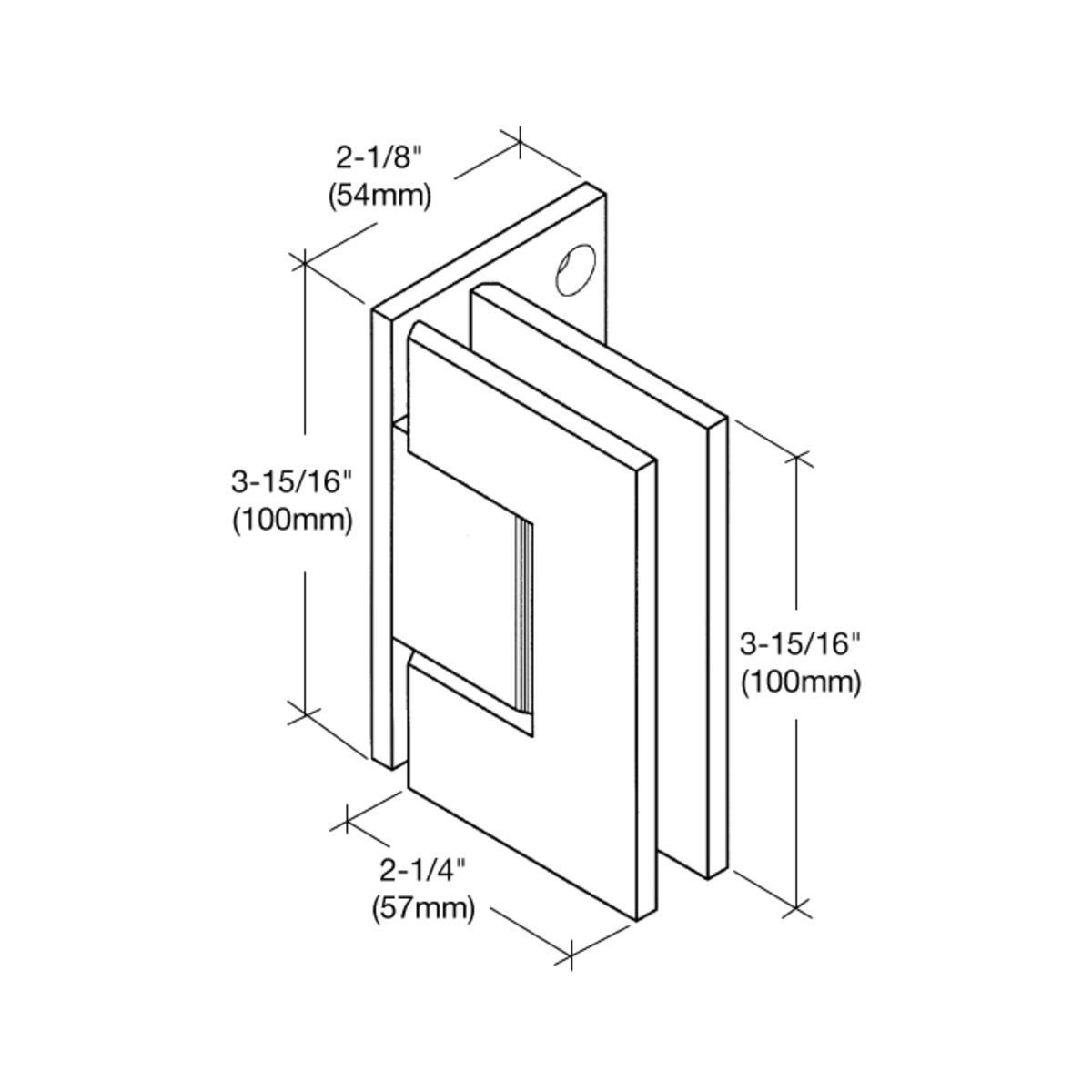

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
