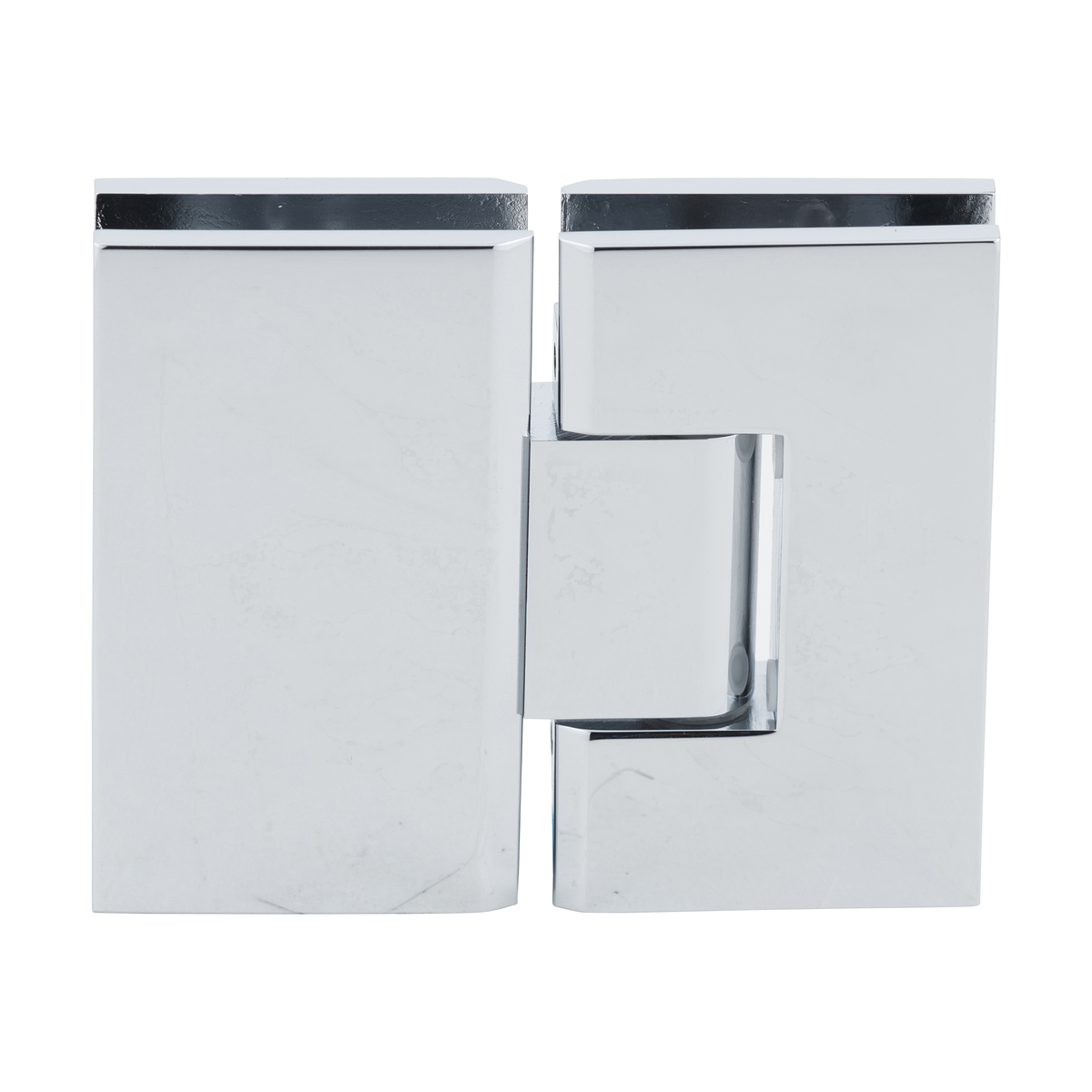

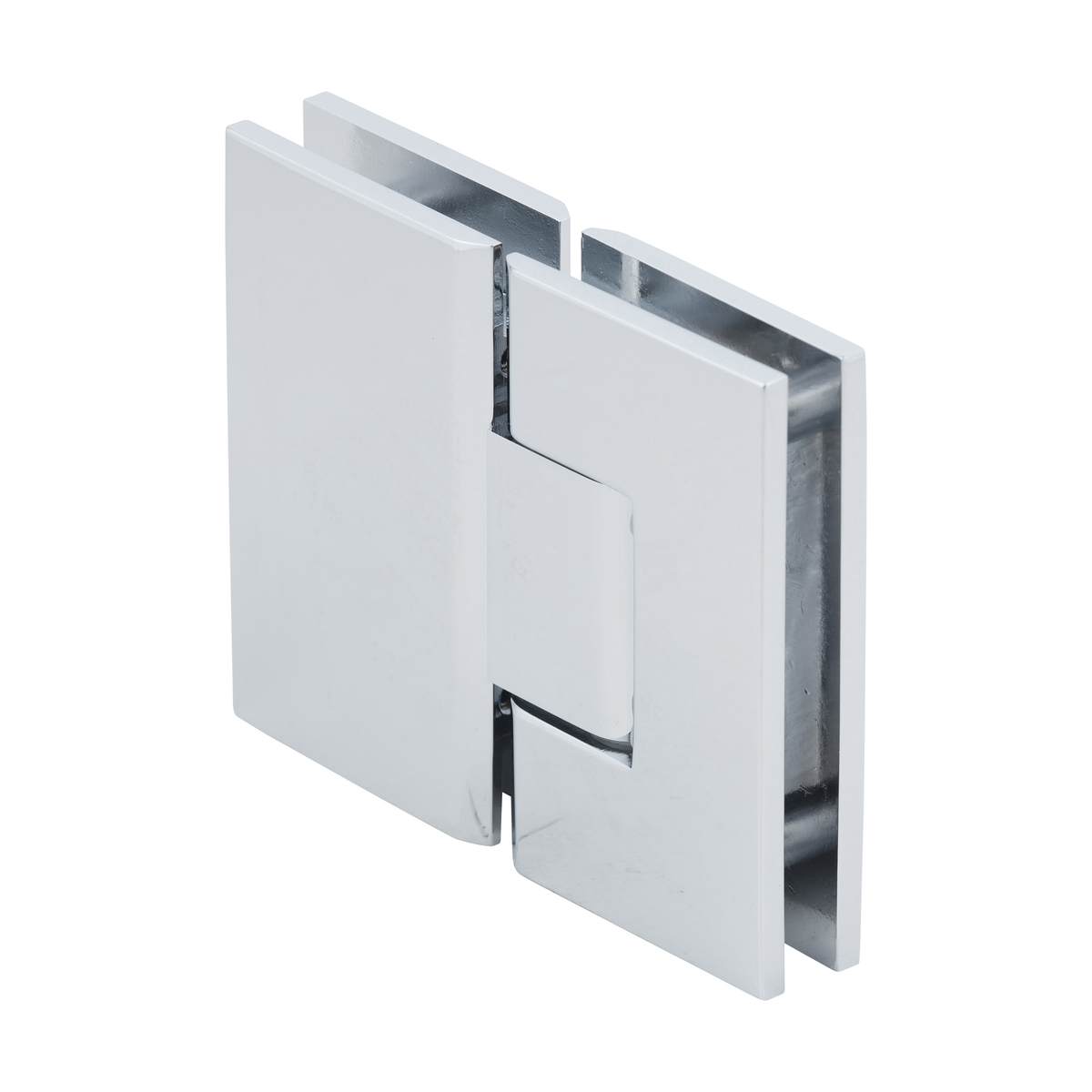

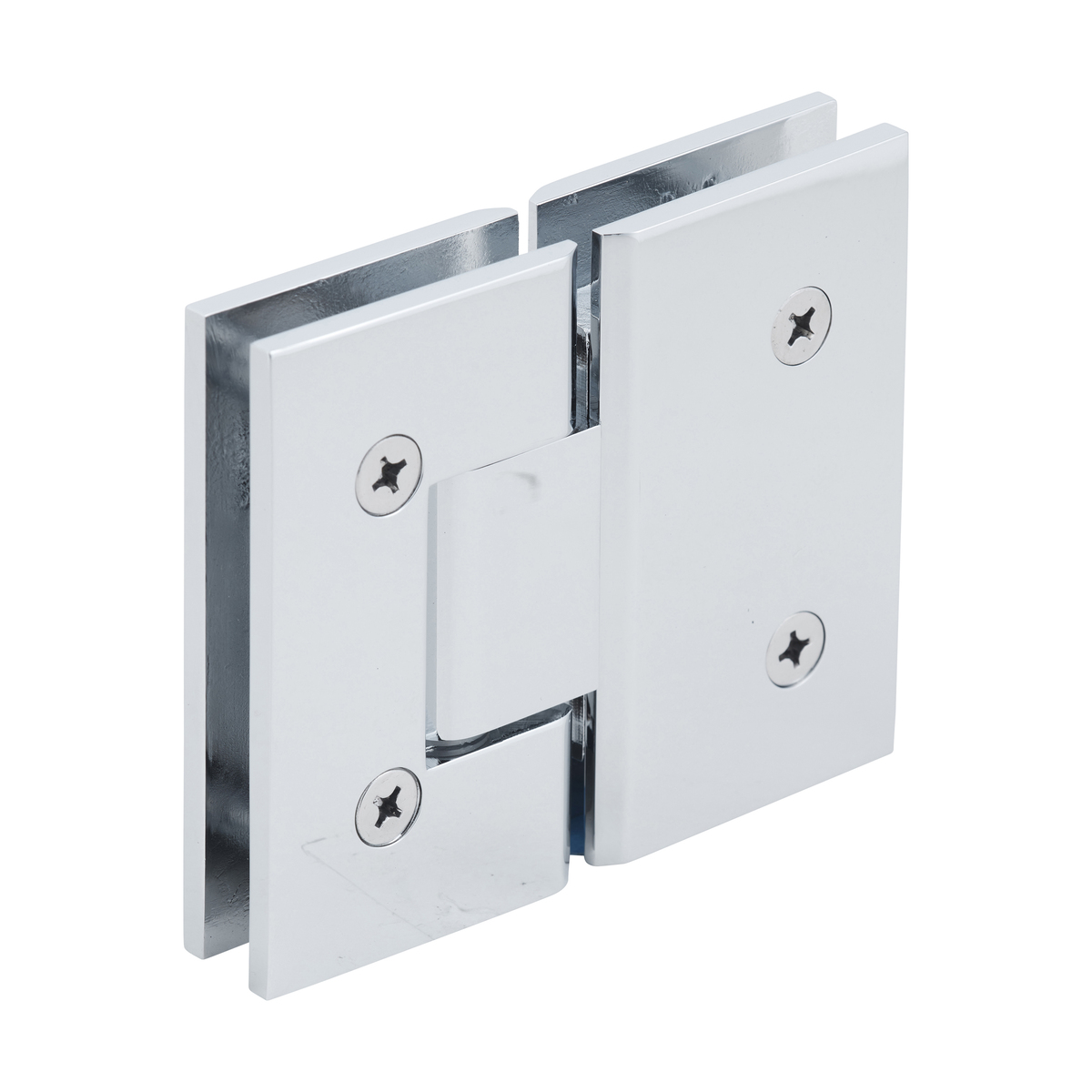

CRL V1E780CH Chrome Vienna 180 Glass-to-Glass Positive Close HingeC.R. Laurence V1E780CH Chrome Vienna 180 Degree Glass-to-Glass Positive Close Hinge delivers exceptional performance and style for modern shower door installations. Engineered with a special grooved internal pivot pin, this hinge ensures a precise and positive closing action, setting it apart from typical self-centering hinges. Ideal for monolithic tempered glass, it accommodates glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm) and supports substantial door weights-up to 110 lbs. (50 kg) with two hinges or 140 lbs. (63 kg) with three. The hinge allows for a full 90-degree swing in both inwards and outwards directions, making it versatile for various bathroom layouts. With a maximum door width of 36" (914 mm), it fits seamlessly into niche, bathtub, or tailor-made solutions. Stocked in polished chrome and three additional popular finishes, custom finishes are also available upon request, ensuring a perfect match for any décor. Included with the hinge are gaskets, screws, and glass fabrication dimensions, simplifying the installation process. Designed specifically for residential and hotel shower use, the V1E780CH hinge combines robust construction from solid brass with a sleek design, making it an ideal choice for discerning building professionals and homeowners alike.
Chrome Vienna 180 Degree Glass-to-Glass Positive Close Hinge
- Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
- Stocked in Wall Mount and 180 Degree Glass-to-Glass Models
- Stocked in Four Most Popular Finishes
- Other Finishes Available Upon Special Order
- Use Monolithic Tempered Glass
The Positive Close Vienna Hinge contains an internal grooved pivot pin that allows the door a precise and positive closing action. This is a different closing action than the typical self-centering Vienna Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
5 Degree Pre- Set: No
Adjustable: No
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Squared
Edge Profile: Square
Enclosure Type: Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Polished Chrome
Glass To Glass Angle: 180
Glazing Thickness: 3/8 in. to 1/2 in. (10 mm to 12 mm)
Height: 3-15/16 in. (100 mm)
Material: Brass
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges: 110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges: 140 lbs. (63.5 kg)
Maximum Door Width: 36 in. (914 mm)
Mounting Type: Glass To Glass
Opening Style: Swing(side)
Positive Close: Yes
Self- Centering: Yes
Series: Vienna
Shipping Limitations: None
Width - Door Portion: 2-1/4 in. (57 mm)
Width - Sidelite Portion: 2-1/4
