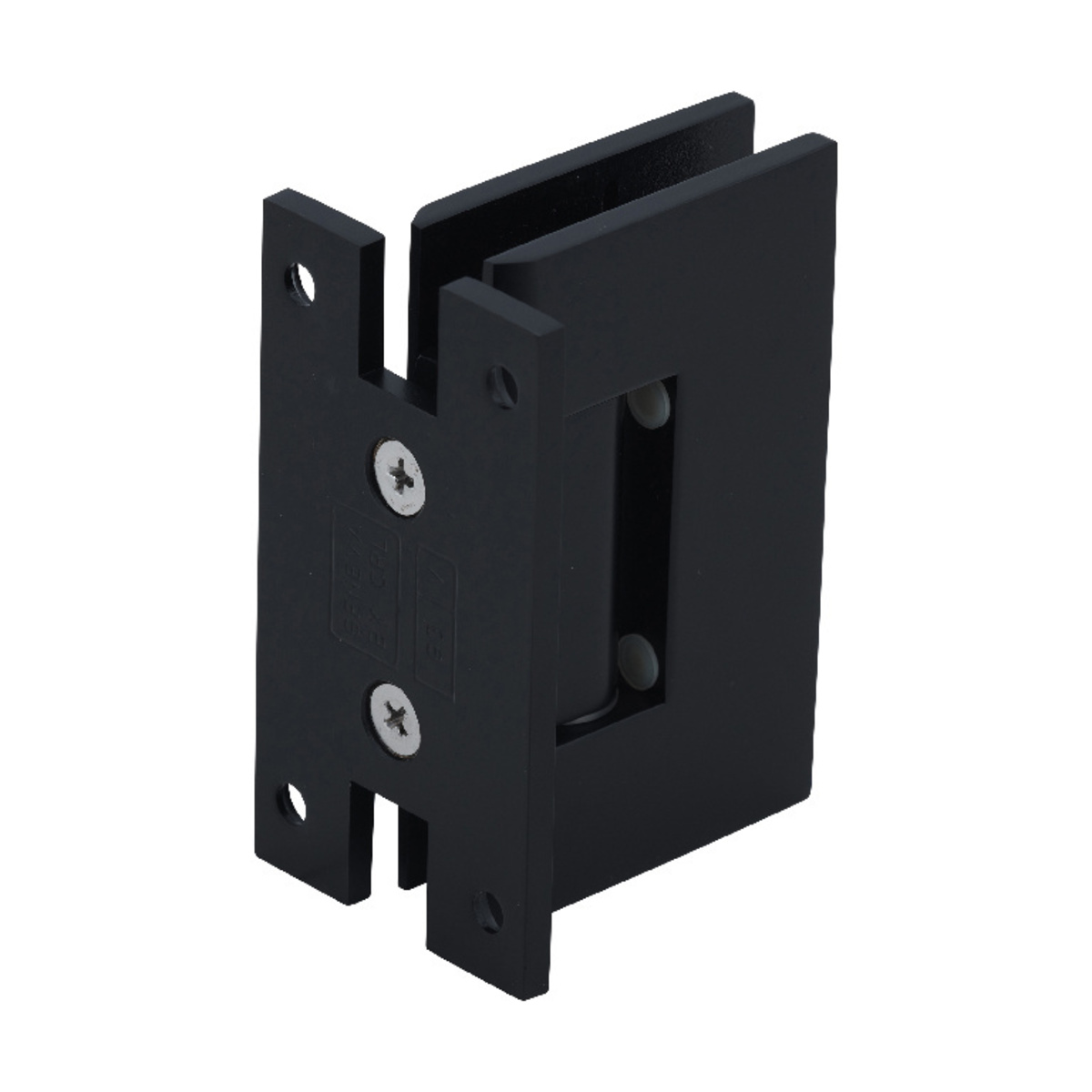

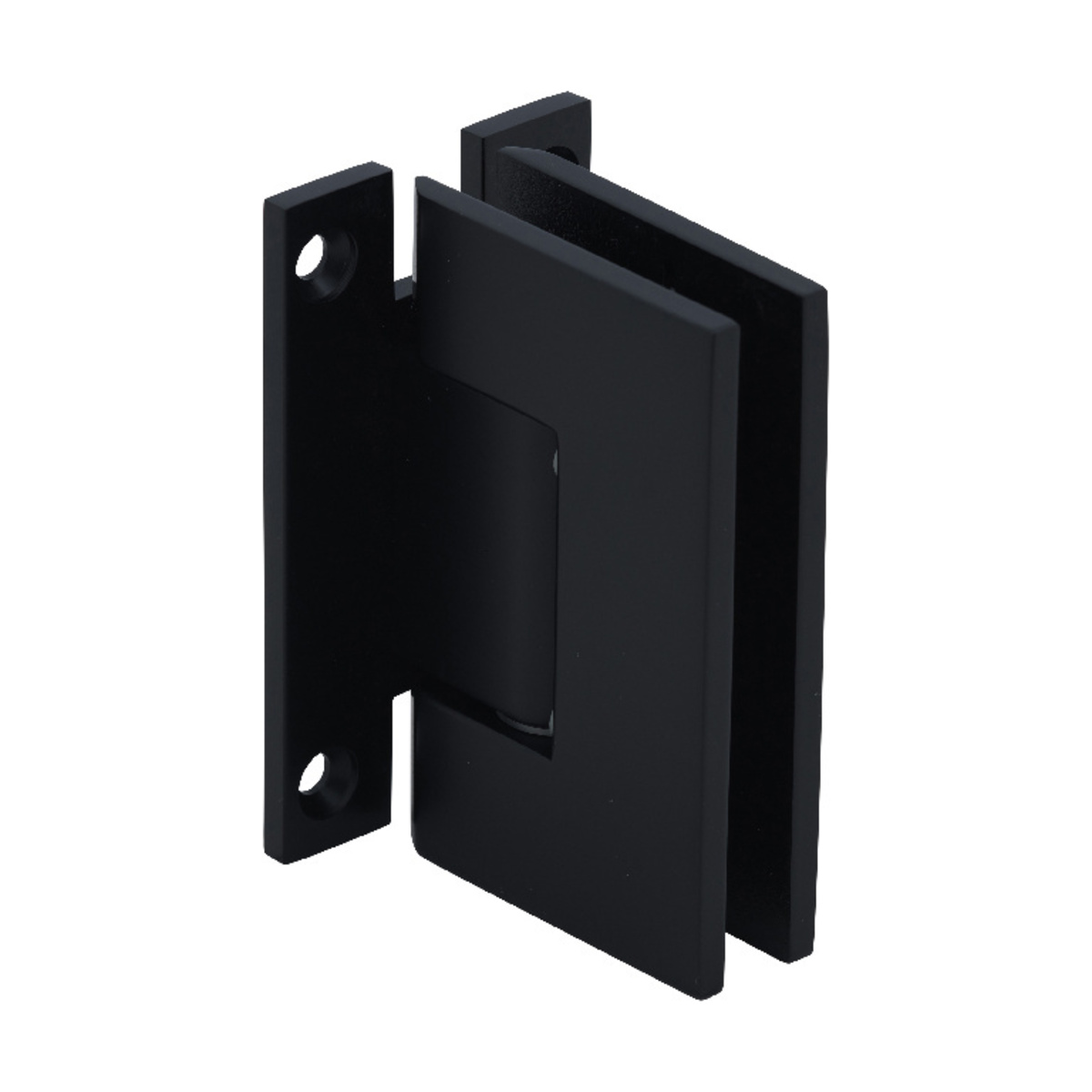

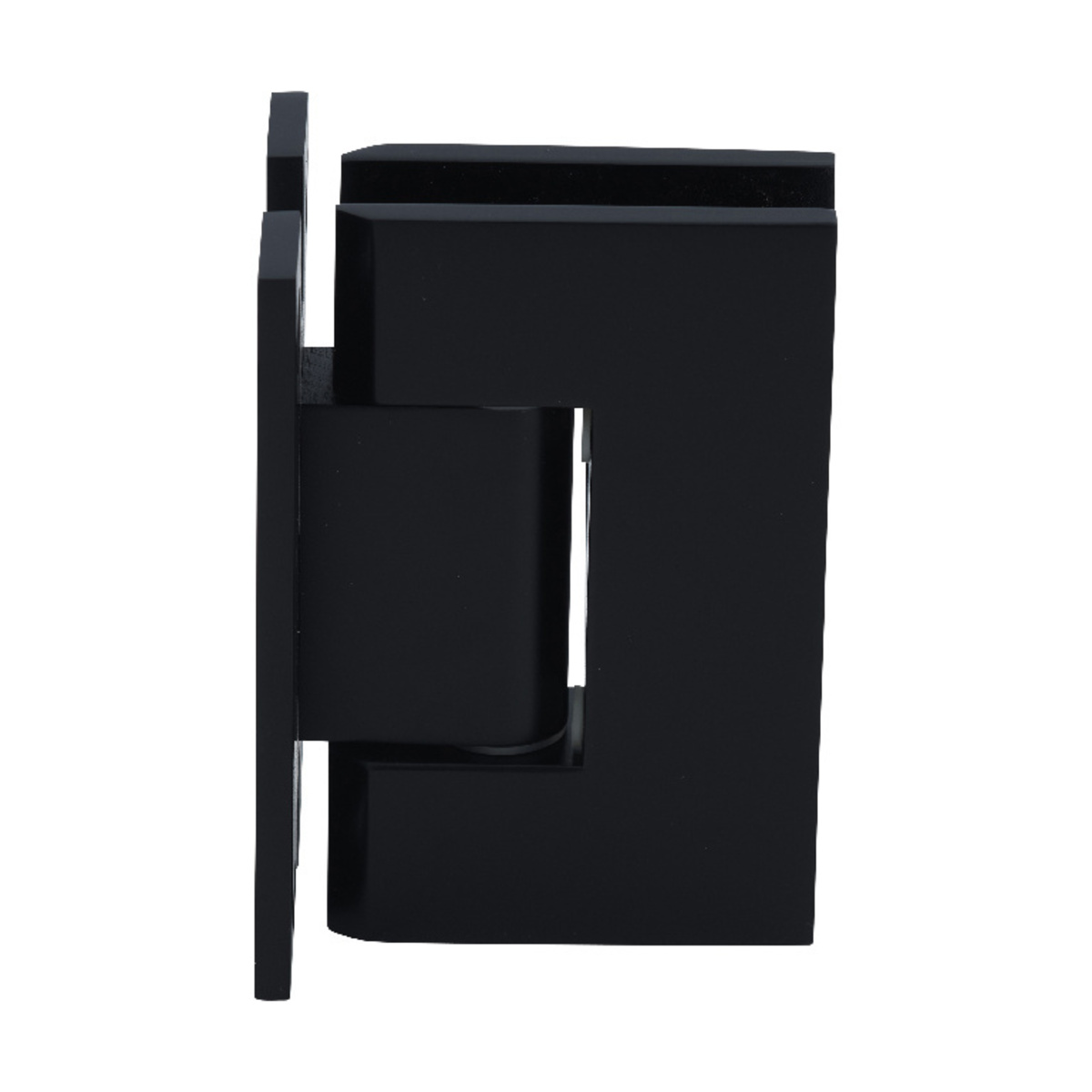

C.R. Laurence V1EH037MBL Matte Black Vienna 037 Series Wall Mount 'H' Back Plate Hinge features a sleek and contemporary design that enhances any space while ensuring excellent functionality. The innovative "H" shaped wall mounting plate allows for tighter clearance, bringing the glass closer to the wall and offering increased flexibility for various installations, including corner, niche, and bathtub enclosures. This hinge is crafted from durable brass and finished in a striking matte black, providing both aesthetic appeal and reliability. With a height of 3-15/16 inches and a width of 2-1/4 inches, it accommodates glazing thicknesses of 1/2 inch (12 mm), making it suitable for a range of glass applications. The hinge supports a maximum door weight of 110 lbs. with two hinges and 140 lbs. with three, ensuring it can handle substantial doors with ease. Designed for wall mounting and featuring a self-centering mechanism, this hinge allows for smooth operation and a clean, modern look. Whether for a residential or commercial setting, the Vienna 037 hinge exemplifies quality and style, making it a perfect choice for building professionals and discerning homeowners alike.
Matte Black Vienna 037 Series Wall Mount 'H' Back Plate Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: No
Back Plate: 'H'
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Squared
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Matte Black
Glazing Thickness: 1/2 in. (12 mm)

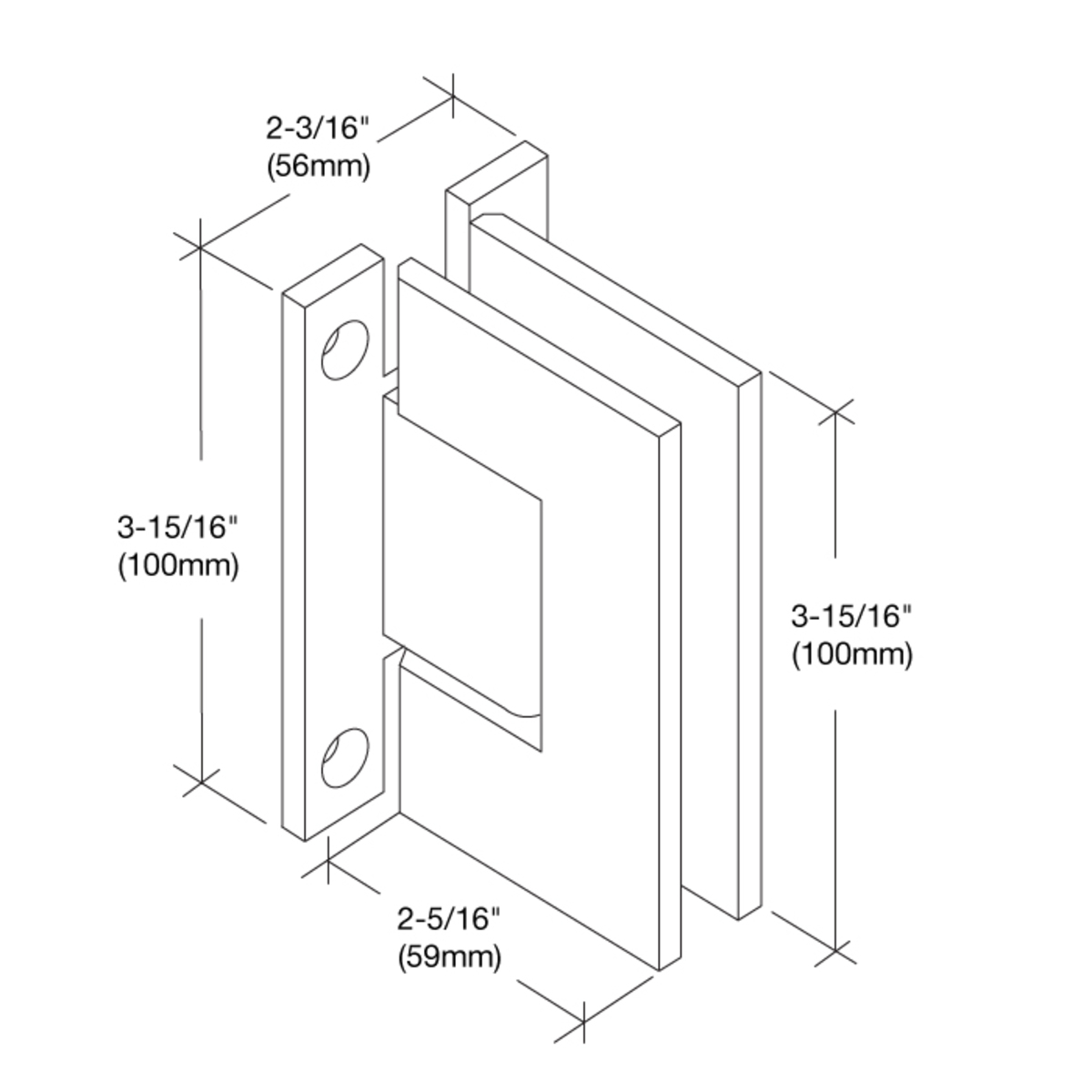

Height: 3-15/16 in. (100 mm)
Material: Brass
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges: 110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges: 140 lbs. (63.5 kg)
Maximum Door Width: 36 in. (914 mm)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Self- Centering: Yes
Series: Vienna
Shipping Limitations: None
Width: 2-1/4 in. (57 mm)
