CRL V210614 V2100 Thermalbond Structural Glazing Spacer Tape, 3/16 x 1/4"

CRL V210614 V2100 Thermalbond Structural Glazing Spacer Tape, 3/16 x 1/4"

C.R. Laurence V210614 3/16 x 1/4" Saint-Gobain/Norton V2100 Thermalbond Structural Glazing Spacer Tape is an essential component for both field and shop glazing applications. This semi-rigid foam tape features an aggressive pressure-sensitive adhesive, making it the preferred choice for two and four-sided structural silicone glazing systems. Designed with a specially formulated cellular substrate, the V2100 tape ensures joint dimension control and is chemically compatible with all tested commercial silicone sealants. Its highly aggressive adhesive on both sides allows for secure placement while maintaining the necessary spacing. The semi-rigid, open cell structure permits air and moisture to reach the silicone, facilitating optimal curing. Additionally, its low thermal conductivity minimizes heat transfer, helping prevent condensation on windows and doors. The V2100 is versatile, suitable for use with glass, metal, stone, and plastic panels in structural silicone glazing systems, including curtain walls and skylights. Stocked in an architectural black finish, it is available in nine standard sizes, with custom sizes offered upon request. With a density of 31 lbs/cu.ft. and a hardness of 35 durometer Shore A, this tape is built to perform effectively in a temperature range from -40°F to 180°F.

3/16 x 1/4" Saint-Gobain/Norton V2100 Thermalbond Structural Glazing Spacer Tape

• Structural Glazing Spacer for Field and Shop Glazing
• Superb Spacer for Two and Four Sided Structural Silicone Glazing Systems
• Chemically Compatible With All Silicones Tested

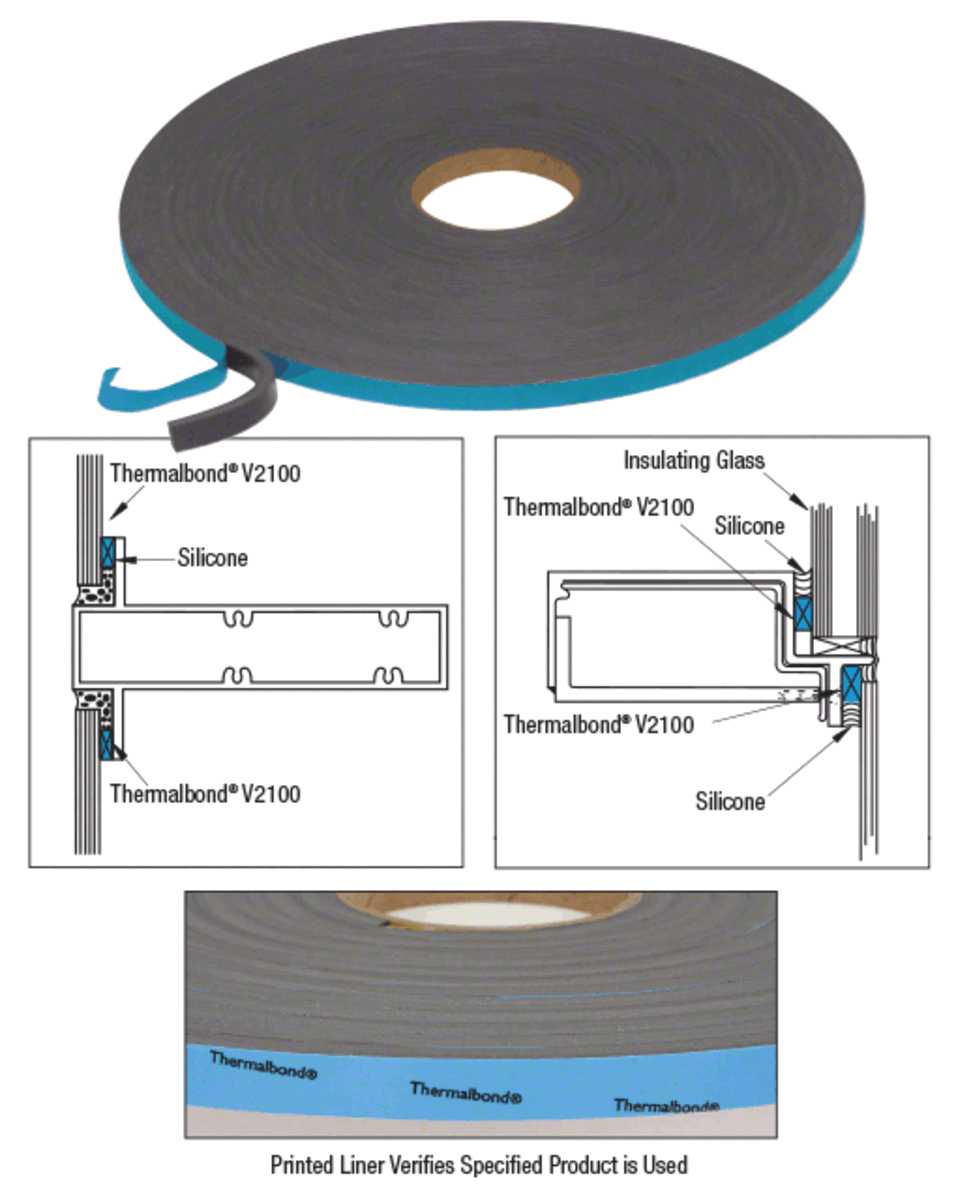

CRL Saint-Gobain/Norton V2100 Thermalbond® Tape is a semi-rigid foam tape with an aggressive pressure-sensitive adhesive. This high density tape has a specially formulated cellular substrate, and is used as a spacer for joint dimension control in structural silicone glazing systems. It is the most widely used spacer tape for structural silicone systems.


V2100 has proven to be compatible with all commercial silicone sealants used for structural glazing. It has a highly aggressive adhesive on both sides, and a semi-rigid, open cell structure that maintains the required spacing, and allows air and moisture to reach the silicone to allow optimum curing. Its low conductivity reduces heat transfer and inhibits condensation on windows, doors, and metal systems.

V2100 Tape is designed as a spacer for glass, metal, stone, mineral cement, and plastic panels in structural silicone glazing systems. This includes: two and four sided structural silicone glazing of curtain walls, storefronts, skylights and windows; to temporarily secure glazing or panels to framework in shop fabrication of unitized structural silicone glazing and cladding systems; to temporarily secure lightweight veneers to substrates while permanent structural silicone adhesives are curing; as a thermal break to reduce the conduction of heat; to provide an even sight line in vision areas. It is stocked only in an architectural black finish (other colors available on special order), and in nine stock sizes. Other sizes are also available on special order.

TYPICAL PROPERTIES:
Density: 31 lbs./cu.ft. (497 kg/m³); Hardness: 35 durometer Shore A; Force to Compress 10%: 31 psi (214 (kPa); Tensile Strength: 180 psi (1241 kPa); Elongation: 125%; Temperature Range: Application 60°F (16°C) to 125°F (52°C); Service -40°F (-40°C) to 180°F (82°C).


Product Warning:

Thermalbond® V2100 is a SPACER material and not intended to be a structural component. The adhesive properties cannot be used as part of the permanent fastening system or in any way to reduce the amount of silicone adhesive recommended by the silicone manufacturer. Contact surfaces must be thoroughly cleaned. Position V2100 carefully, as it cannot be repositioned after initial contact. With some surfaces, it may be necessary to prime the surface with Norton Tite-R-Bond Adhesion Promoter.

Resources

• Specifications V2100.PDF
