CRL V210638 3/16" x 3/8" Saint-Gobain V2100 Thermalbond Structural Glazing Spacer Tape

CRL V210638 3/16" x 3/8" Saint-Gobain V2100 Thermalbond Structural Glazing Spacer Tape

C.R. Laurence V210638 3/16 x 3/8" Saint-Gobain/Norton V2100 Thermalbond Structural Glazing Spacer Tape offers a superior solution for both field and shop glazing applications. This semi-rigid foam tape is engineered with an aggressive pressure-sensitive adhesive, making it the go-to spacer for two and four-sided structural silicone glazing systems. Its compatibility with all tested commercial silicone sealants ensures seamless integration into your projects. The V2100 features a high-density cellular substrate that maintains essential joint dimensions, allowing air and moisture to reach the silicone for optimal curing. With a low thermal conductivity, it effectively reduces heat transfer and minimizes condensation on windows, doors, and metal systems. This versatile tape is suitable for use with glass, metal, stone, and plastic panels, serving well in applications such as curtain walls, storefronts, skylights, and windows. Stocked in an architectural black finish, the V2100 comes in nine standard sizes, while custom sizes are available upon request. Please note that while this tape excels as a spacer, it is not intended as a structural component. Proper surface cleaning and positioning are crucial for maximum effectiveness. Experience the reliability and performance of C.R. Laurence’s Thermalbond spacer tape on your next glazing project.

3/16 x 3/8" Saint-Gobain/Norton V2100 Thermalbond Structural Glazing Spacer Tape

• Structural Glazing Spacer for Field and Shop Glazing
• Superb Spacer for Two and Four Sided Structural Silicone Glazing Systems
• Chemically Compatible with All Silicones Tested
• Black Color

CRL Saint-Gobain/Norton V2100 Thermalbond® Tape is a semi-rigid foam tape with an aggressive pressure-sensitive adhesive. This high density tape has a specially formulated cellular substrate, and is used as a spacer for joint dimension control in structural silicone glazing systems. It is the most widely used spacer tape for structural silicone systems.


V2100 has proven to be compatible with all commercial silicone sealants used for structural glazing. It has a highly aggressive adhesive on both sides, and a semi-rigid, open cell structure that maintains the required spacing, and allows air and moisture to reach the silicone to allow optimum curing. Its low conductivity reduces heat transfer and inhibits condensation on windows, doors, and metal systems.

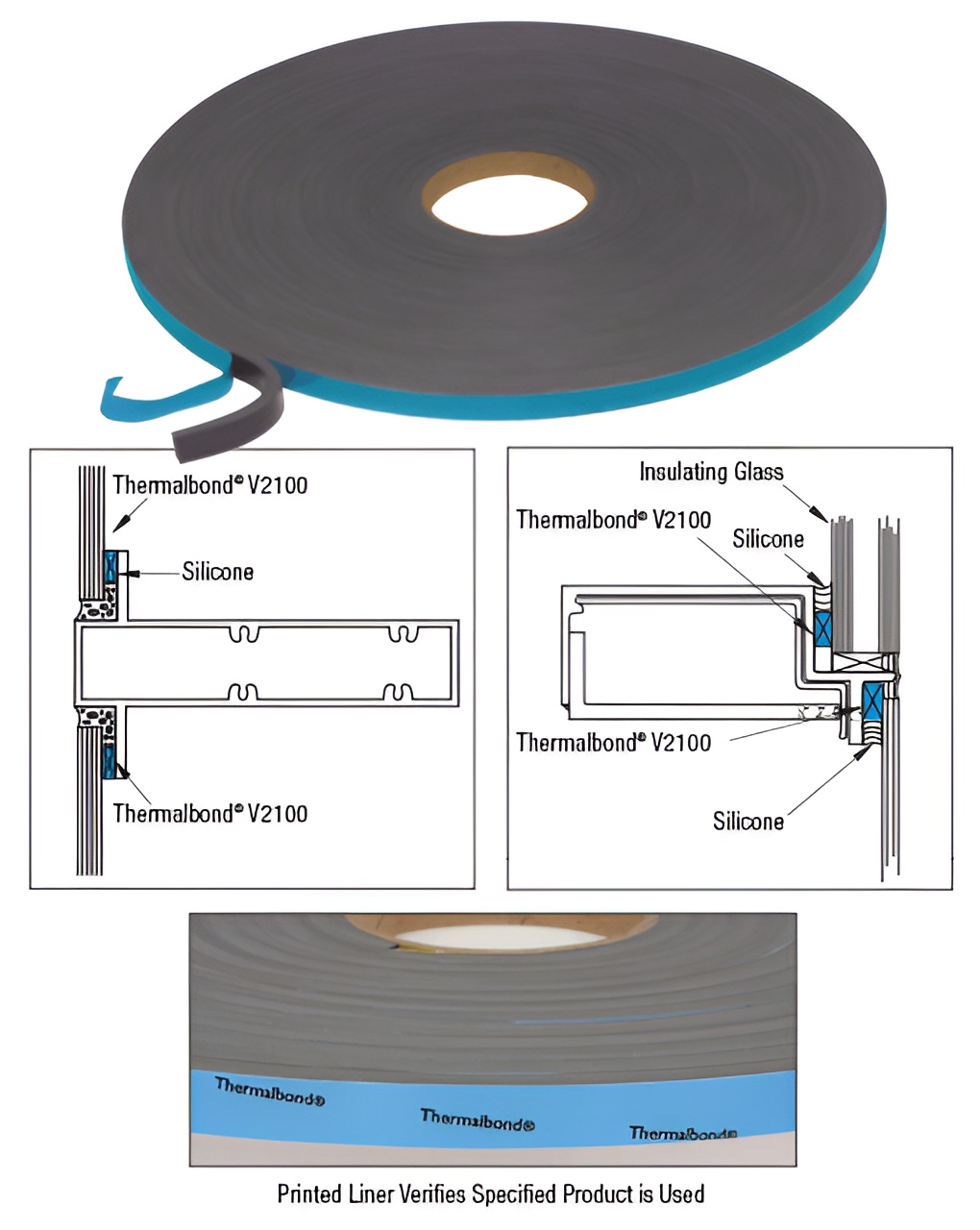

V2100 Tape is designed as a spacer for glass, metal, stone, mineral cement, and plastic panels in structural silicone glazing systems. This includes: two and four sided structural silicone glazing of curtain walls, storefronts, skylights and windows; to temporarily secure glazing or panels to framework in shop fabrication of unitized structural silicone glazing and cladding systems; to temporarily secure lightweight veneers to substrates while permanent structural silicone adhesives are curing; as a thermal break to reduce the conduction of heat; to provide an even sight line in vision areas. It is stocked only in an architectural black finish (other colors available on special order), and in nine stock sizes. Other sizes are also available on special order.

LIMITATIONS: Thermalbond® V2100 is a SPACER material and not intended to be a structural component. The adhesive properties cannot be used as part of the permanent fastening system or in any way to reduce the amount of silicone adhesive recommended by the silicone manufacturer. Contact surfaces must be thoroughly cleaned. Position V2100 carefully, as it cannot be repositioned after initial contact. With some surfaces, it may be necessary to prime the surface with Norton Tite-R-Bond Adhesion Promoter.

TYPICAL PROPERTIES

Density: 31 lbs./cu.ft. (497 kg/m³); Hardness: 35 durometer Shore A; Force to Compress 10%: 31 psi (214 (kPa);

Tensile Strength: 180 psi (1241 kPa); Elongation: 125%;

Temperature Range: Application 60°F (16°C) to 125°F (52°C); Service -40°F (-40°C) to 180°F (82°C).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Resources

• LEEDTape.pdf
• Specifications V2100.PDF
