CRL V21081 1/4" x 1" Saint-Gobain V2100 Thermalbond Structural Glazing Spacer Tape

CRL V21081 1/4" x 1" Saint-Gobain V2100 Thermalbond Structural Glazing Spacer Tape

C.R. Laurence V21081 1/4" x 1" Saint-Gobain/Norton V2100 Thermalbond Structural Glazing Spacer Tape is an essential component for both field and shop glazing applications. This semi-rigid foam tape features an aggressive pressure-sensitive adhesive that provides superior performance in two and four-sided structural silicone glazing systems. The black color ensures a sleek appearance while maintaining professional standards. Designed for compatibility with all tested commercial silicone sealants, the V2100 tape boasts a highly effective adhesive on both sides and a unique open cell structure. This design not only maintains the required spacing but also facilitates the necessary air and moisture exposure for optimal curing of silicone. With a low thermal conductivity, it effectively reduces heat transfer and minimizes condensation on windows, doors, and metal systems. The V2100 tape can be utilized for various materials including glass, metal, stone, and plastic panels, making it versatile for applications such as curtain walls, storefronts, and skylights. Stocked in a 50 ft. roll and measuring 1/4 in. thick and 1 in. wide, it is available in black, with other colors upon special request. Trust the C.R. Laurence V21081 for reliable performance and efficiency in your structural glazing projects.

1/4" x 1" Saint-Gobain/Norton V2100 Thermalbond Structural Glazing Spacer Tape

• Structural Glazing Spacer for Field and Shop Glazing
• Superb Spacer for Two and Four Sided Structural Silicone Glazing Systems
• Chemically Compatible with All Silicones Tested
• Black Color

CRL Saint-Gobain/Norton V2100 Thermalbond® Tape is a semi-rigid foam tape with an aggressive pressure-sensitive adhesive. This high density tape has a specially formulated cellular substrate, and is used as a spacer for joint dimension control in structural silicone glazing systems. It is the most widely used spacer tape for structural silicone systems.


V2100 has proven to be compatible with all commercial silicone sealants used for structural glazing. It has a highly aggressive adhesive on both sides, and a semi-rigid, open cell structure that maintains the required spacing, and allows air and moisture to reach the silicone to allow optimum curing. Its low conductivity reduces heat transfer and inhibits condensation on windows, doors, and metal systems.

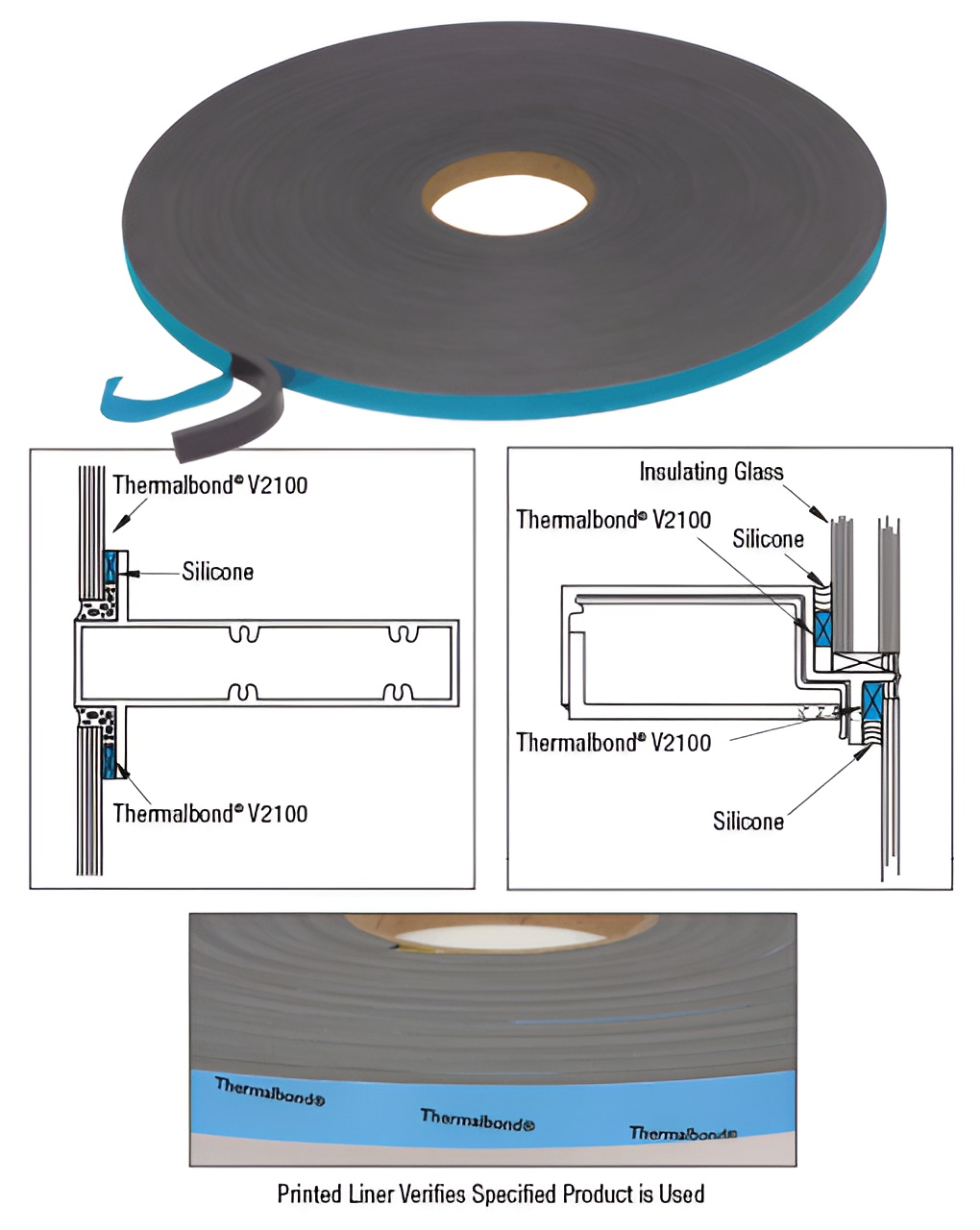

V2100 Tape is designed as a spacer for glass, metal, stone, mineral cement, and plastic panels in structural silicone glazing systems. This includes: two and four sided structural silicone glazing of curtain walls, storefronts, skylights and windows; to temporarily secure glazing or panels to framework in shop fabrication of unitized structural silicone glazing and cladding systems; to temporarily secure lightweight veneers to substrates while permanent structural silicone adhesives are curing; as a thermal break to reduce the conduction of heat; to provide an even sight line in vision areas. It is stocked only in an architectural black finish (other colors available on special order), and in nine stock sizes. Other sizes are also available on special order.

LIMITATIONS:
Thermalbond® V2100 is a SPACER material and not intended to be a structural component. The adhesive properties cannot be used as part of the permanent fastening system or in any way to reduce the amount of silicone adhesive recommended by the silicone manufacturer. Contact surfaces must be thoroughly cleaned. Position V2100 carefully, as it cannot be repositioned after initial contact. With some surfaces, it may be necessary to prime the surface with Norton Tite-R-Bond Adhesion Promoter.

TYPICAL PROPERTIES
Density: 31 lbs./cu.ft. (497 kg/m³); Hardness: 35 durometer Shore A; Force to Compress 10%: 31 psi (214 (kPa); Tensile Strength: 180 psi (1241 kPa); Elongation: 125%; Temperature Range: Application 60°F (16°C) to 125°F (52°C); Service -40°F (-40°C) to 180°F (82°C).

Resources

• LEEDTape.pdf
• Specifications V2100.PDF
