CRL V210838 V2100 Thermalbond 1/4" x 3/8" Structural Glazing Spacer Tape

CRL V210838 V2100 Thermalbond 1/4" x 3/8" Structural Glazing Spacer Tape

C.R. Laurence V210838 1/4" x 3/8" Saint-Gobain/Norton V2100 Thermalbond Structural Glazing Spacer Tape is an essential component for both field and shop glazing applications. This semi-rigid foam tape features an aggressive pressure-sensitive adhesive that ensures reliable performance in two and four-sided structural silicone glazing systems. Its black color provides a sleek, professional appearance while maintaining compatibility with all tested commercial silicone sealants. The V2100 tape offers a high-density cellular substrate that serves as a spacer, effectively controlling joint dimensions and enabling optimal curing conditions for silicone. With a low conductivity design, it reduces heat transfer and minimizes condensation on windows, doors, and metal systems. The tape is versatile, suitable for securing glass, metal, stone, and plastic panels, and is perfect for curtain walls, storefronts, and skylights. With a density of 31 lbs./cu.ft. and a temperature range from -40°F to 180°F, this tape is built to withstand diverse environmental conditions. It is available in a convenient roll length of 50 ft. and boasts a thickness of 1/4 inch. Please note, while the V2100 is a spacer material, it should not be used as a structural component. For best results, ensure surfaces are thoroughly cleaned before application.

1/4" x 3/8" Saint-Gobain/Norton V2100 Thermalbond Structural Glazing Spacer Tape

• Structural Glazing Spacer for Field and Shop Glazing
• Superb Spacer for Two and Four Sided Structural Silicone Glazing Systems
• Chemically Compatible with All Silicones Tested
• Black Color

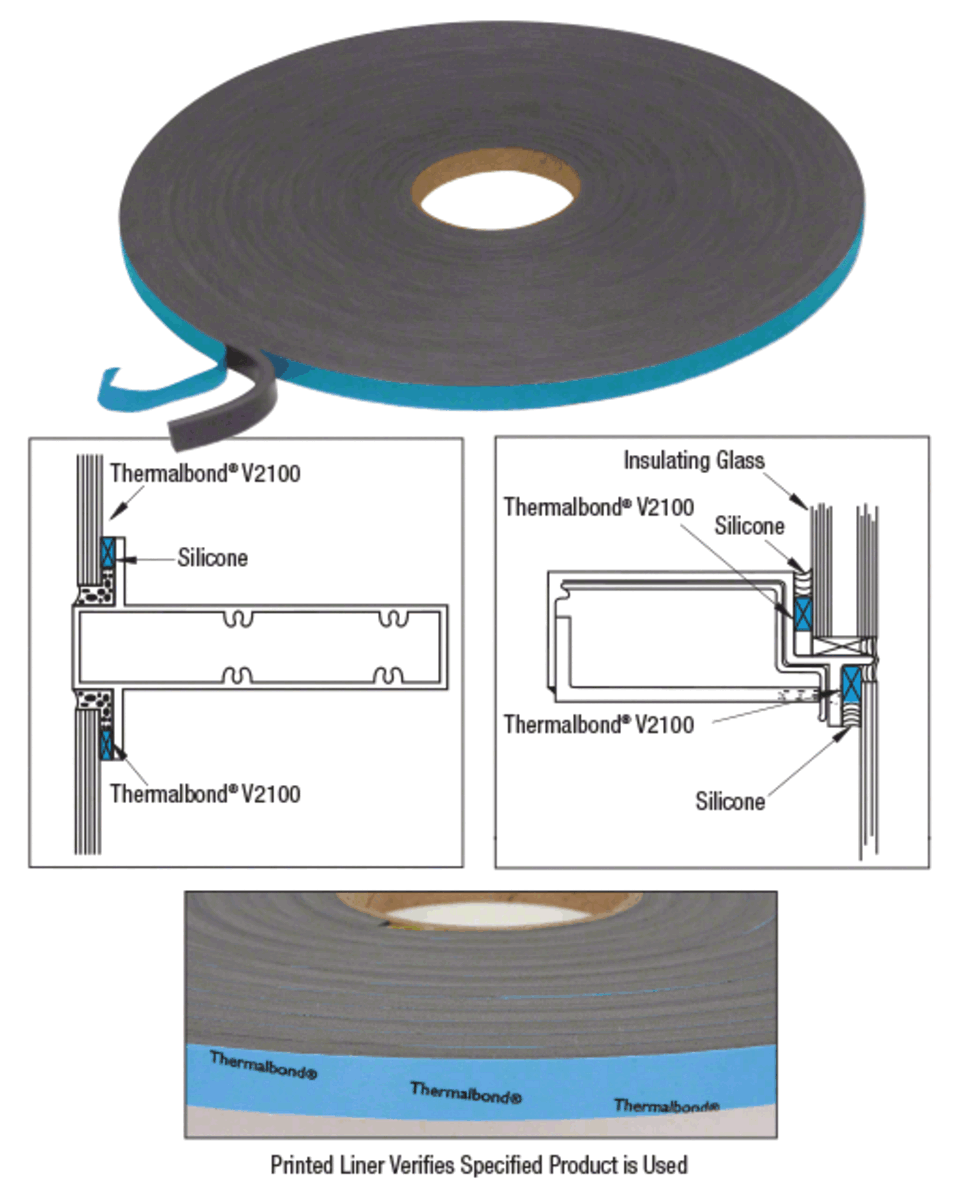

CRL Saint-Gobain/Norton V2100 Thermalbond® Tape is a semi-rigid foam tape with an aggressive pressure-sensitive adhesive. This high density tape has a specially formulated cellular substrate, and is used as a spacer for joint dimension control in structural silicone glazing systems. It is the most widely used spacer tape for structural silicone systems.


V2100 has proven to be compatible with all commercial silicone sealants used for structural glazing. It has a highly aggressive adhesive on both sides, and a semi-rigid, open cell structure that maintains the required spacing, and allows air and moisture to reach the silicone to allow optimum curing. Its low conductivity reduces heat transfer and inhibits condensation on windows, doors, and metal systems.

V2100 Tape is designed as a spacer for glass, metal, stone, mineral cement, and plastic panels in structural silicone glazing systems. This includes: Two and four sided structural silicone glazing of curtain walls, storefronts, skylights and windows; to temporarily secure glazing or panels to framework in shop fabrication of unitized structural silicone glazing and cladding systems; to temporarily secure lightweight veneers to substrates while permanent structural silicone adhesives are curing; as a thermal break to reduce the conduction of heat; to provide an even sight line in vision areas. It is stocked only in an architectural black finish (other colors available on special order), and in nine stock sizes. Other sizes are also available on special order.

Limitations: Thermalbond® V2100 is a SPACER material and not intended to be a structural component. The adhesive properties cannot be used as part of the permanent fastening system or in any way to reduce the amount of silicone adhesive recommended by the silicone manufacturer. Contact surfaces must be thoroughly cleaned. Position V2100 carefully, as it cannot be repositioned after initial contact. With some surfaces, it may be necessary to prime the surface with Norton Tite-R-Bond Adhesion Promoter.

Typical Properties:

Density: 31 lbs./cu.ft. (497 kg/m³); Hardness: 35 durometer Shore A; Force to Compress 10%: 31 psi (214 (kPa);

Tensile Strength: 180 psi (1241 kPa); Elongation: 125%;

Temperature Range: Application 60°F (16°C) to 125°F (52°C); Service -40°F (-40°C) to 180°F (82°C).
