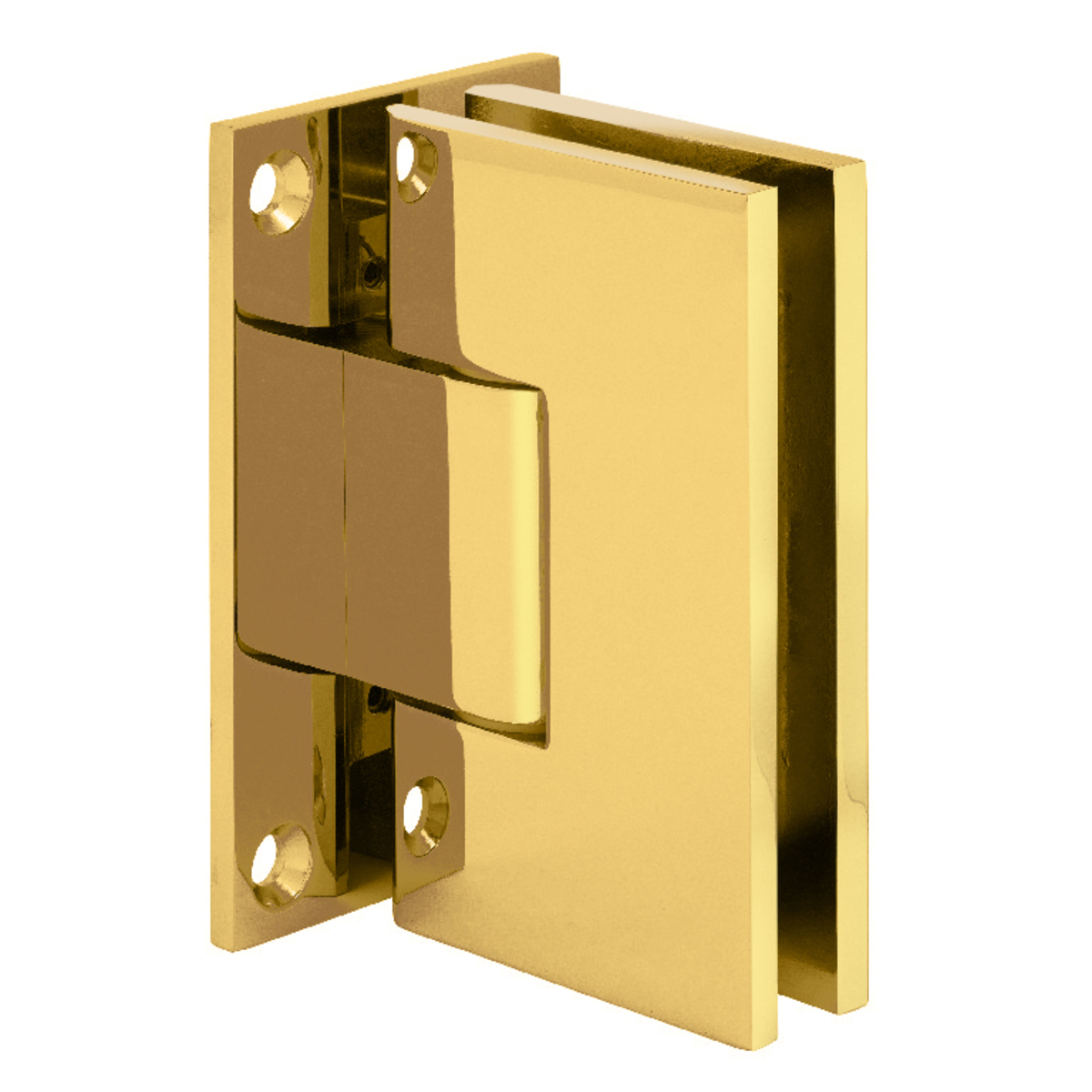

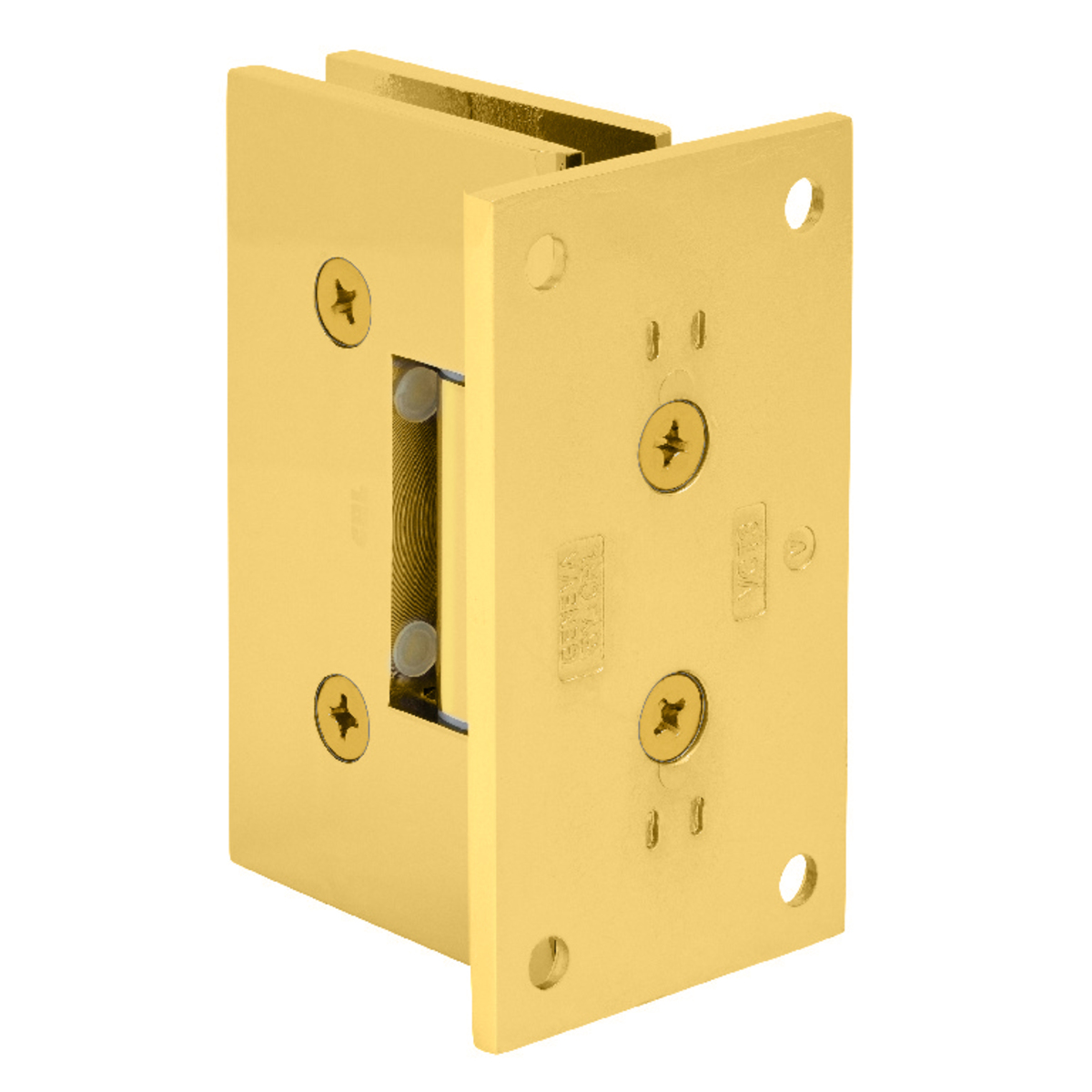

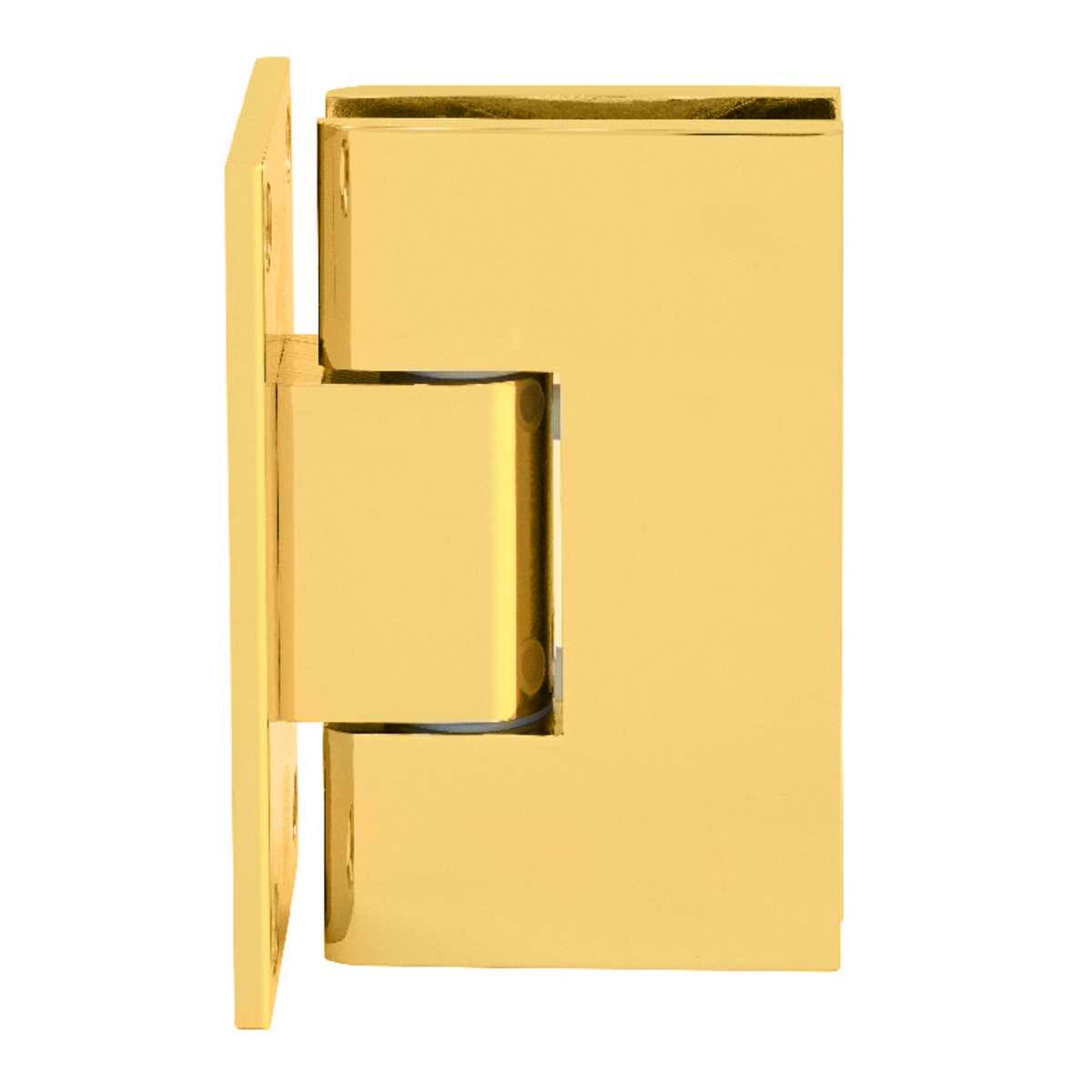

CRL VCT037ULBR Unlacquered Brass Victoria Wall Mount Full Back Plate Hinge

CRL VCT037ULBR Unlacquered Brass Victoria Wall Mount Full Back Plate Hinge

C.R. Laurence VCT037ULBR Unlacquered Brass Victoria Series Wall Mount Full Back Plate Hinge is an exceptional choice for supporting heavier, wider shower doors. With the capacity to hold up to 140 lbs. (64 kg) and accommodating doors up to 39" (1 m) wide using just two hinges, this product ensures a streamlined look by minimizing the amount of hardware required. Designed for use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass, it features an integrated safety interlock that enhances glass panel control and stability. The solid brass construction offers durability, while the heat-treated stainless steel springs provide added resilience. The hinge swings 90 degrees in and out, with a self-centering mechanism that activates within 15 degrees of the closed position. Included with the hinge are gaskets, screws, and glass fabrication dimensions for seamless installation. It's important to note that for optimal performance, only two hinges should be utilized per door, and glass fabrication is required. Available in six popular finishes, with custom options also offered, the VCT037ULBR hinge is perfect for residential or hotel shower applications, delivering both functionality and aesthetic appeal.

Unlacquered Brass Victoria Series Wall Mount Full Back Plate Hinge

• An Excellent Choice for Heavier, Wider Shower Doors
• Integrated Safety Interlock Enhances Glass Panel Control
• Wall Mount and 180 Degree Glass-to-Glass Models Available
• For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Safety Glass

CRL Victoria Series Hinges have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39" (1 m) using only two hinges.


NOTE: Do not use three hinges.

This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
