CRL VL2MAN Wood's Powr-Grip Vertical Lift Hand Cup Frame 220

CRL VL2MAN Wood's Powr-Grip Vertical Lift Hand Cup Frame 220

C.R. Laurence Wood's Powr-Grip® Vertical Lift Hand Cup Frame 220 is designed for effortless material handling, allowing a single operator to transport heavy or awkward loads with minimal effort. This innovative lifter utilizes an aluminum bar and sliding mounts to effectively harness the power of your hand-held vacuum cups (sold separately). With a lifting capacity of 220 lbs. (100 kg), the VL2MAN lifter is perfect for tasks that demand stability and safety. Equipped with two sliding hand cup mounts, this vacuum lifter can accommodate a variety of load sizes and shapes. It can be used with CRL Wood's Powr-Grip® 9" (229 mm) vacuum cups, offering a standard pad spread ranging from a minimum of 9-1/4" x 18-1/2" (232 x 473 mm) to a maximum of 9-1/4" x 42-1/2" (232 x 1083 mm). This flexibility ensures that operators can handle different materials with confidence. Easily attachable to cranes, hoists, or forklifts, the VL2MAN helps reduce operator fatigue and the risk of injury during lifting tasks. For added versatility, optional features such as an adjustable center arm and custom sizes are available upon request. Elevate your material handling efficiency with the C.R. Laurence Wood's Powr-Grip® Vertical Lift Hand Cup Frame 220.

Wood's Powr-Grip Vertical Lift Hand Cup Frame 220

• Easily Moved by One Person from Job Site to Job Site with Minimal Effort
• Great for Jobs When the Material Being Handled is Too Heavy or Too Awkward to be Moved Safely by Hand

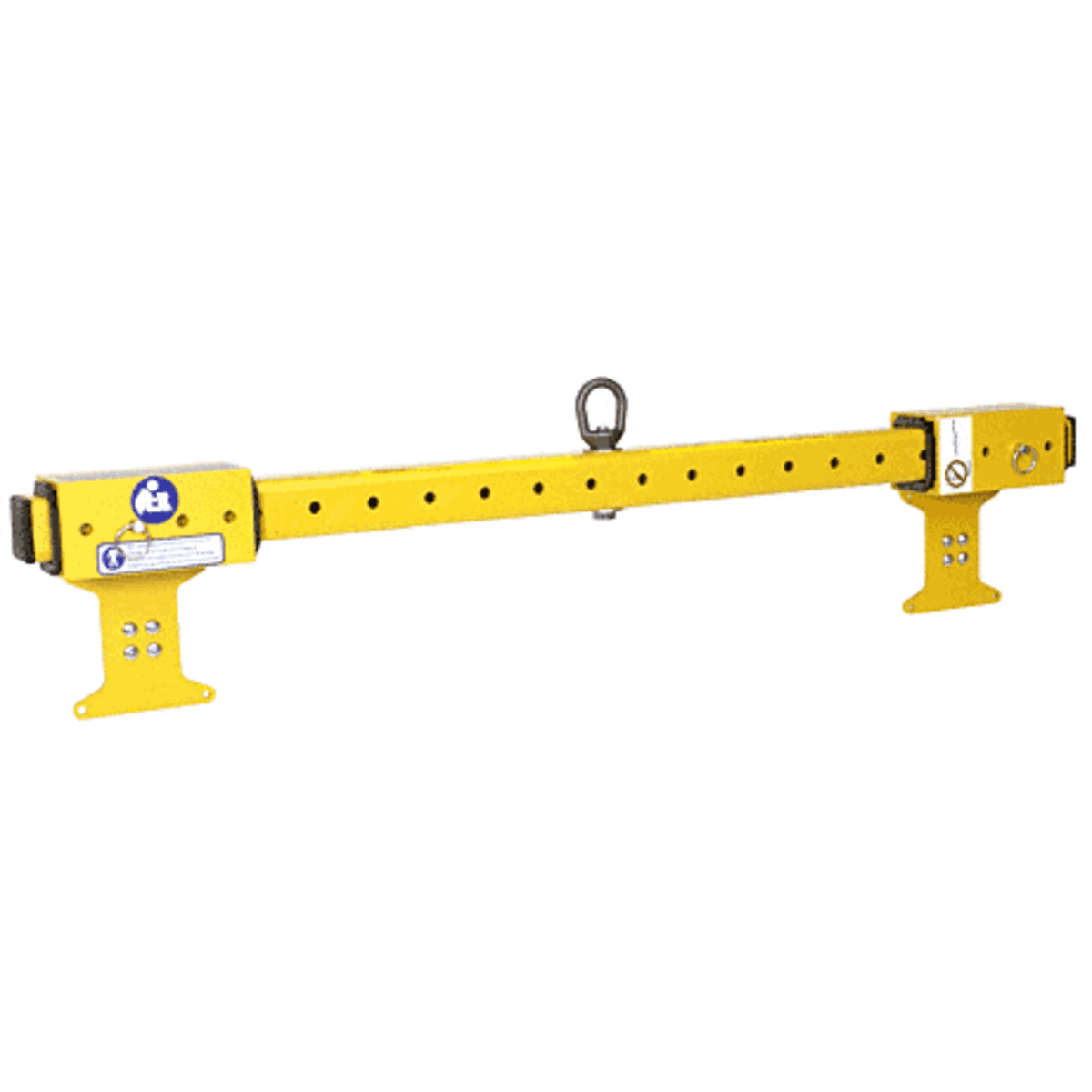

The CRL Wood's Powr-Grip® Vertical Lift Hand Cup Frame 220 incorporates an aluminum bar and sliding mounts that are specifically designed to use the power of your hand-held vacuum cups (not included) to lift loads. It is easily moved by one person from job site to job site with minimal effort. (If you own a set of CRL Wood's Powr-Grip® W5450 cups, all you need to do is attach one cup to each mount on the lifter.) Once two CRL Wood's Powr-Grip® W5450 cups have been attached, this new vacuum lifter allows the operator to manipulate loads with smooth, non-porous surfaces in a vertical orientation. It’s great for those jobs when the material being handled is too heavy or too awkward to be moved safely by hand. By attaching the VL2MAN lifter to a crane, hoist or forklift, the operator can avoid fatigue and possible injury while lifting materials up to 220 lbs. (100 kg). Sliding hand cup mounts offer additional versatility to the VL2MAN. When using CRL Wood's Powr-Grip®'s 9" [23 cm] hand cups, the lifter can be configured to range in size from a minimum pad spread of 9-1/4" x 18-1/2" (232 x 473 mm) to a maximum of 9-1/4" x 42-1/2" (232 x 1083 mm). This allows the operator greater flexibility in the size and shape of loads that can be lifted.


STANDARD PAD SPREAD: (to outside edge of cups):
Minimum: 9-1/4" x 18-1/2" (232 x 473 mm)
Maximum: 9-1/4" x 42-1/2" (232 x 1083 mm)

NUMBER/SIZE OF CUPS: 2/9" (229 mm) Diameter
LIFTING CAPACITY*: 220 Lbs. (100 kg)
UNIT WEIGHT*: 17 Lbs. (8 kg)
LOAD MOVEMENT: Upright to upright.
STANDARD FEATURES: Sliding Hand Cup Mounts

AVAILABLE OPTIONS:
• Adjustable Center Arm
• Special Sizes and Capacities Upon Request
With Wood's Powr-Grip® Hand-Held Vacuum Cups
(Cat. No. W5450, sold separately)

NOTE: These Vacuum Lifters provide an inexpensive way to put Powr-Grips® Hand-Held Vacuum Cups to work on a crane, hoist or forklift. Uses your 9" (227 mm) W5450 Vacuum Cups. Use only where Cups can be monitored and re-pumped if necessary.
