CRL VPK33CH Polished Stainless Steel 33
Images may not represent actual product and finish

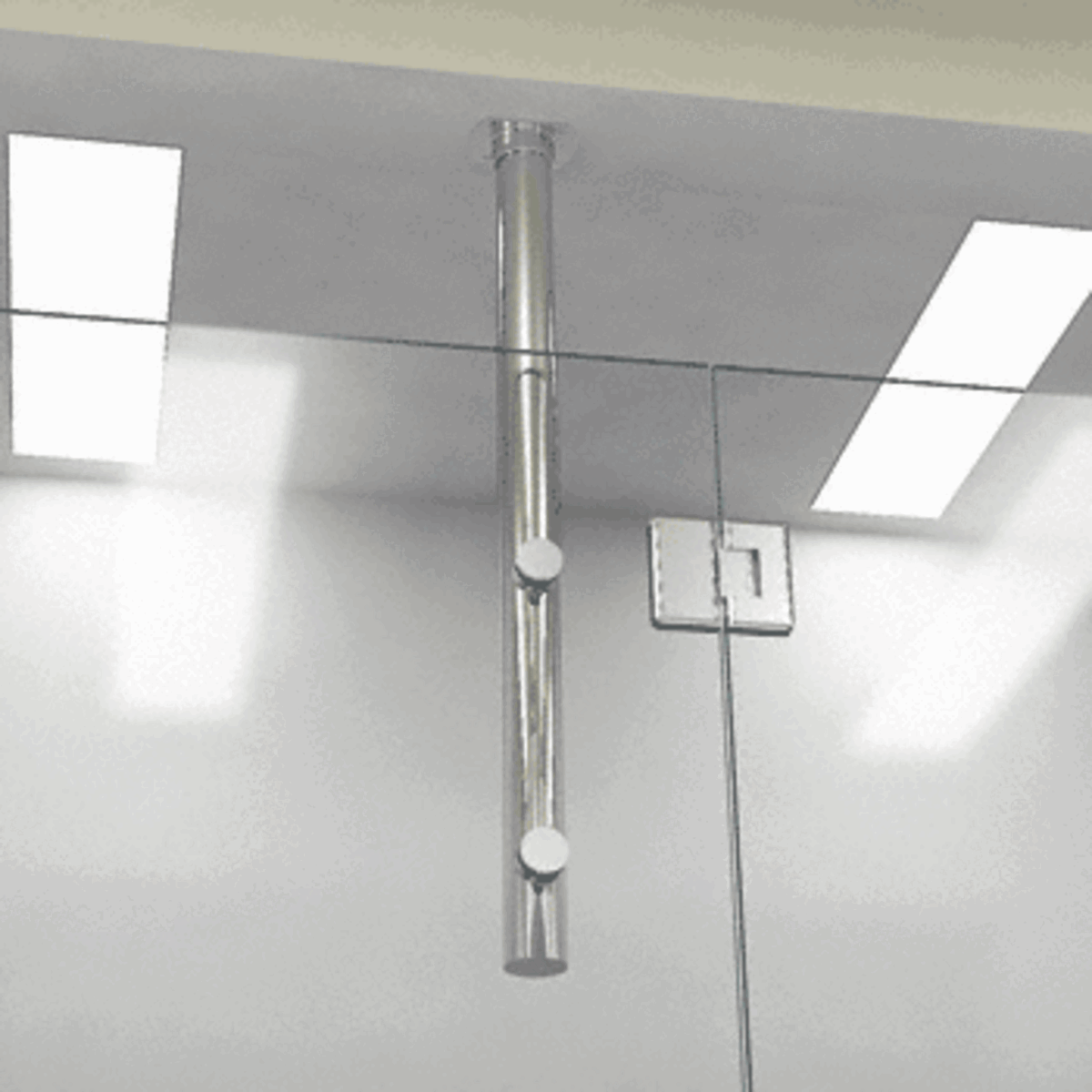

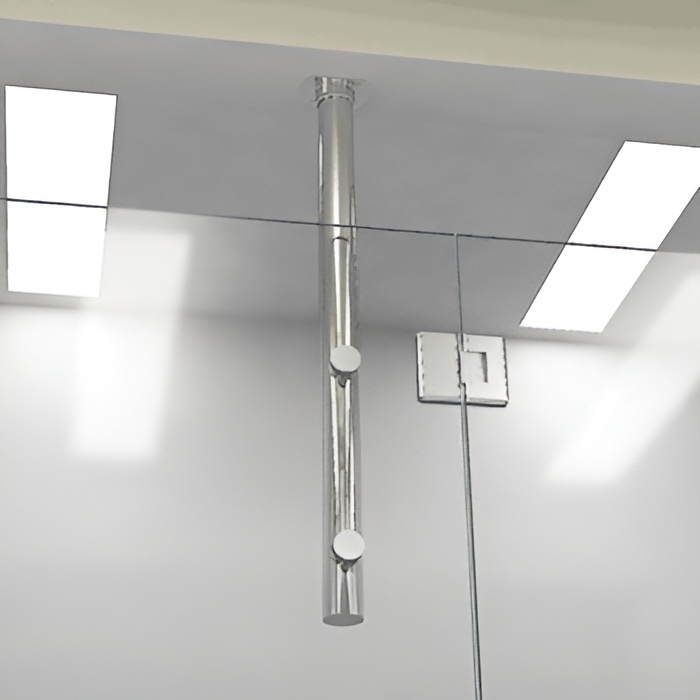

CRL VPK33CH Polished Stainless Steel 33" Two-Point Vertical Post System

Your Price: $350.73
Retail Price:$419.88
Your Savings:$69.15(16%)
The CRL VPK33CH is a polished stainless steel vertical post system, ideal for stabilizing glass panels without ceiling support.
Part Number : CRL_VPK33CH
Availability: 32 In Stock
CRL VPK33CH Polished Stainless Steel 33" Two-Point Vertical Post System

C.R. Laurence VPK33CH Polished Stainless Steel 33" Two Point Vertical Post System offers a sleek and modern alternative for stabilizing fixed glass panels that do not extend to the ceiling. Designed to replace traditional horizontal header systems, this innovative solution provides an unobtrusive support structure that enhances the aesthetic appeal of any space. Constructed from durable stainless steel with a polished chrome finish, the VPK33CH system features a 2" diameter round tubing, ensuring both strength and elegance. It is compatible with monolithic tempered glass and accommodates glazing thicknesses of 5/16", 3/8", and 1/2". The kit includes a 33" length of tubing, two rivet nuts, a flat style end cap, and tube adaptors with threaded studs, making installation straightforward. The system is available in popular stock finishes, with custom kits also offered to match specific design requirements. Note that glass fabrication is necessary for tube adaptors and end caps. For those seeking a refined touch, the VPK33 is perfect for environments where style and stability are paramount. With clear mounting details and installation instructions, this post system is ready to meet the demands of today’s architectural projects.

Polished Stainless Steel 33" Two Point Vertical Post System

  • Stock or Custom Kits Allow User to Stabilize Fixed Panels of Glass Not Going to Ceiling
  • Excellent Alternative to Traditional Horizontal Header Systems
  • Use Monolithic Tempered Glass
  • Four Popular Stock Finishes
  • Glass Fabrication Required for Tube Adaptors/End Caps
  • Custom Kits Available in Various Finishes

CRL offers two styles of our Frameless Vertical Post System. They are used to stabilize fixed panels of glass not reaching the ceiling, and provide an excellent alternative to customers not wanting to use the more traditional horizontal Header Systems that run across the entire width of the enclosure. An especially attractive look is when patterned glass with decorative, rippled top edges is used, since a Header System cannot be applied as a crown to the glass.


Two stock systems are offered the Floor-to-Ceiling Mount System and the Two-Point Ceiling Mount System. Stock Systems are prepared for behind-the-glass installation. Custom Systems and finishes are available by simply submitting a drawing to our Frameless Shower Door Technical Department. Tube Adaptors/End Caps require 3/4" (19 mm) holes in glass. Complete mounting details and installation instructions are available.

NOTE: Maximum Bar Length is 33" (838 mm)

STOCK KIT INCLUDES:
  • 1 Each - 33" (838 mm) length of 2" (51 mm) diameter Round Tubing, two Rivet Nuts, and Flat Style End Cap
  • 2 Each - Tube Adaptors with 1-1/2" (38 mm) diameter End Caps (with Threaded Stud)
  • 1 Each – Removable Top Flange with Set Screw

    NOTE: There are size limitations when hinging a door off a panel fastened using the VPK33. Call our Frameless Shower Department for details.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Construction: Tubular

    Diameter: 2 in. (51 mm)

    Finish/ Color:: Polished Chrome

    Glazing Thickness: 5/16 in. (8 mm), 3/8 in. (10 mm), 1/2 in. (12 mm)

    Length: 33 in. (838 mm)

    Material: Stainless Steel

    Shipping Limitations: None
