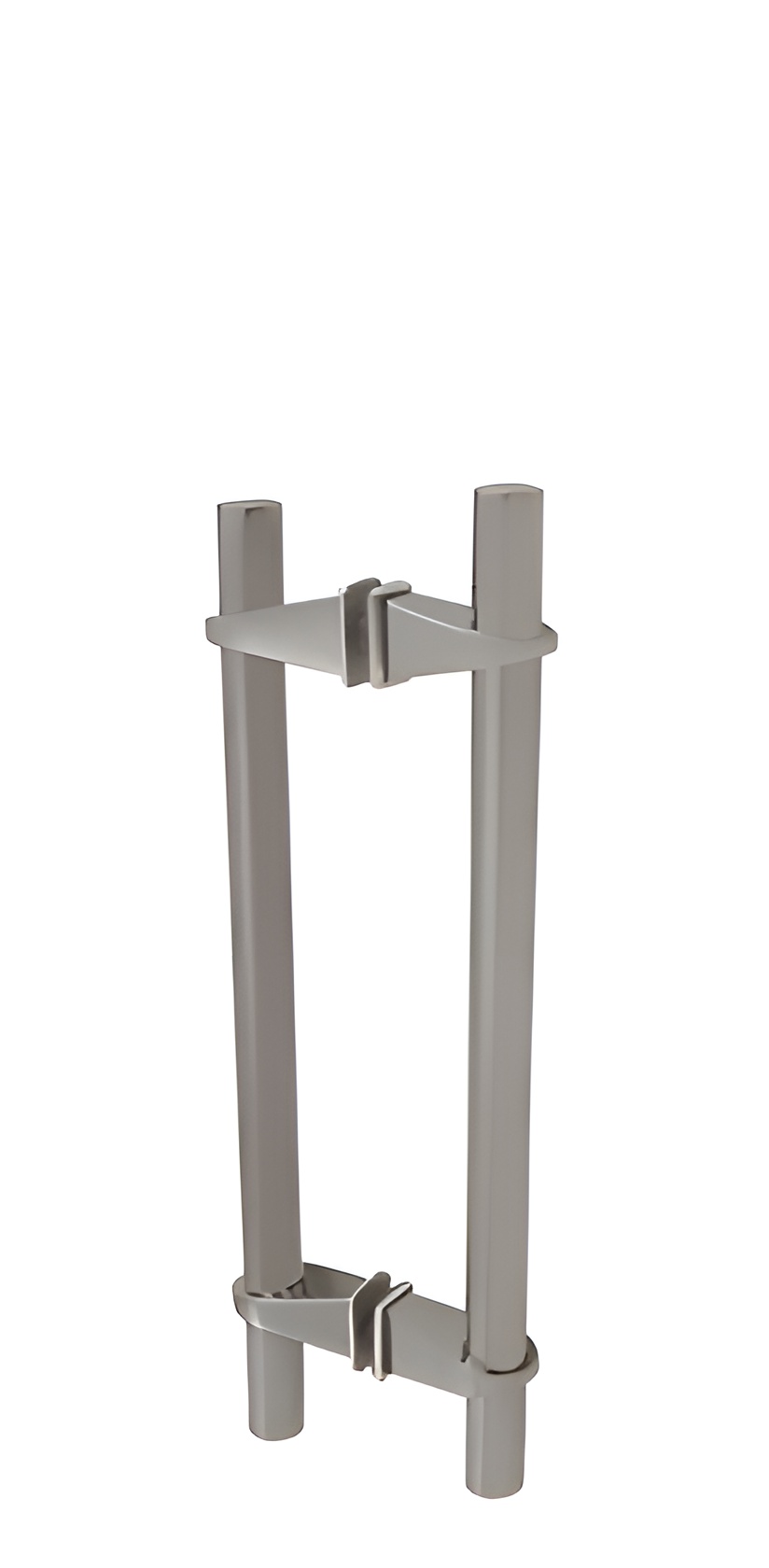

CRL VPS116BS Brushed Stainless 16" Adjustable Pull Handle with VP1 Mounting PostC.R. Laurence VPS116BS Brushed Stainless 16" Variant Series Adjustable Pull Handle with VP1 Mounting Post offers a perfect blend of style and functionality for modern glass installations. Designed to accommodate glass thicknesses of 3/8" to 3/4" (10 mm to 19 mm), this pull handle is expertly constructed from durable 1" (25 mm) diameter stainless steel tubing, ensuring both strength and elegance. The adjustable mounting posts provide flexibility, allowing for installation on centers ranging from 6" to 26-3/4" (152 to 679 mm). This versatility means the VPS116BS can be easily tailored to fit standard hole patterns of 12", 18", and 24" (305, 457, and 610 mm), making it suitable for a variety of architectural applications. Each unit includes all necessary hardware, featuring through-bolts for glass mounting and four adjustable mounting posts, ensuring a straightforward installation process. With a brushed stainless steel finish, the VPS116BS not only enhances the aesthetic of any space but also resists corrosion, although regular maintenance is advised to preserve its factory look. This pull handle is an excellent choice for those seeking a reliable and stylish solution for glass doors in commercial and residential settings.
Brushed Stainless 16" Variant Series Adjustable Pull Handle with VP1 Mounting Post
- Adjustable Mounting Posts Can Mount on 6" to 26-3/4" (152 to 679 mm) Centers
- For 3/8" to 3/4" (10 and 19 mm) Glass
- Constructed of 1" (25 mm) Diameter Stainless Steel Tubing
- Use Monolithic Tempered Glass
The
CRL Variant Series Adjustable Mounting Post Style Pulls are designed to fit on standard hole patterns of 12", 18" and 24" (305, 457 and 610 mm) centers, but with their adjustable mounting posts our various sizes will accommodate any hole pattern ranging from 6" up to 26-3/4" (152 to 679 mm) on center. Additional Mounting Posts can also be purchased separately.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes,
VPS x 16: 12" (305 mm) Center-to-Center
VPS x 22: 18" (457 mm) Center-to-Center
VPS x 28: 24" (610 mm) Center-to-Center
NOTE: Hole centers shown are for standard mounting locations. You may vary actual hole centers.
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: Adjustable Mounting Posts (VP1 or VP2 Depending on Handle Style)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 12 in. Adjustable (305 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-To-Back
Overall Length: 16 in. (406 mm)
Shipping Limitations: None
