CRL VPS128BS Brushed Stainless 28" Adjustable Pull Handle with VP1 Mounting PostC.R. Laurence VPS128BS Brushed Stainless 28" Variant Series Adjustable Pull Handle with VP1 Mounting Post is engineered for versatility and durability in modern glass installations. This stylish pull handle features adjustable mounting posts that accommodate hole patterns from 6" to 26-3/4" (152 to 679 mm) on center, allowing for seamless integration into various design layouts. Crafted from robust 1" (25 mm) diameter stainless steel tubing, it is suitable for use with monolithic tempered glass ranging from 3/8" to 3/4" (10 to 19 mm) thick. Installation is straightforward, thanks to the included through-bolts for glass mounting and the provision for two 5/8" (16 mm) diameter holes. The VPS128BS is designed to fit standard mounting locations of 12", 18", and 24" (305, 457, and 610 mm) centers, offering flexibility for custom applications. The brushed stainless steel finish not only enhances aesthetic appeal but also provides resistance to corrosion, ensuring longevity in demanding environments. For those seeking additional customization, extra mounting posts can be purchased separately. This product combines functionality with a sleek design, making it an excellent choice for both professional builders and discerning homeowners looking to elevate their space.

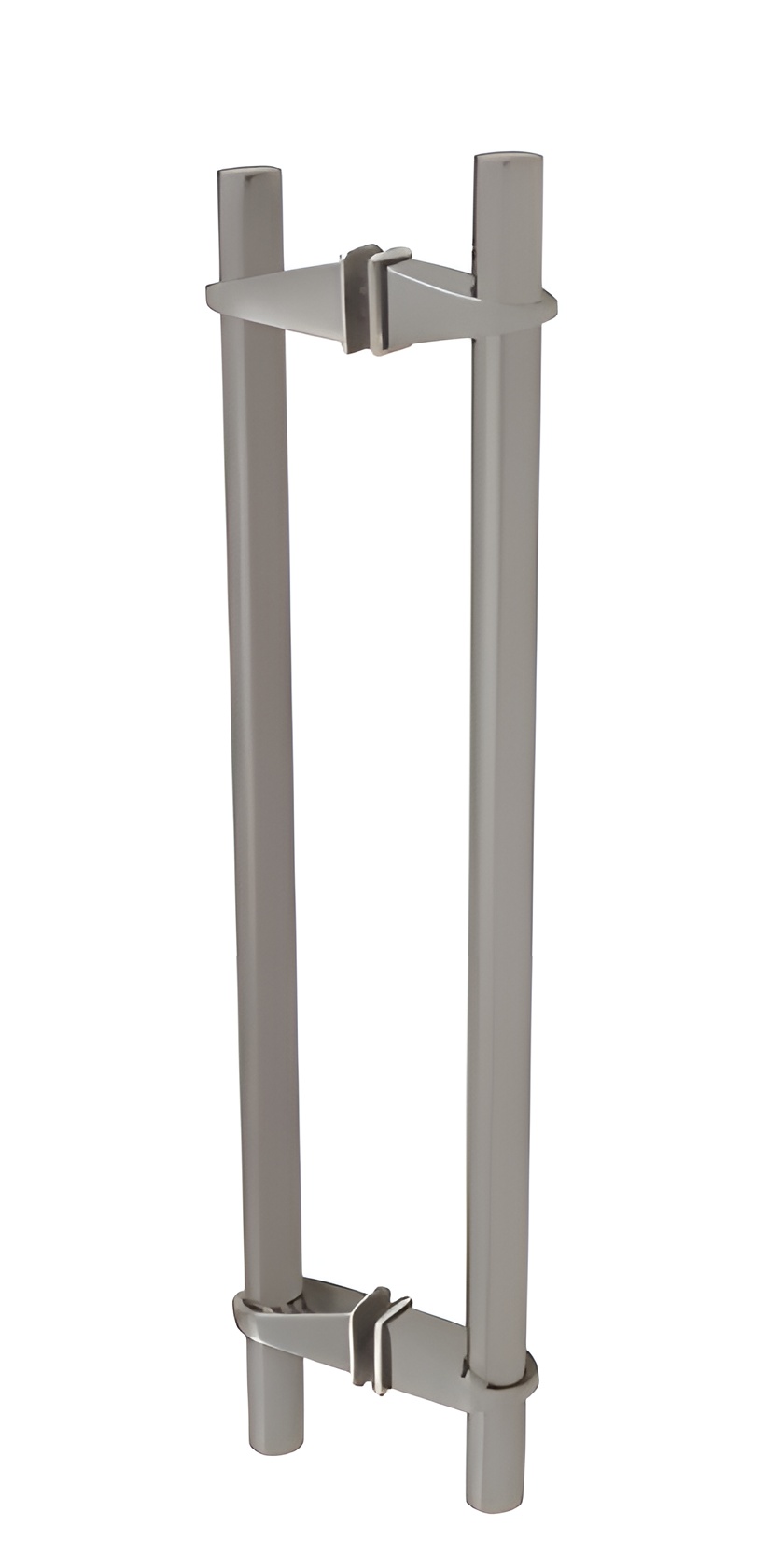

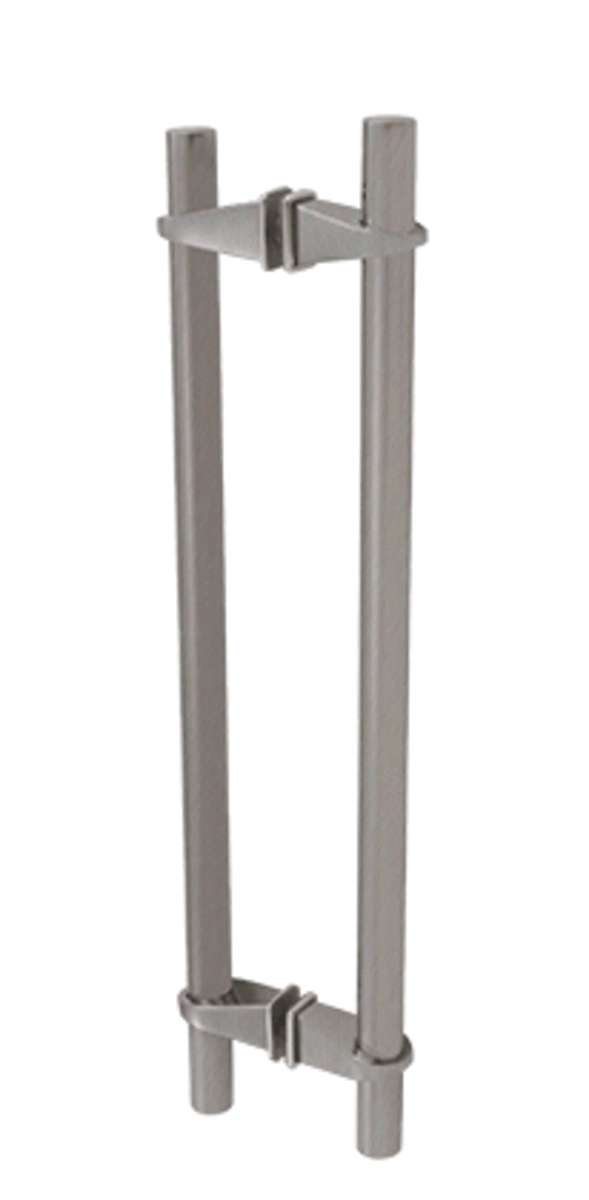

Brushed Stainless 28" Variant Series Adjustable Pull Handle with VP1 Mounting Post
- Adjustable Mounting Posts Can Mount on 6 to 26-3/4" (152 to 679 mm) Centers
- For 3/8" to 3/4" (10 and 19 mm) Glass
- Constructed of 1" (25 mm) Diameter Stainless Steel Tubing
- Use Monolithic Tempered Glass
The
CRL Variant Series Adjustable Mounting Post Style Pulls are designed to fit on standard hole patterns of 12", 18" and 24" (305, 457 and 610 mm) centers, but with their adjustable mounting posts our various sizes will accommodate any hole pattern ranging from 6" up to 26-3/4" (152 to 679 mm) on center. Additional Mounting Posts can also be purchased separately.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes,
VPS x 16: 12" (305 mm) Center-to-Center
VPS x 22: 18" (457 mm) Center-to-Center
VPS x 28: 24" (610 mm) Center-to-Center
NOTE: Hole centers shown are for standard mounting locations. You may vary actual hole centers.
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: Adjustable Mounting Posts (VP1 or VP2 Depending on Handle Style)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 24 in. Adjustable (610 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-To-Back
Overall Length: 28 in. (711 mm)
Shipping Limitations: None
