CRL VW8209 Universal Horizontal Sliding Window 21.25" x 16.75" with Trim RingC.R. Laurence VW8209 Universal Non-Contoured Horizontal Sliding Window offers a practical solution for enhancing ventilation and visibility in various vehicles with flat walls. Designed with precision, this window features an outside frame dimension of 21-1/4" x 16-3/4" and is constructed from durable extruded aluminum with a sleek black powder-coated finish. The VW8209 is equipped with 28% Solar Privacy Glass, providing a balance of light and privacy while reducing glare. A metal locking latch ensures security, and the included screen allows fresh air in, while keeping unwanted pests out. The window's universal design facilitates installation on either side or the back of the vehicle, while built-in weep holes promote effective drainage. With a trim ring thickness of 2-1/4", which is reversible for 1/8" skin mount applications, the VW8209 is versatile enough to accommodate various setups. The product is available in four stock sizes of horizontal sliders, catering to diverse needs. For optimal accuracy during installation, it is recommended to create a template before cutting the opening, as the window has rounded corners. Whether you’re upgrading your vehicle or retrofitting a new one, the C.R. Laurence VW8209 is the reliable choice for your window needs.

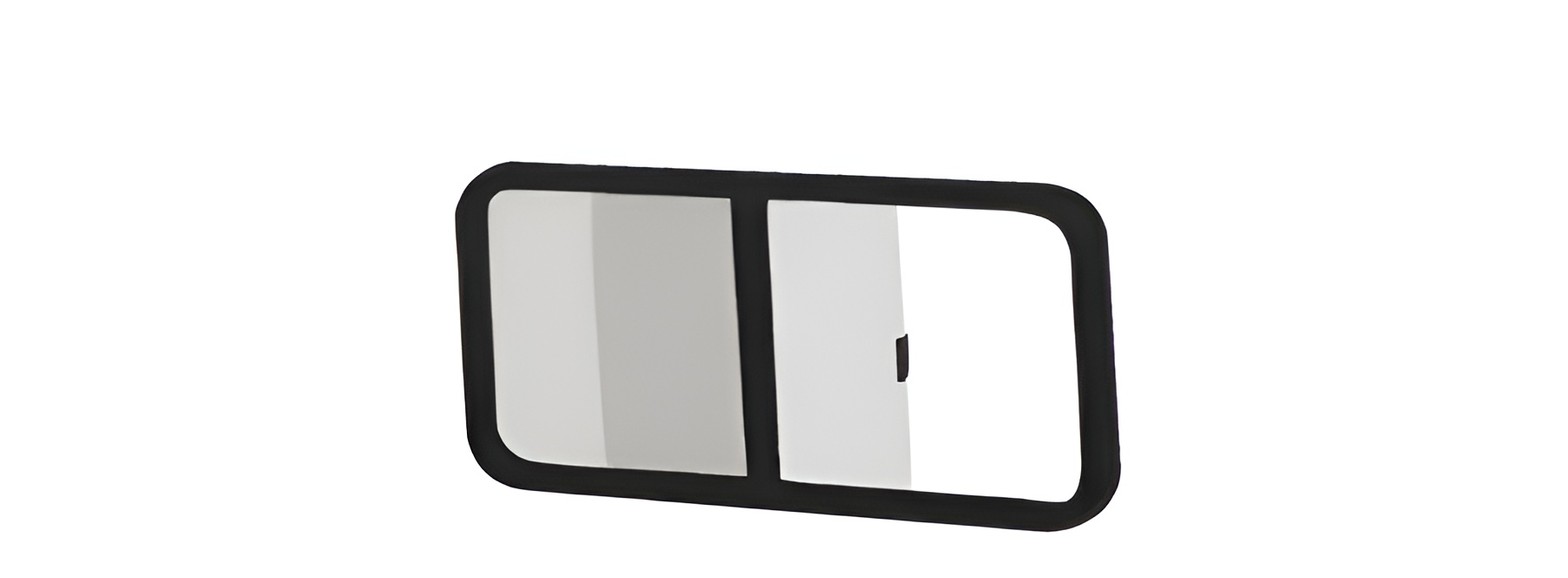

Universal Non-Contoured Horizontal Sliding Window 21-1/4" x 16-3/4" with 2-1/4" Non-Reversible Trim Ring
- Four Stock Sizes
- 28% Solar Privacy Glass
- Metal Locking Latch
Our
CRL Universal Flat Surface Windows are the "all-purpose solution" to ventilate and increase visibility in just about any vehicle with flat walls. The frames are made of extruded aluminum with a black powder-coated finish. The metal is then formed to surround 28% Solar Privacy Glass. The sliding panel has a positive locking latch for security, and the ventilating panel is screened to let air in and keep bugs out.
Universal handling lets you use them on the right hand, left hand or backside of the vehicle because built-in weep holes allow for proper drainage. Trim ring thickness options are 1-1/2" (38 mm) and 2-1/4" (57 mm), and the 2-1/4" trim ring is reversible for 1/8" (3 mm) skin mount applications.
We offer three stock sizes of Vertical Lift Sliders, and four stock sizes of Horizontal Sliders. With this much versatility, it's easy to see why our Universal Flat Surface Windows are the "all-purpose solution" to many of your window needs.
Product Warning:
This window has rounded corners, and the opening should not be cut prior to receipt of the actual product, so a template can made for accuracy.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Clamp Ring: 2-/14 in. (57 mm)
Clamp Ring Angle: 90
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Cut Out Height: 15-1/2 in. (394 mm)
Cut Out Width: 20 in. (508 mm)
Glass Tint: Solar Privacy
Outside Frame Dimensions: 21-1/4 in. X 16-3/4 in. (540 mm X 425 mm)
Screen Included: Yes
Shipping Limitations: None
Type: Horizontal,Half Slider
Vehicle Make: Universal
Vehicle Model: Universal
