CRL W12MBLS Matte Black Vertical Weatherstile Kits for 1/2" Glass Doors

C.R. Laurence W12MBLS Matte Black Vertical Weatherstile Kits for 1/2" Glass Single Doors offer a sophisticated solution for enhancing your glass door installations. Designed specifically for 1/2" (12 mm) monolithic tempered glass, these kits not only reduce drafts but also protect the edges of the glass, maintaining the sleek aesthetic of all-glass doors. Each kit includes two 117" (2.97 m) lengths of weatherstile equipped with wool pile weatherstrip, a 120" (3.05 m) black EPDM filler strip for double door applications, and four 117" (2.97 m) bonding strips with Very Hi-Bond Tape for reliable mounting. Additionally, the package features four 1-1/2" (38 mm) tall weatherstripped removable access plates with alignment clips and comprehensive installation instructions. Custom lengths up to 117" (2.97 m) can also be ordered. The vertical weatherstiles are engineered exclusively for use with CRL DRS Wedge-Lock® door rails, ensuring compatibility with both single and double door applications. Available in five cladded architectural finishes, including a striking matte black, these kits effortlessly match the adjacent metal finishes of most commercial doors. Installation is streamlined and efficient, eliminating the waiting time associated with traditional adhesives. Please note, these kits are intended for newly fabricated doors only.

Matte Black Vertical Weatherstile Kits for 1/2" Glass Single Doors

• Kit for 1/2" (12 mm) Glass Doors
• Use Monolithic Tempered Glass
• Reduces Drafts and Protects the Edge of the Glass
• Works Only with CRL DRS Wedge-Lock® Door Rails for Both Single and Double Door Applications
• Five Cladded Architectural Finishes

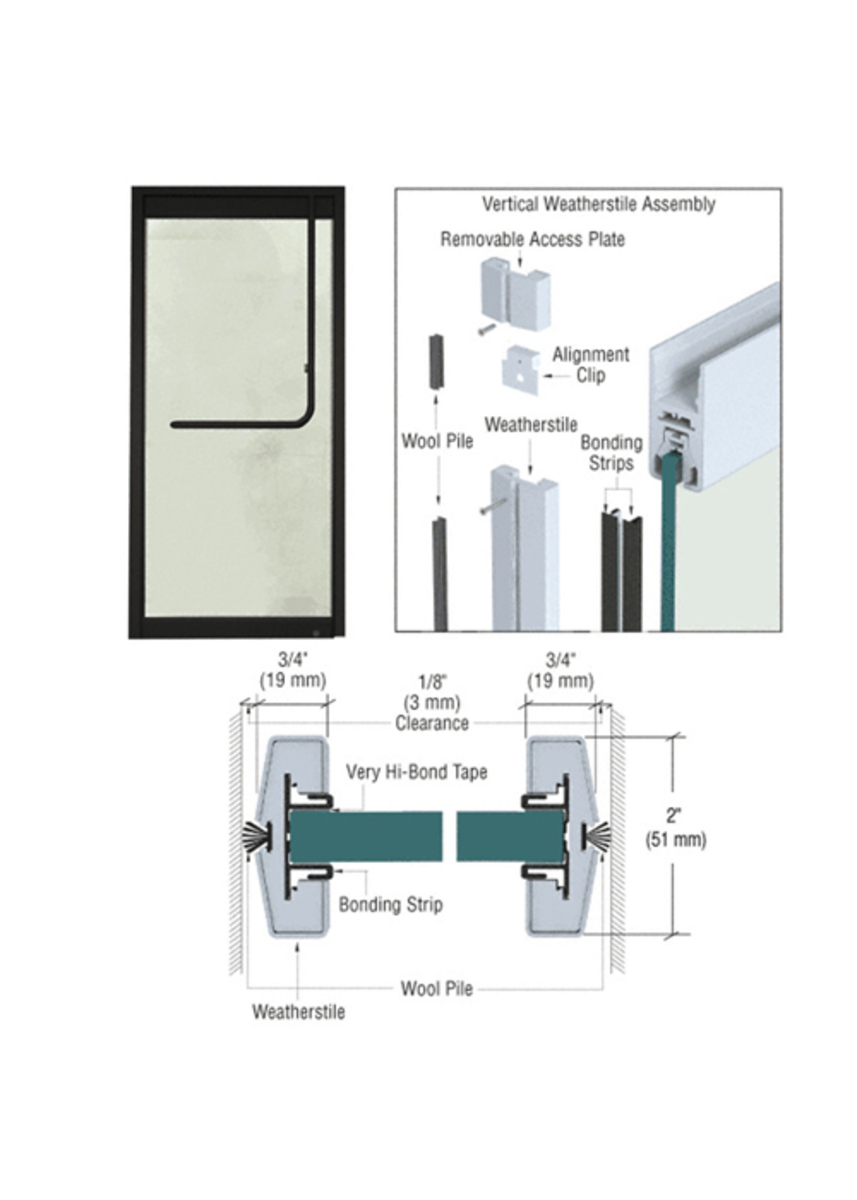

CRL Vertical Weatherstile Kits include two 117" (2.97 m) lengths of Weatherstile with Wool Pile Weatherstrip, one 120" (3.05 m) black EPDM Filler Strip (for double door applications), four 117" (2.97 m) lengths of Bonding Strips with Very Hi-Bond Tape, four 1-1/2" (38 mm) tall Weatherstripped Removable Access Plates with Alignment Clips, and installation instructions. Custom lengths up to 117" (2.97 m) are available on special order.

Resources

• Vertical Weatherstiles Installation Instructions
• W12 CAD Detail Drawings.dwg
• W12 CAD Detail Drawings.pdf
