CRL Y0001CR Floor-to-Ceiling Cable Kit for 1/4" to 3/8" GlassC.R. Laurence Y0001CR Floor to Ceiling Cable Kit for 1/4" to 3/8" Glass offers an exceptional solution for versatile glass installations. Designed for 1/4" to 3/8" (6 to 10 mm) glass, this shelving cable system allows for quick and effortless installation and reconfiguration. The high-quality components, including stainless steel cable and elegantly nickel-plated brass fittings, ensure a robust and stylish display suited for any environment, whether it’s an office, home, or retail space. This kit contains all essential cable components needed for ceiling-to-floor suspension or hanging vertical panels, showcasing signage or retail displays. Included are one 20' (6.1 m) length of cable, a tensioner, an adapter, two cable holders, and two cover disks. It is important to note that hanger bolts or threaded studs for ceiling or floor attachment and shelf connectors must be ordered separately. With a maximum weight capacity of 300 lbs. (136 kg) when secured properly, this system provides peace of mind. Each single connector supports 20 lbs. (9 kg), while double connectors hold up to 10 lbs. (4.5 kg). The C.R. Laurence Y0001CR system exemplifies cable technology at its finest, merging function with elegant design.
Floor to Ceiling Cable Kit for 1/4" to 3/8" Glass
- For 1/4" to 3/8" (6 to 10 mm) Glass
- Shelving Cable System That Can Be Quickly and Easily Installed and Reconfigured
- High Quality Components
- Stainless Steel Cable and Nickel Plated Components
CRL's
Cable System and Components for 1/4" to 3/8" (6 to 10 mm) glass offers all the options you will need for ceiling-to-floor suspension, shelving installations, hanging vertical panels, signage or retail displays. This versatile system is easily installed and adjusted. The elegantly designed components are fabricated from brass then are nickel plated, which provides compatibility with other fixtures or amenities in the office, home or retail environment. These CRL Display Systems represent cable technology in its finest form.

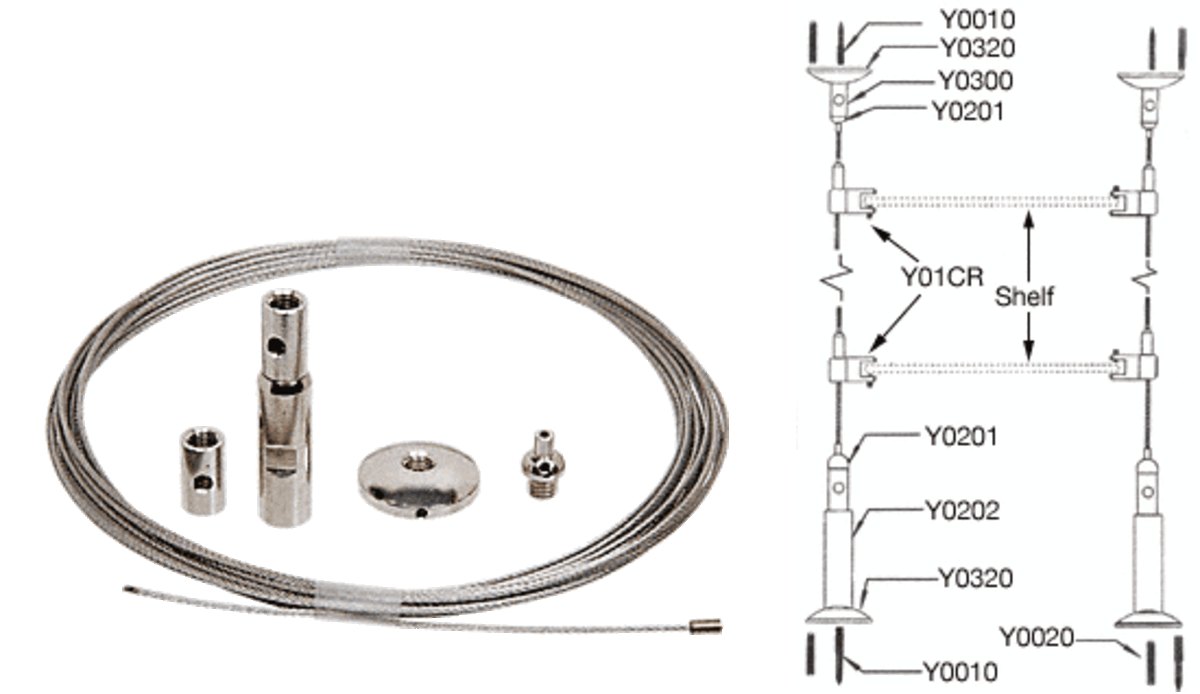

Contains all of the basic Cable components between the ceiling and floor or base: One 20' (6.1 m) length of Cable, one Tensioner, one Adapter, two Cable Holders, and two Cover Disks. Hanger Bolts or Threaded Studs for ceiling or floor attachment must be ordered separately. Shelf Connectors must also be ordered separately.
Weight Capacity: Four cables, securely and properly anchored to ceiling beams or studs have a maximum weight capacity of 300 lbs. (136 kg). Each Single Connector is rated at 20 lbs. (9 kg), Double Connectors are rated at 10 lbs. (4.5 kg). Due to the diversified variety of applications, weight limitations for the Cable Systems are dependent upon ceiling, wall or substrate anchoring.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Nickel
Glazing Thickness: 3/8 in. (10 mm)
Length - Cable: 20 ft. (6.1 m)
Material: Brass
Material - Cable: Stainless Steel
Shipping Limitations: None
Thickness: 2 mm
