CRL Z106BR Polished Brass Z-Series Large Round Clamp for 1/4" GlassC.R. Laurence Z106BR Polished Brass Z-Series Large Round Clamp for 1/4" Glass is an exceptional choice for securing glass in a variety of applications, including partitions, mezzanines, wind breaks, and railings. Designed specifically for 1/4" (6 mm) monolithic tempered glass, this clamp combines aesthetic appeal with robust functionality. The radius base design allows for seamless installation on 2" (6 mm) tubing, while included rubber gaskets ensure a secure fit. For added stability, each clamp comes with a steel pin that can be used by drilling a notch in the glass to prevent slippage, making it ideal for both interior and exterior applications. The Z-Series clamps are available in both round and square shapes and are constructed from durable materials, ensuring long-lasting performance. Custom painted finishes are also available upon request, allowing for flexibility in design to match any project. With a height of 2-1/4 inches and a width of 2-1/8 inches, this clamp is not only practical but also adds an elegant touch to any setting. Note that brass finishes may be prone to oxidation, giving them a unique character over time. For optimal performance, pin each glass panel as required when not supported from the bottom edge.
Polished Brass Z-Series Large Round Clamp for 1/4" Glass
- For 1/4" (6 mm) Glass
- An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
- May Be Used on Wood or Metal Radius
- Use Monolithic Tempered Glass
- Custom Painted Finishes Available Upon Request
CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc, or durable stainless steel construction. Z-Series glass clamps are available in sizes to accommodate glass thicknesses from 1/4" (6 mm).
The radius base design can be applied on 2" (6 mm) tubing. By drilling a notch in the glass, the pin included with each clamp can be used to eliminate glass slippage. Popular applications are partitions, mezzanines, wind breaks, railings and other commercial uses. CRL Cat. No. ZB0LT14 (Bolt) and Cat. No. RN1420 (Rivet-Nut) are used for securing z-clamp to tubing. Appropriate gaskets are included with each clamp.
Glass Fabrication: 1/2" (12 mm) notch is required if using provided steel pin.
Replacement Hardware: CRL P612 Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

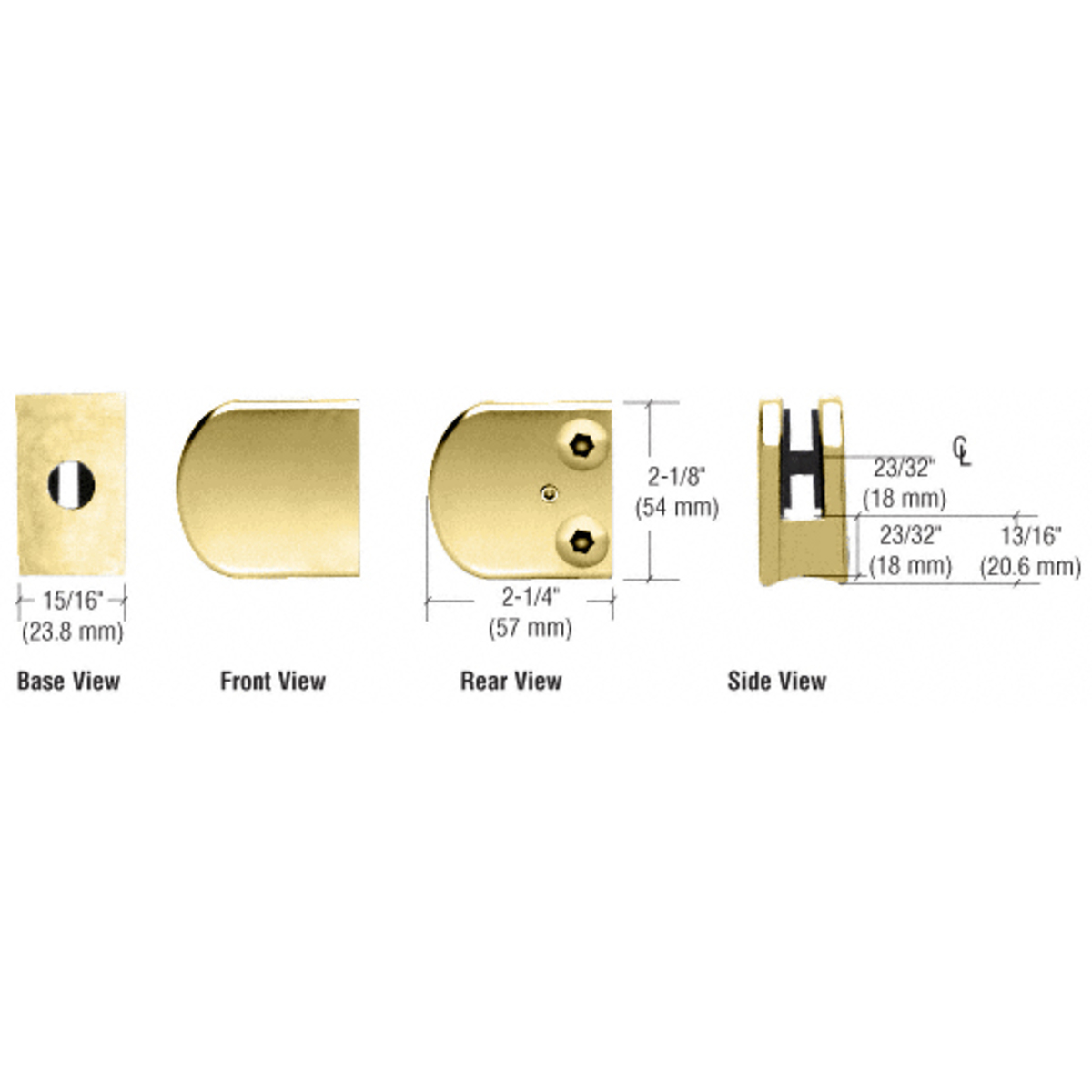

Attributes
Base Type: Radius
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 15/16 in. (24 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 1/4 in. (6 mm)
Height: 2-1/4 in. (57 mm)
Material: Zinc
Profile: Round
Shipping Limitations: None
Width: 2-1/8 in. (54 mm)
