CRL Z110BN Brushed Nickel Z-Series Large Round Clamp for 3/8" Glass

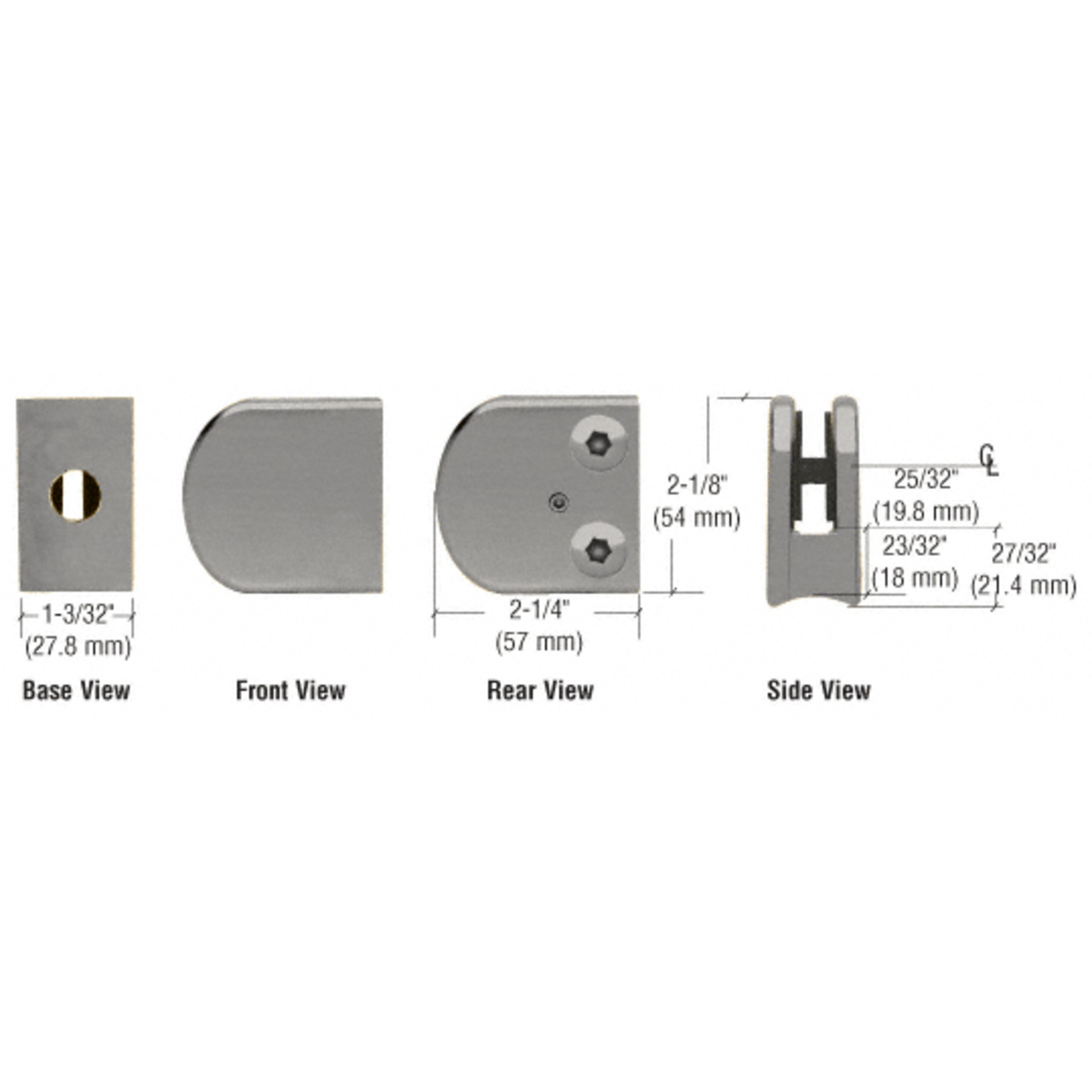

C.R. Laurence Z110BN Brushed Nickel Z-Series Large Round Clamp for 3/8" Glass offers a robust solution for securing glass panels in various applications. Designed specifically for 3/8" (10 mm) monolithic tempered glass, this clamp is an excellent choice for partitions, mezzanines, windbreaks, railings, and more. Its radius base design easily accommodates 2" (51 mm) tubing, providing flexibility for different installation scenarios. Constructed from durable zinc with a sleek brushed nickel finish, the Z110BN not only ensures strength but also adds a modern aesthetic to your project. The clamp features a pin that can be used to prevent glass slippage by drilling a 1/2" (12 mm) notch in the glass, making it ideal for both interior and exterior applications. Each clamp comes with appropriate gaskets for a secure fit and is compatible with CRL Cat. No.'s ZB0LT14 (Bolt) and RN1420 (Rivet-Nut) for easy installation. With dimensions of 2-1/4 in. (57 mm) in height, 2-1/8 in. (54 mm) in width, and a depth of 1-3/32 in. (28 mm), the Z110BN is designed to meet professional standards while ensuring safety and reliability. Custom painted finishes are also available upon request to match any design specifications.

Brushed Nickel Z-Series Large Round Clamp for 3/8" Glass

• For 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
• May Be Used on Wood or Metal Radius
• Custom Painted Finishes Available Upon Request

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Z-Clamp Tightening Sequence Information
• Z110 Glass Fabrication Template.dwg
• Z110 Glass Fabrication Template.pdf
