CRL Z206GP Gold Plated Z-Series Round Base Clamp, 2" Radius for 1/4" 5/16" Glass

CRL Z206GP Gold Plated Z-Series Round Base Clamp, 2" Radius for 1/4" 5/16" Glass

C.R. Laurence Z206GP Gold Plated Z-Series Round Type 2" Radius Base Clamp is expertly designed for securing glass panels ranging from 1/4" to 5/16" (6 to 8 mm) in thickness. This elegant clamp is crafted from durable zinc with a stunning gold-plated finish, making it ideal for both aesthetic appeal and long-lasting performance in various applications such as partitions, railings, and windbreaks. The radius back base design allows for seamless integration with 2" (50.8 mm) diameter round tubing, ensuring a secure and stable installation. For effective mounting on thin wall tubing (less than 1/8"), you can utilize CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Installation requires drilling a 17/32" (13.5 mm) hole and using the provided steel pin for additional glass support, which necessitates a 1/2" (12 mm) notch in the glass. Each clamp is supplied with rubber gaskets and a steel pin with grommet for optional use, enhancing the overall performance and stability of glass installations. To maintain optimal functionality, replacement gaskets can be ordered through CRL Cat. No. Z14RG. The Z206GP clamp is a perfect choice for professionals seeking reliability and style in glazing hardware.

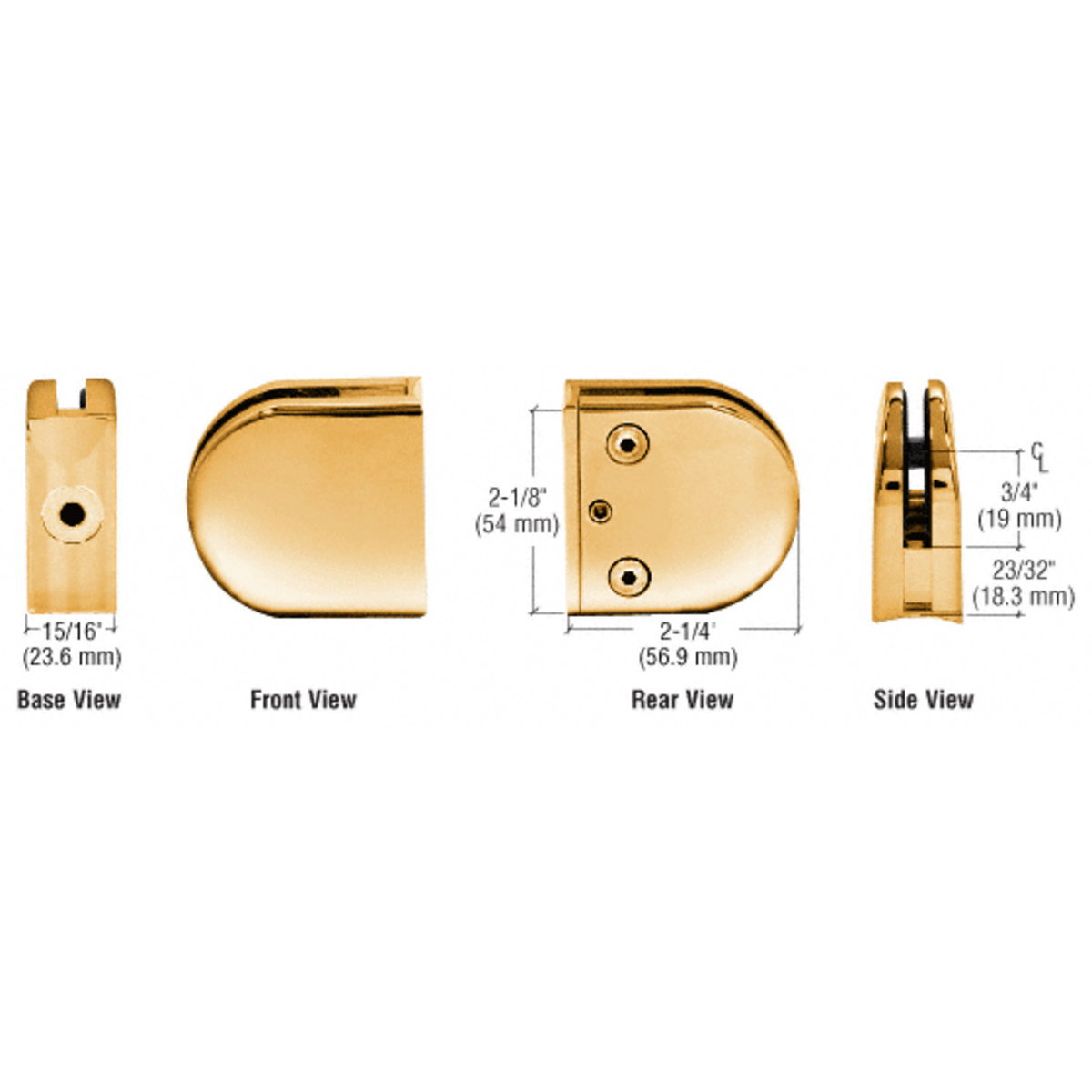

Gold Plated Z-Series Round Type 2" Radius Base Clamp for 1/4" and 5/16" Glass

Our CRL Z-Series Round Type Radius Base Glass Clamps are designed to be used on glass thickness of 1/4" up to 1/2" (6 to 12 mm), and are available in either zinc or stainless steel. The clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.


For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.

NOTE: 1/2" (12 mm) notch is required using the steel pin (included with the clamp) for additional glass support. Replacement gaskets are available by ordering CRL Cat. No. Z14RG.

SPECIFICATIONS:
Glass Thicknesses: Model for 1/4" to 5/16" (6 to 8 mm)
Base Design: Radius Back
For Use With: 2" (50.8 mm) Diameter Round Tubing.
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication: 1/2" (12 mm) notch required if using provided steel pin for glass support. Please click on Technical Details above for glass fabrication template.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet.
Replacement Hardware : CRL ZCS5X15BR for Replacement Screws


Product Warning:

For interior CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
