CRL Z210BN Brushed Nickel Z-Series 2
Images may not represent actual product and finish

CRL Z210BN Brushed Nickel Z-Series 2" Radius Zinc Clamp for 3/8" Glass

Your Price: $29.81
Retail Price:$35.68
Your Savings:$5.87(16%)
CRL Z210BN Brushed Nickel clamp securely holds 3/8" glass for railings and partitions, featuring durable zinc construction.
Part Number : CRL_Z210BN
Availability: 69 In Stock
CRL Z210BN Brushed Nickel Z-Series 2" Radius Zinc Clamp for 3/8" Glass

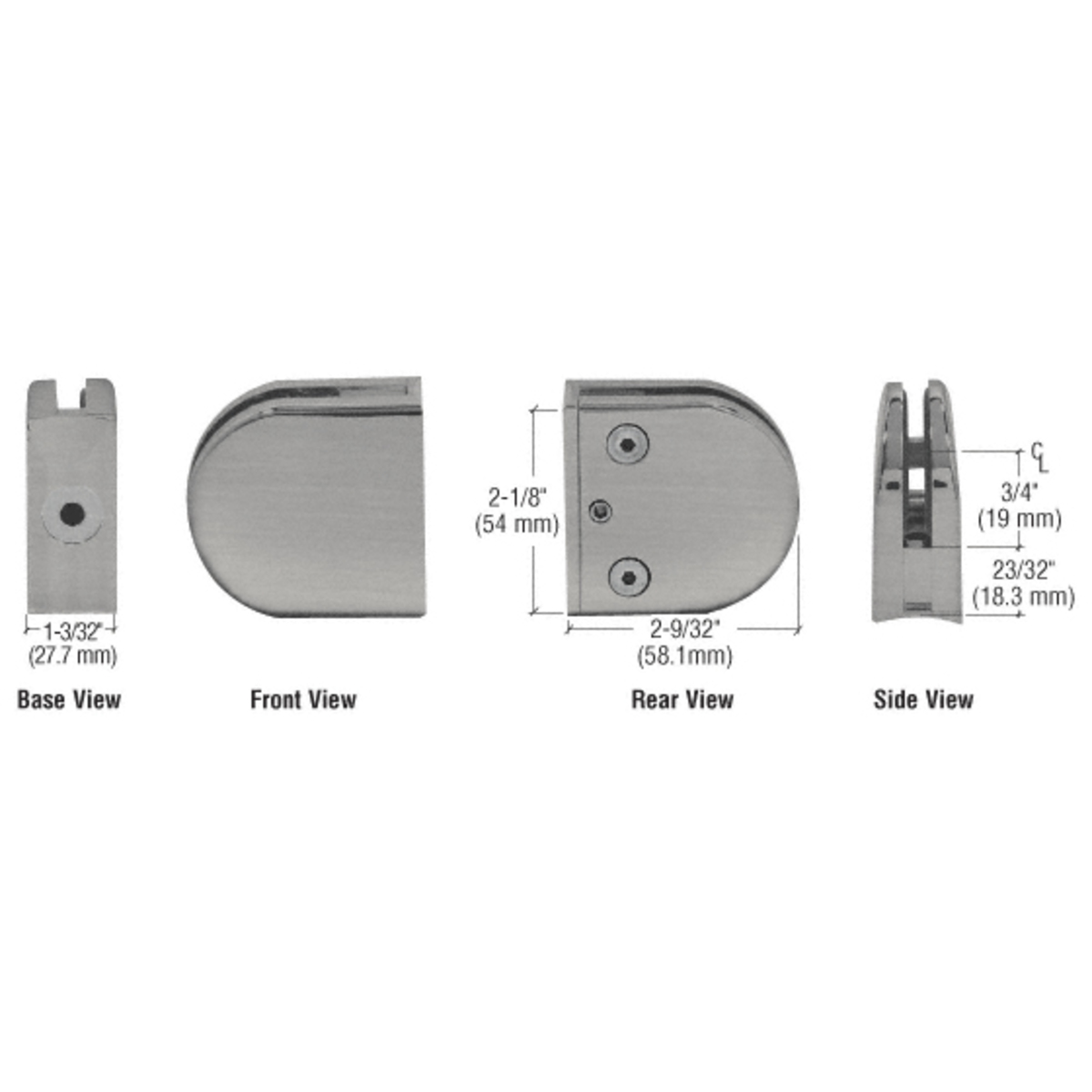

C.R. Laurence Z210BN Brushed Nickel Z-Series Round Type 2" Radius Base Zinc Clamp for 3/8" Glass combines functionality with a sleek design, making it an ideal choice for various applications such as mezzanines, partitions, railings, and windbreaks. Constructed from durable zinc, this clamp is engineered to securely hold 3/8" (10 mm) monolithic tempered glass, ensuring stability and safety in your projects. The innovative radius base design allows for easy installation on 1-1/2" or 2" (38 or 50.8 mm) diameter round tubing, while optional steel pins provide additional support for glass panels when needed. Each clamp comes with rubber gaskets and a steel pin, making it versatile for both interior and exterior applications. Engineered to exceed code standards, the Z210BN clamp offers reliability and peace of mind. Custom painted finishes are available upon request, allowing you to achieve the perfect look for your design. With dimensions of 2-1/8" width, 2-9/32" height, and a depth of 1-3/32", this clamp fits seamlessly into various architectural environments. Trust C.R. Laurence's commitment to quality and performance, making the Z210BN a vital component for your next glass installation project.

Brushed Nickel Z-Series Round Type 2" Radius Base Zinc Clamp for 3/8" Glass

  • For 3/8" (10 mm) Glass
  • Zinc Casting
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Tested and Engineered to Meet and Exceed Code Standards
  • Custom Painted Finishes Available Upon Request

Our CRL Z-Series Round Type Radius Base Glass Clamps are designed to be used on glass thickness of 1/4" up to 1/2" (6 to 12 mm), and are available in either zinc or stainless steel. The clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.


For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.

NOTE: 1/2" (12 mm) notch is required if using the steel pin (included with the clamp) for additional glass support.

SPECIFICATIONS:
Glass Thicknesses: For 3/8" (10 mm).
Base Design: Radius
For Use With: 1-1/2" or 2" (38 or 50.8 mm) Diameter Round Tubing
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) notch is required if using provided steel pin for glass support.
  • For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
    Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
    Replacement Hardware: CRL ZCS5X5SS for Replacement Screws & Replacement gaskets are available by ordering CRL Cat. No. Z38RG.


    Product Warning:

    For interior CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Base Type: Radius

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Depth: 1-3/32 in. (28 mm)

    Finish/ Color:: Brushed Nickel

    Glazing Thickness: 3/8 in. (10 mm)

    Height: 2-9/32 in. (58 mm)

    Material: Zinc

    Profile: Round

    Shipping Limitations: None

    Width: 2-1/8 in. (54 mm)
