CRL Z310PS Polished Stainless Z-Series 2" Radius Base Clamp for 3/8" GlassC.R. Laurence Z310PS Polished Stainless Z-Series Round Type 2" Radius Base Stainless Steel Clamp is expertly engineered for use with 3/8" (10 mm) glass, making it an ideal choice for various applications such as mezzanines, partitions, railings, and windbreaks. Designed for monolithic tempered glass, this clamp ensures a secure and reliable installation for both interior and exterior settings. Constructed from high-quality polished stainless steel, the Z310PS offers exceptional durability and resistance to corrosion, making it a long-lasting solution for your architectural needs. The clamp includes rubber gaskets and a steel pin for optional additional glass support, ensuring that your glass panels remain secure. If additional support is required, a 1/2" (12 mm) notch is necessary when using the steel pin. The clamp is designed to fit 1-1/2" or 2" (38 or 50.8 mm) diameter round tubing and can be customized with painted finishes upon request. For installation, simply drill a 17/32" (13.5 mm) hole and use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut for securing the clamp to thin wall tubing. With its polished finish and robust design, the CRL Z310PS clamp is a reliable choice for any professional or knowledgeable homeowner seeking quality architectural solutions.
Polished Stainless Z-Series Round Type 2" Radius Base Stainless Steel Clamp for 3/8" Glass
- For 3/8" (10 mm) Glass
- Use Monolithic Tempered Glass
- Use on Mezzanines, Partitions, Railings and Windbreaks
- Steel Pin Available for Additional Glass Support
- Custom Painted Finishes Available Upon Request
Our CRL Z-Series Round Type Radius Base Glass Clamps are designed to be used on glass thickness of 3/8" (10 mm), and are available in either zinc or stainless steel. The clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s
ZB0LT Socket Head Cap Bolt and
ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.
NOTE: 1/2" (12 mm) notch is required if using the steel pin (included with the clamp) for additional glass support. Replacement gaskets are available by ordering CRL Cat. No. Z38RG.
SPECIFICATIONS:
Glass Thicknesses: Models for For 3/8" (10 mm).
Base Design: Radius
For Use With: 1-1/2" or 2" (38 or 50.8 mm) Diameter Round Tubing
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm)
Thick Glass: 1/2" (12 mm) notch is required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
Replacement Hardware: CRL ZCS5X15SS for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

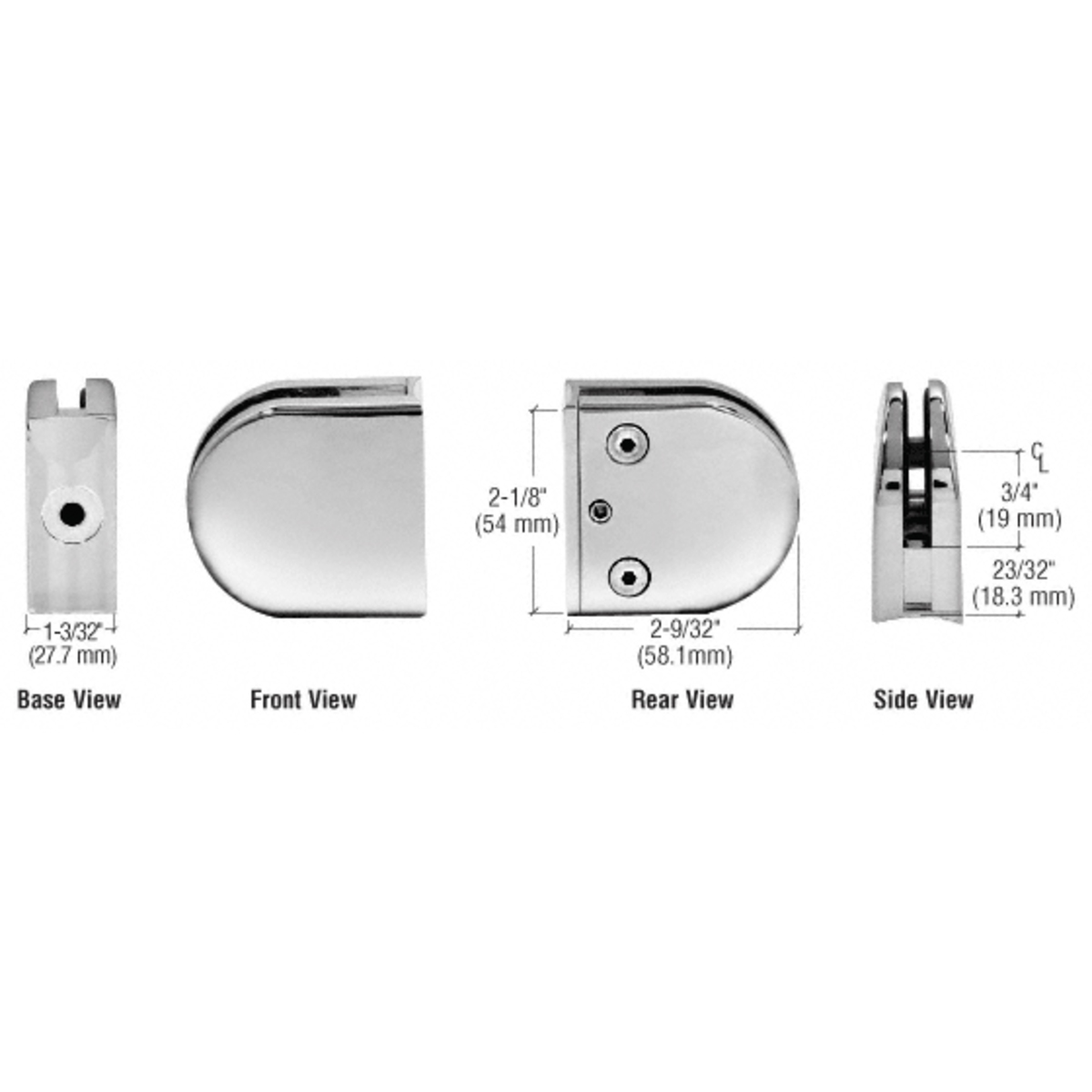

Attributes
Base Type: Radius
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 1-3/32 in. (28 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. (10 mm)
Height: 2-9/32 in. (58 mm)
Material: Stainless Steel
Profile: Round
Shipping Limitations: None
Width: 2-1/8 in. (54 mm)
