CRL Z406CH Chrome Z-Series Round Flat Base Zinc Clamp for 1/4" 5/16" Glass

C.R. Laurence Z406CH Chrome Z-Series Round Type Flat Base Zinc Clamp is expertly designed for securing 1/4" and 5/16" (6 and 8 mm) tempered glass in a variety of applications such as mezzanines, partitions, railings, and windbreaks. Crafted from durable zinc, this round base clamp combines functionality with a sleek chrome finish, ensuring an appealing aesthetic for both interior and exterior projects. Featuring a flat base design, the Z406CH is compatible with square tubing or other flat surfaces, delivering reliable support where it’s needed most. The clamp comes complete with rubber gaskets and a steel pin, which can be utilized for additional glass support-especially crucial for installations where the glass is not bottom-supported. Custom painted finishes are also available upon request, allowing for personalization to match any design scheme. For installation, a 17/32" (13.5 mm) hole is required, while a larger 1/2" (12 mm) hole is necessary if employing the steel pin. This clamp is an ideal choice for professionals seeking a robust and stylish solution for their glazing needs, ensuring that every glass panel is securely held in place and meets the highest standards of safety and design.

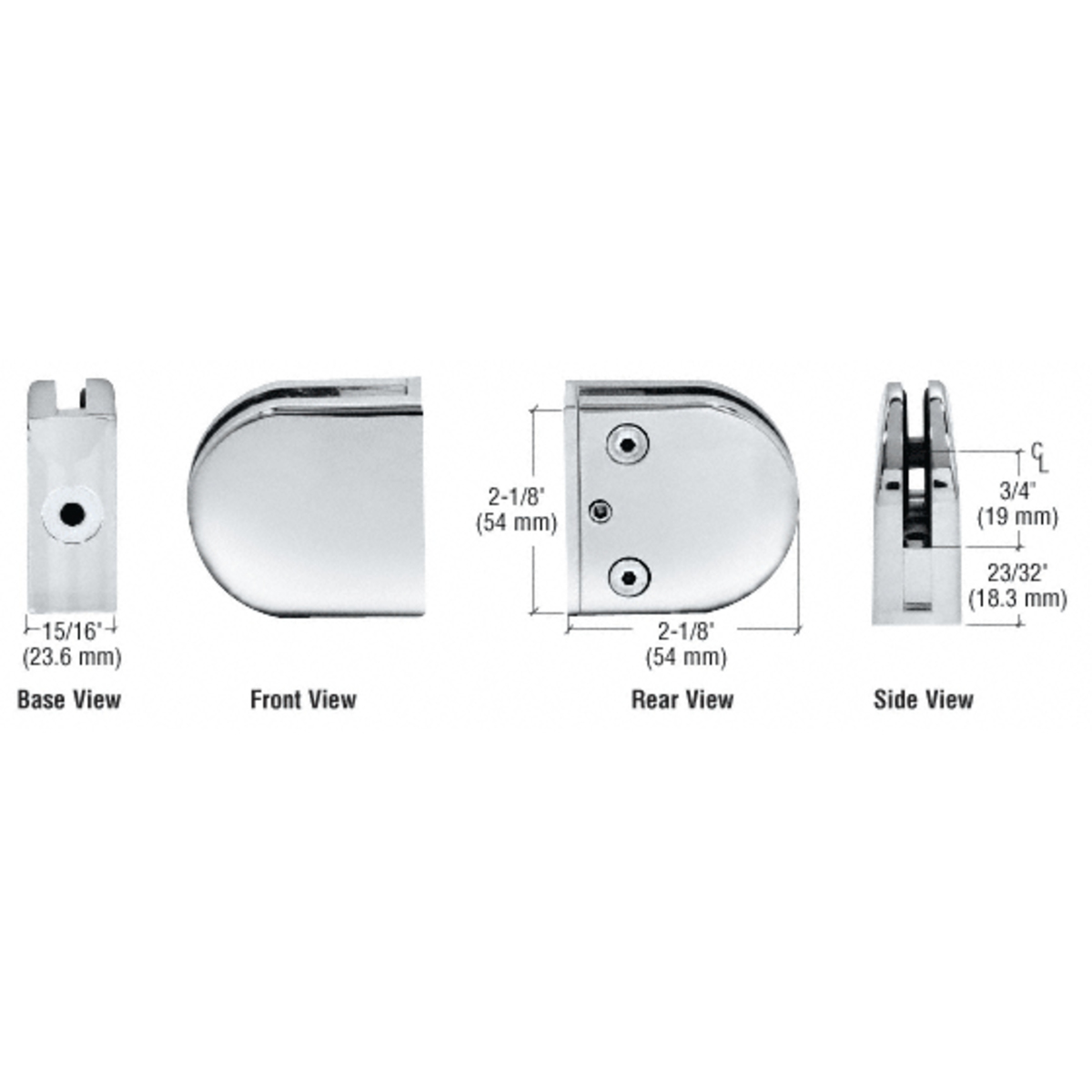

Chrome Z-Series Round Type Flat Base Zinc Clamp for 1/4" and 5/16" Glass

• For 1/4" and 5/16" (6 and 8 mm) Glass
• Replacement Gaskets are Available by Ordering Cat. No. Z14RG
• For Use on Mezzanines, Partitions, Railings and Windbreaks
• Use Monolithic Tempered Glass
• Steel Pin Available for Additional Glass Support
• Custom Painted Finishes Available Upon Request

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Z-Clamp Tightening Sequence Information
• Z406 Z506 Detailed CAD Drawings.dwg
• Z406 Z506 Detailed CAD Drawings.pdf
• Z406 Z506 Glass Fabrication Template.dwg
• Z406 Z506 Glass Fabrication Template.pdf
