CRL Z406W Z-Series Round Flat Base Zinc Clamp for 1/4" 5/16" Glass

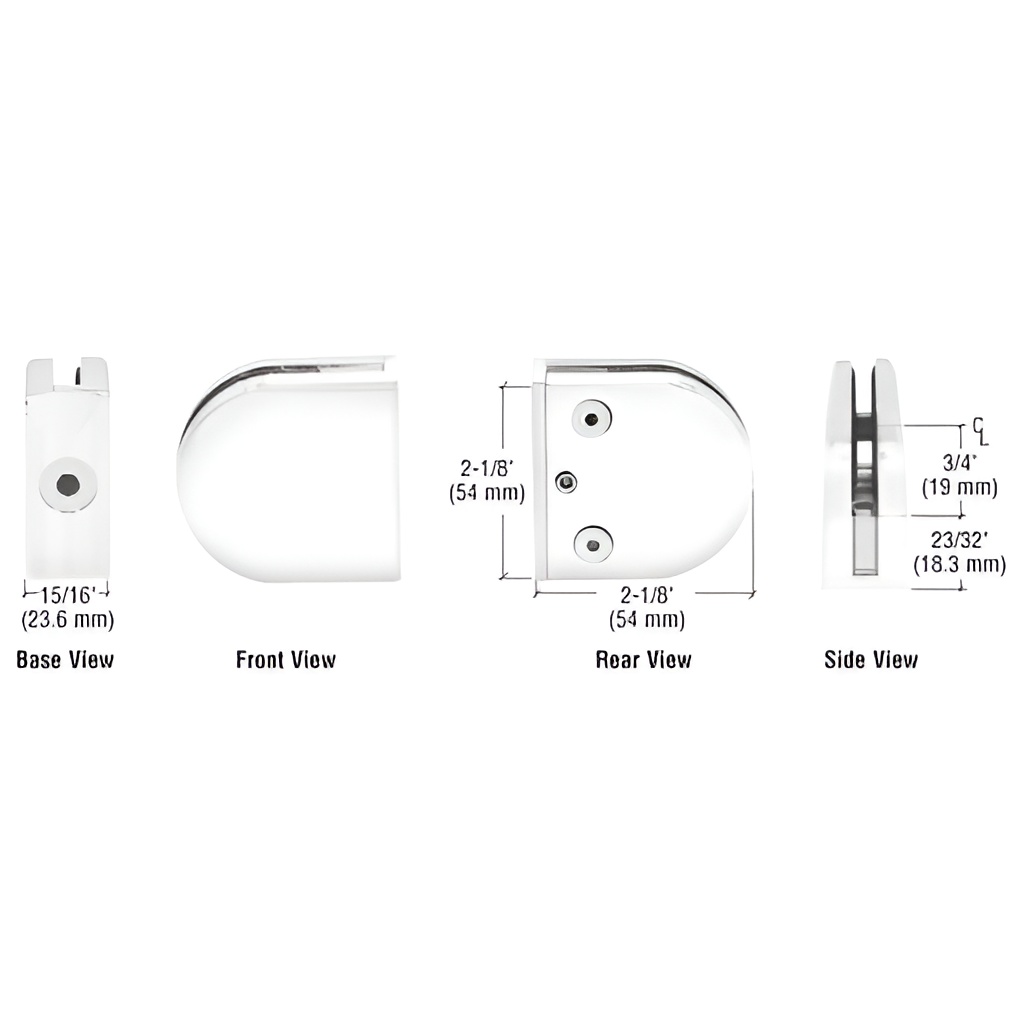

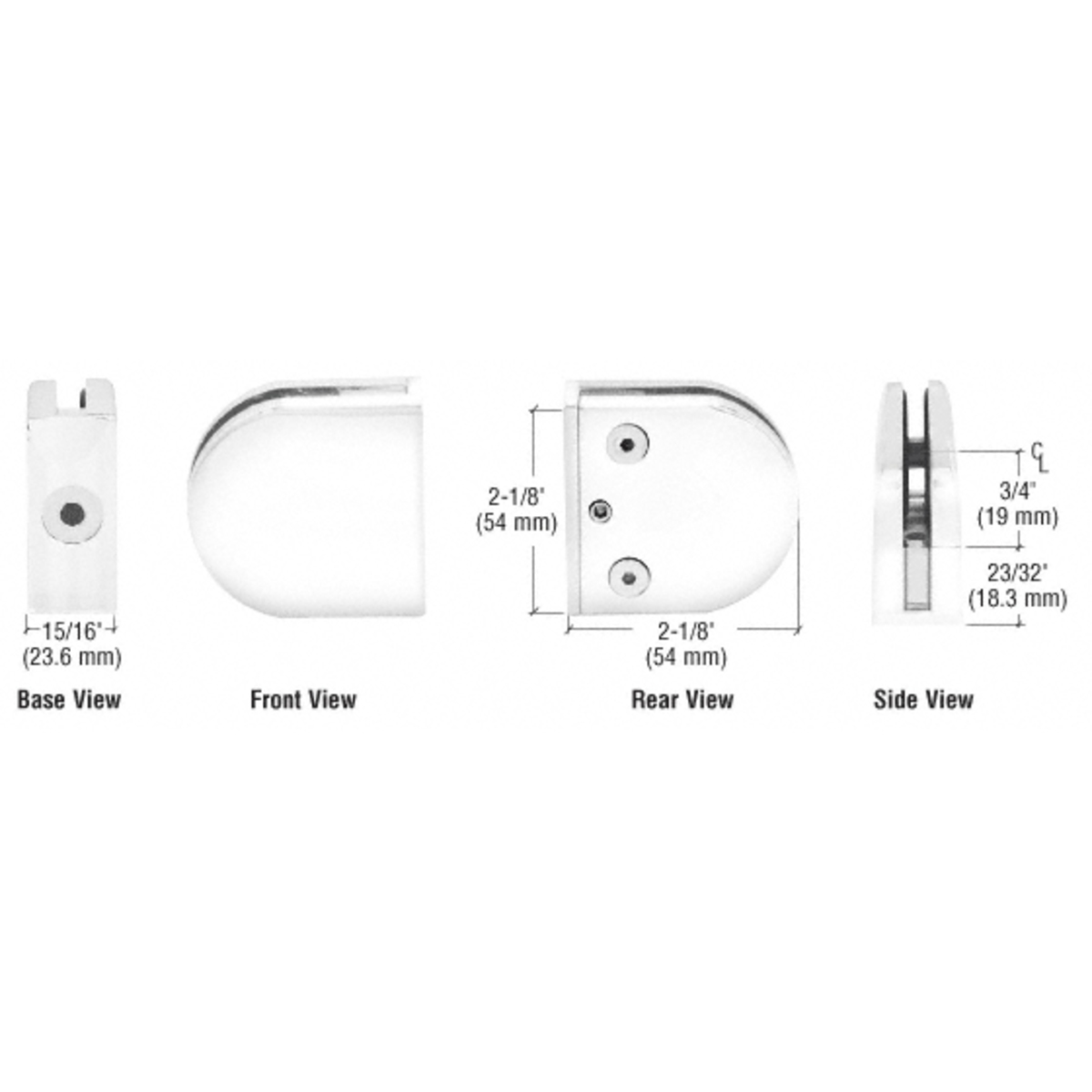

C.R. Laurence Z406W White Z-Series Round Type Flat Base Zinc Clamp is expertly designed to accommodate 1/4" and 5/16" (6 and 8 mm) tempered glass, making it an ideal solution for a variety of applications including mezzanines, partitions, railings, and windbreaks. Crafted from durable zinc, this clamp offers both strength and reliability, while custom painted finishes are available upon request to match your specific project needs. The flat base design ensures a secure attachment to square tubing or other flat surfaces, providing stability and support for your glass installations. Included with each clamp are rubber gaskets and a steel pin for optional use, enhancing security by preventing glass panel slippage. For enhanced support when using the steel pin, a 1/2" (12 mm) hole is required for 1/4" and 5/16" glass, ensuring a robust installation. With a height and width of 2-1/8" (54 mm) and a depth of 15/16" (24 mm), the Z406W clamp is both compact and efficient. It is easy to install with the recommended CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut for secure fastening. Additionally, replacement gaskets can be ordered separately with Cat. No. Z14RG, ensuring your projects remain seamless and professional-grade.

White Z-Series Round Type Flat Base Zinc Clamp for 1/4" and 5/16" Glass

• For 1/4" and 5/16" (6 and 8 mm) Glass
• Replacement Gaskets are Available by Ordering Cat. No. Z14RG
• For Use on Mezzanines, Partitions, Railings and Windbreaks
• Use Monolithic Tempered Glass
• Steel Pin Available for Additional Glass Support
• Custom Painted Finishes Available Upon Request

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Z-Clamp Tightening Sequence Information
• Z406 Z506 Detailed CAD Drawings.dwg
• Z406 Z506 Detailed CAD Drawings.pdf
• Z406 Z506 Glass Fabrication Template.dwg
• Z406 Z506 Glass Fabrication Template.pdf
