CRL Z512PS Polished Stainless Z-Series Round Flat Base Clamp for 1/2" Glass

CRL Z512PS Polished Stainless Z-Series Round Flat Base Clamp for 1/2" Glass

C.R. Laurence Z512PS Polished Stainless Z-Series Round Type Flat Base Stainless Steel Clamp for 1/2" Glass offers a robust solution for a variety of applications, from mezzanines to railings and windbreaks. Engineered for 1/2" (12 mm) glass, this clamp is available in high-quality stainless steel or zinc, ensuring durability and aesthetic appeal in both interior and exterior settings. The Z-Series clamp features a flat base design, making it ideal for installation on square tubing or other flat surfaces. Each unit includes rubber gaskets and a steel pin that provides additional glass support when needed. The clamp is versatile, accommodating glass thicknesses of 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) with the appropriate hole sizes for installation. For 1/2" (12 mm) glass, a 9/16" (14 mm) hole is required to use the steel pin effectively. Customization options, including painted finishes, are available upon request to match any design aesthetic. With its polished stainless steel finish, the Z512PS not only delivers functionality but also enhances the visual appeal of your glass installations. Trust C.R. Laurence for quality and reliability in your architectural projects.

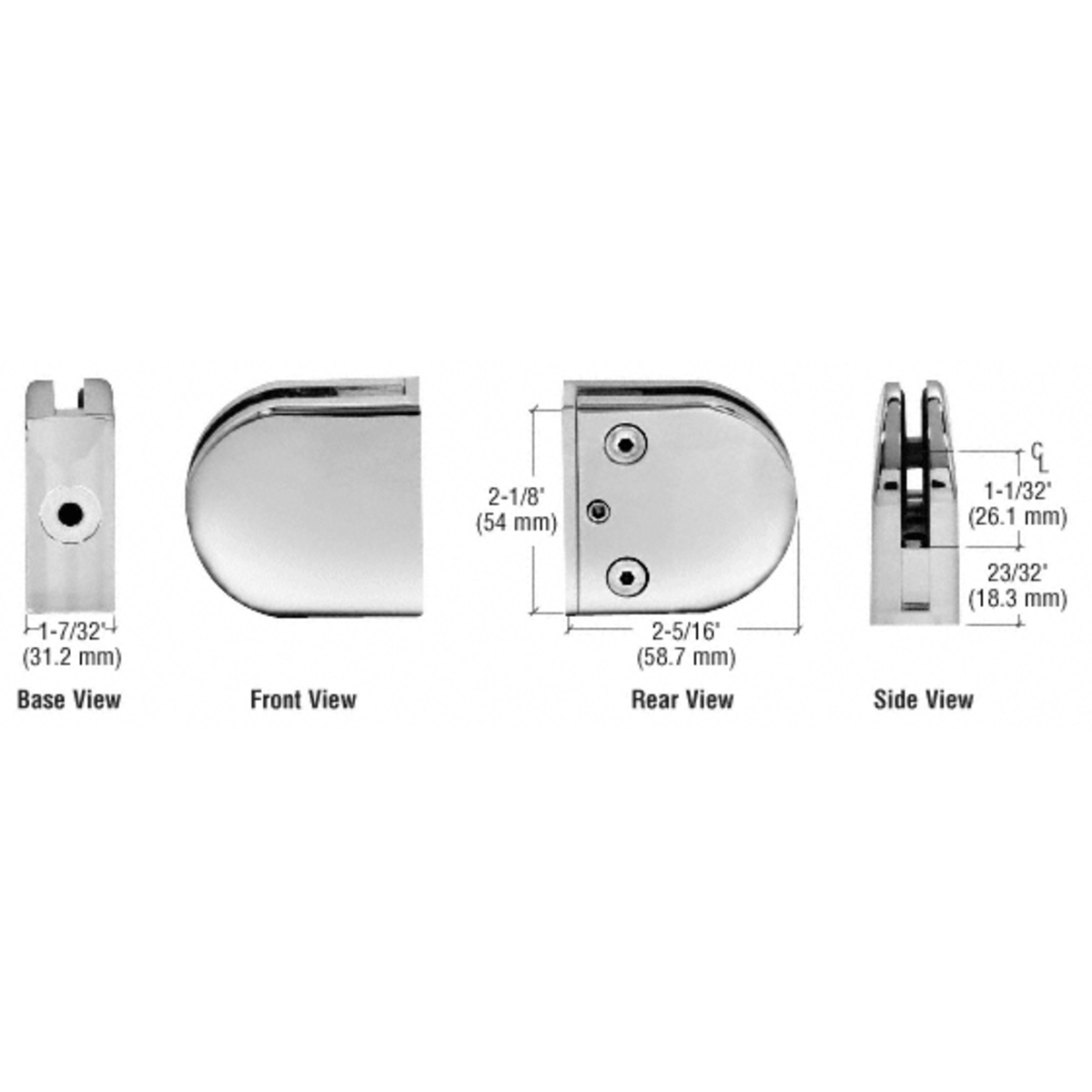

Polished Stainless Z-Series Round Type Flat Base Stainless Steel Clamp for 1/2" Glass

• For 1/2" (12 mm) Glass
• Replacement Gaskets are Available by Ordering Cat. No. Z12RG
• For Use on Mezzanines, Partitions, Railings and Windbreaks
• Use Monolithic Tempered Glass
• Steel Pin Available for Additional Glass Support
• Custom Painted Finishes Available Upon Request

This CRL Z-Series Round Type Flat Base Glass Clamp is designed to be used on glass thickness of 1/2" (12 mm) Glass. Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.


For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.

NOTE: 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.

SPECIFICATIONS
Glass Thicknesses: For 1/2" (12 mm).
Base Design: Flat
For Use With:Square Tubing or Other Flat Surfaces
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
Replacement Hardware: CRL ZCS5X15SS for Replacement Screws


Product Warning:

For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.

Stainless Steel Advisory:
