CRL Z606W Z-Series White Square Radius Base Zinc Clamp for 1/4" 5/16" Glass

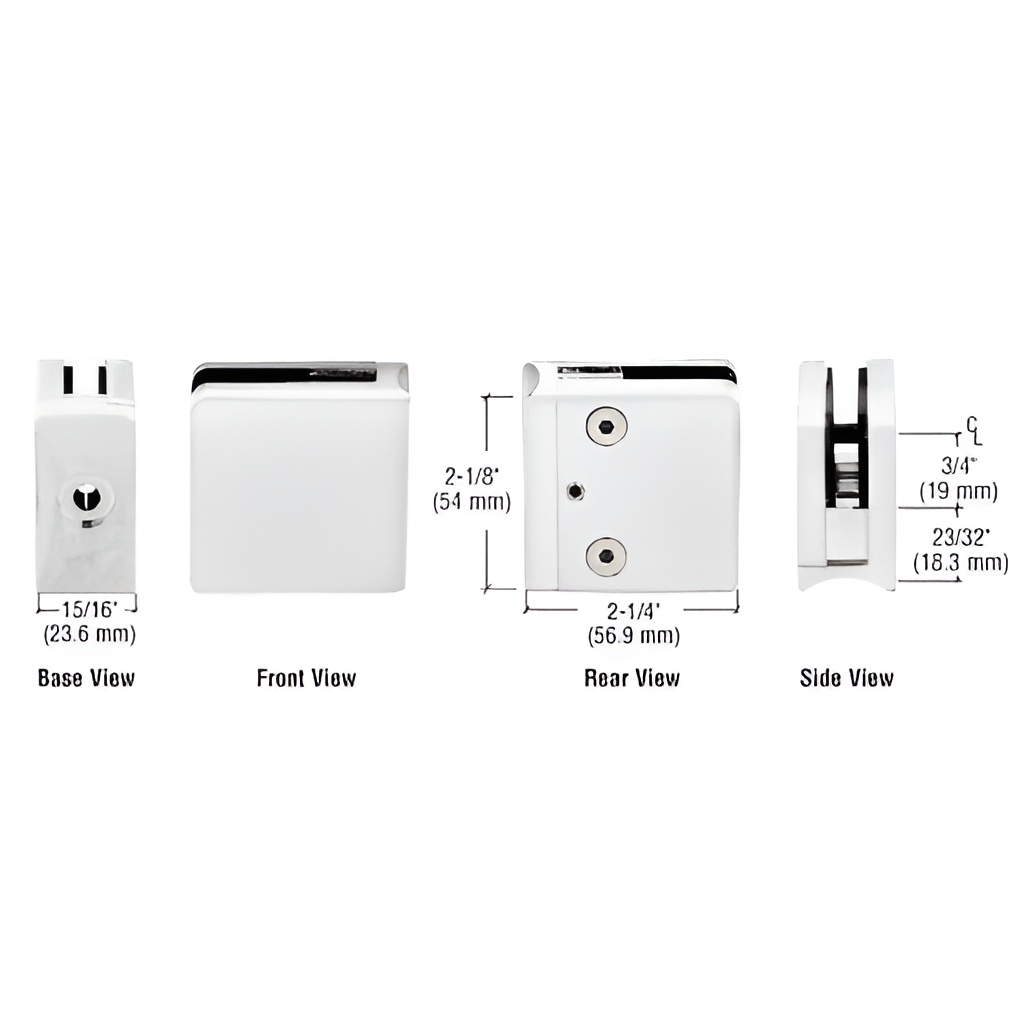

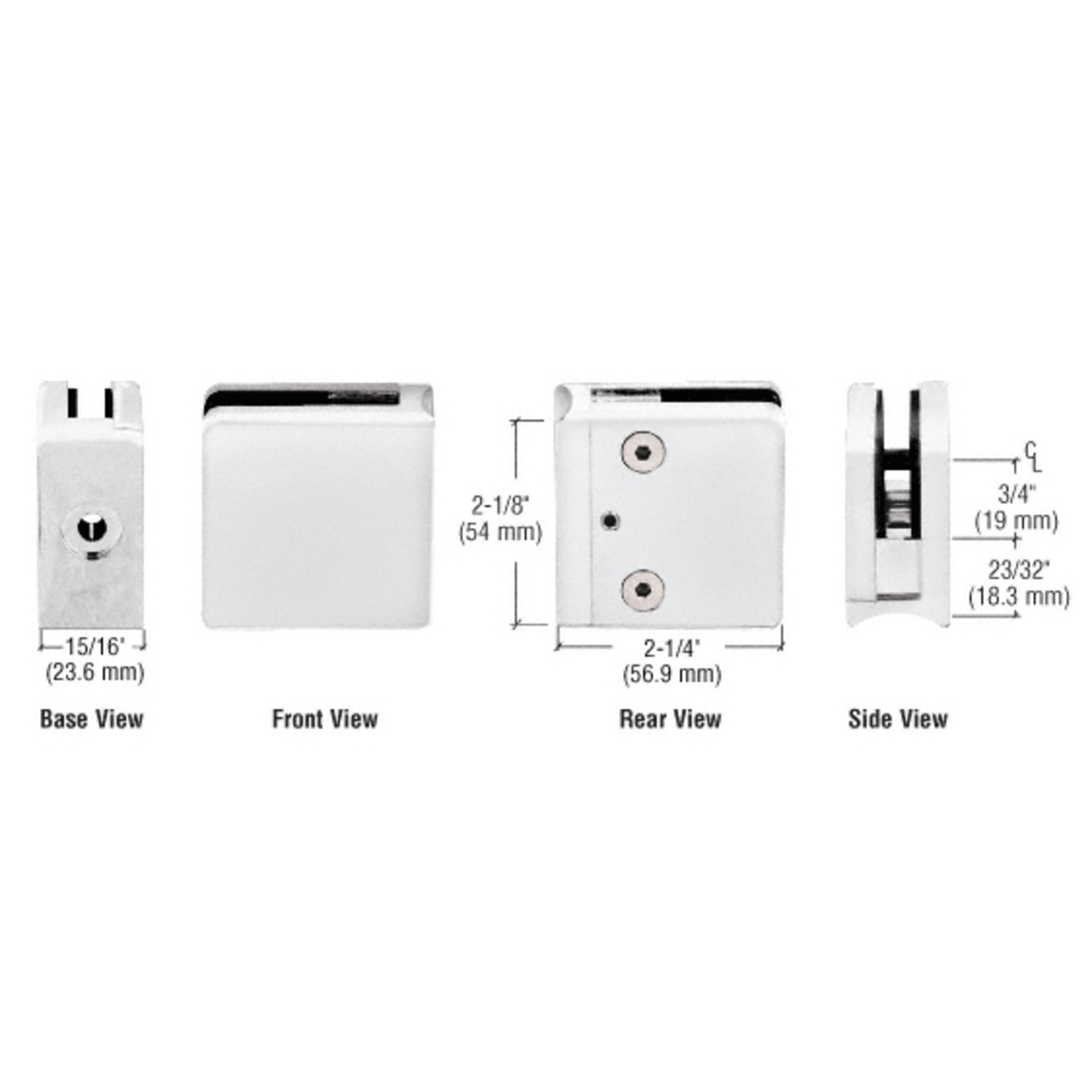

C.R. Laurence Z606W White Z-Series Square Type Radius Base Zinc Clamp for 1/4" and 5/16" Glass is the ideal solution for securing glass in a variety of applications, including mezzanines, partitions, railings, and windbreaks. Designed specifically for use with monolithic tempered glass, this clamp accommodates glass thicknesses of 1/4" (6 mm) and 5/16" (8 mm). Constructed from durable zinc, the Z606W features a radius base design that not only provides a sleek aesthetic but also ensures robust support. For additional glass stability, a steel pin is included, requiring a 1/2" (12 mm) hole for installation. The clamp is compatible with 2" (51 mm) diameter round tubing, making it versatile for various projects. Each clamp comes with rubber gaskets for a secure fit and the option to customize with powder-painted finishes upon request, enhancing its suitability for exterior applications. With dimensions of 2-1/8" wide, 2-1/4" high, and a depth of 15/16", this clamp is designed for seamless integration into your architectural designs. C.R. Laurence recommends pinning each glass panel when not supported from the bottom to prevent slippage, ensuring a safe and reliable installation.

White Z-Series Square Type Radius Base Zinc Clamp for 1/4" and 5/16" Glass

• For 1/4" and 5/16" (6 and 8 mm) Glass
• Use Monolithic Tempered Glass
• For Use on Mezzanines, Partitions, Railings and Windbreaks
• Use Monolithic Tempered Glass
• Steel Pin Available for Additional Glass Support
• Custom Painted Finishes Available Upon Request

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Z-Clamp Tightening Sequence Information
• Z606 Z706 Detailed CAD Drawings.dwg
• Z606 Z706 Detailed CAD Drawings.pdf
• Z606 Z706 Glass Fabrication Template.dwg
• Z606 Z706 Glass Fabrication Template.pdf
