CRL Z906BS Brushed Stainless Steel Z-Series Square Flat Base ClampC.R. Laurence Z906BS Brushed Stainless Steel Z-Series Square Type Flat Base Glass Clamp offers a robust solution for securing glass panels in various applications, including mezzanines, partitions, railings, and windbreaks. Designed for glass thicknesses of 1/4" to 5/16" (6 mm to 8 mm), this clamp features a flat base that easily mounts onto square tubing or other flat surfaces, ensuring a secure and stable installation. The Z-Series Clamp includes an optional steel pin that provides additional support for heavier glass panels, enhancing overall safety and reliability. For installation, a 17/32" (13.5 mm) hole is required, with a 1/2" (12 mm) hole needed if the steel pin is utilized. Each clamp is equipped with rubber gaskets and a grommet, delivering a complete package for effective glass securing. Available in brushed stainless steel and custom-painted finishes upon request, this clamp not only ensures functionality but also complements various design aesthetics. The CRL Z906BS is suitable for both interior and exterior applications, making it a versatile choice for building professionals and knowledgeable homeowners alike. Ensure your glass panels are securely fastened with this dependable and stylish clamp from C.R. Laurence.
Brushed Stainless Steel Z-Series Square Type Flat Base Stainless Steel Clamp
- For 1/4" and 5/16" (6 and 8 mm) Glass
- Replacement Gaskets are Available by Ordering Cat. No. Z14SG
- For Use on Mezzanines, Partitions, Railings and Windbreaks
- Use Monolithic Tempered Glass
- Steel Pin Available for Additional Glass Support
- Custom Painted Finishes Available Upon Request
This
CRL Z-Series Square Type Flat Base Glass Clamp is designed to be used on glass thickness of 1/4" to 5/16" (6 to 8 mm). The flat base allows for installation onto Square Tubing or other flat surfaces. The Clamp includes an optional Steel Pin for additional weight support. These clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s
ZB0LT Socket Head Cap Bolt and
ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.
NOTE : 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.
SPECIFICATIONS:
Glass Thicknesses: For 1/4" and 5/16" (6 and 8 mm).
Base Design: Flat.
For Use With: Square Tubing or Other Flat Surfaces.
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using steel pin (included) for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using steel pin (included) for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet.
Replacement Hardware : CRL ZCS5X15SS for Replacement Screws & Replacement gaskets are available by ordering CRL Cat. No. Z14SG.
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

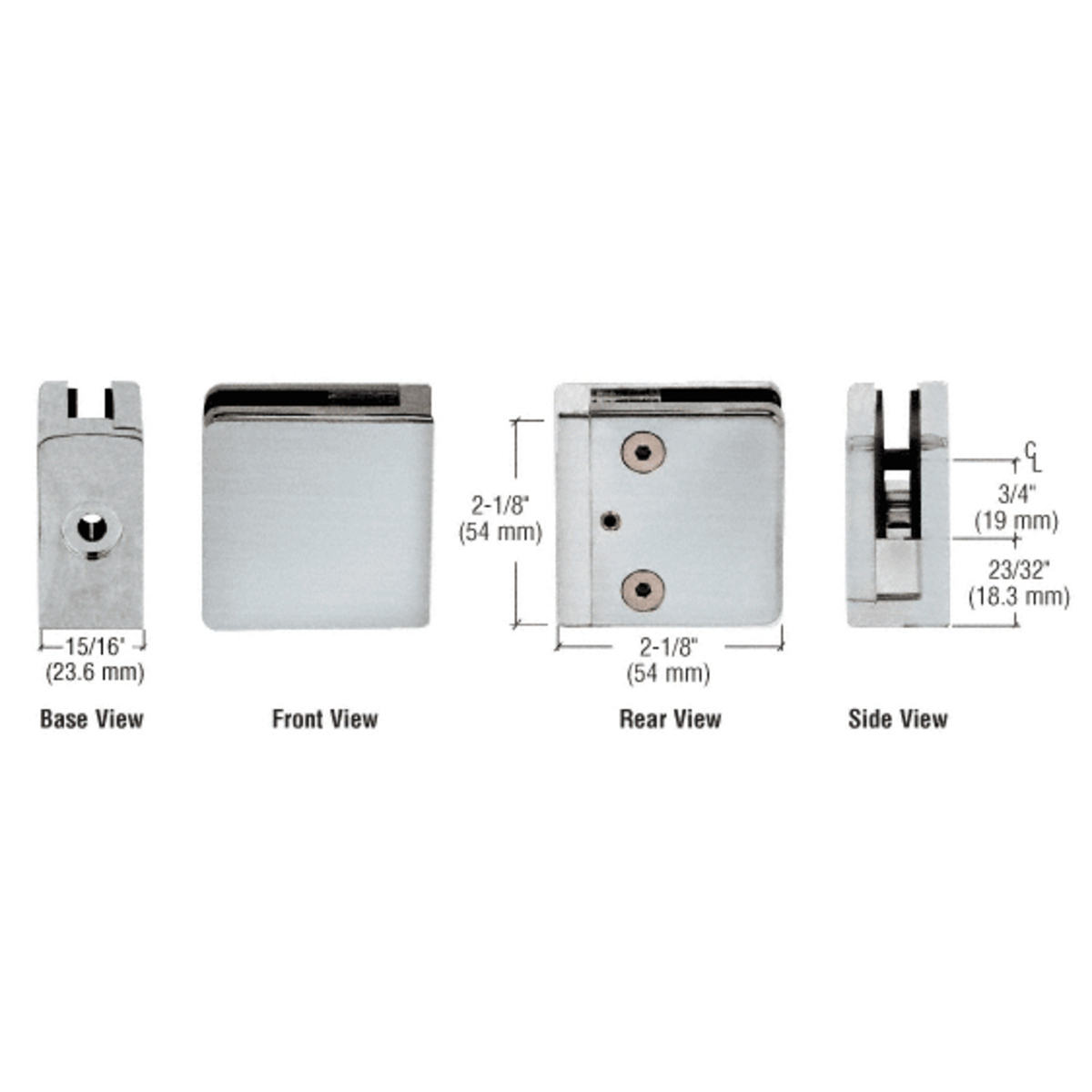

Attributes
Base Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 15/16 in. (24 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/4 in. To 5/16 in. (6 mm To 8 mm)
Height: 2-1/8 in. (54 mm)
Material: Stainless Steel
Profile: Square
Shipping Limitations: None
Width: 2-1/8 in. (54 mm)
