CRL Z906PS Polished Stainless Steel Z-Series Square Flat Base ClampC.R. Laurence Z906PS Polished Stainless Steel Z-Series Square Type Flat Base Stainless Steel Clamp is engineered for secure glass installation, accommodating 1/4" and 5/16" (6 and 8 mm) glass thicknesses. The flat base design allows for seamless installation onto square tubing or other flat surfaces, making it ideal for a variety of applications including mezzanines, partitions, railings, and windbreaks. This clamp is constructed from durable polished stainless steel, ensuring longevity and resistance to corrosion while maintaining its aesthetic appeal. For added stability, a steel pin is included for optional use, providing additional support when required. The clamp also comes equipped with rubber gaskets and has replacement options available through CRL Cat. No. Z14SG. Installation is straightforward, requiring a 17/32" (13.5 mm) hole for standard use or a 1/2" (12 mm) hole if utilizing the steel pin. For securing to thin wall tubing, CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut are recommended. With custom painted finishes available upon request, the CRL Z906PS clamp not only offers functional excellence but also the versatility to match any design aesthetic. This product is an ideal solution for building professionals seeking reliable and stylish glass support.
Polished Stainless Steel Z-Series Square Type Flat Base Stainless Steel Clamp
- For 1/4" and 5/16" (6 and 8 mm) Glass
- Replacement Gaskets are Available by Ordering Cat. No. Z14SG
- For Use on Mezzanines, Partitions, Railings and Windbreaks
- Use Monolithic Tempered Glass
- Steel Pin Available for Additional Glass Support
- Custom Painted Finishes Available Upon Request
This
CRL Z-Series Square Type Flat Base Glass Clamp is designed to be used on glass thickness of 1/4" to 5/16" (6 to 8 mm). The flat base allows for installation onto Square Tubing or other flat surfaces. The Clamp includes an optional Steel Pin for additional weight support. These clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s
ZB0LT Socket Head Cap Bolt and
ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.
NOTE : 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.
SPECIFICATIONS:
Glass Thicknesses: For 1/4" and 5/16" (6 and 8 mm).
Base Design: Flat.
For Use With: Square Tubing or Other Flat Surfaces.
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using steel pin (included) for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using steel pin (included) for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet.
Replacement Hardware : CRL ZCS5X15SS for Replacement Screws & Replacement gaskets are available by ordering CRL Cat. No. Z14SG.
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

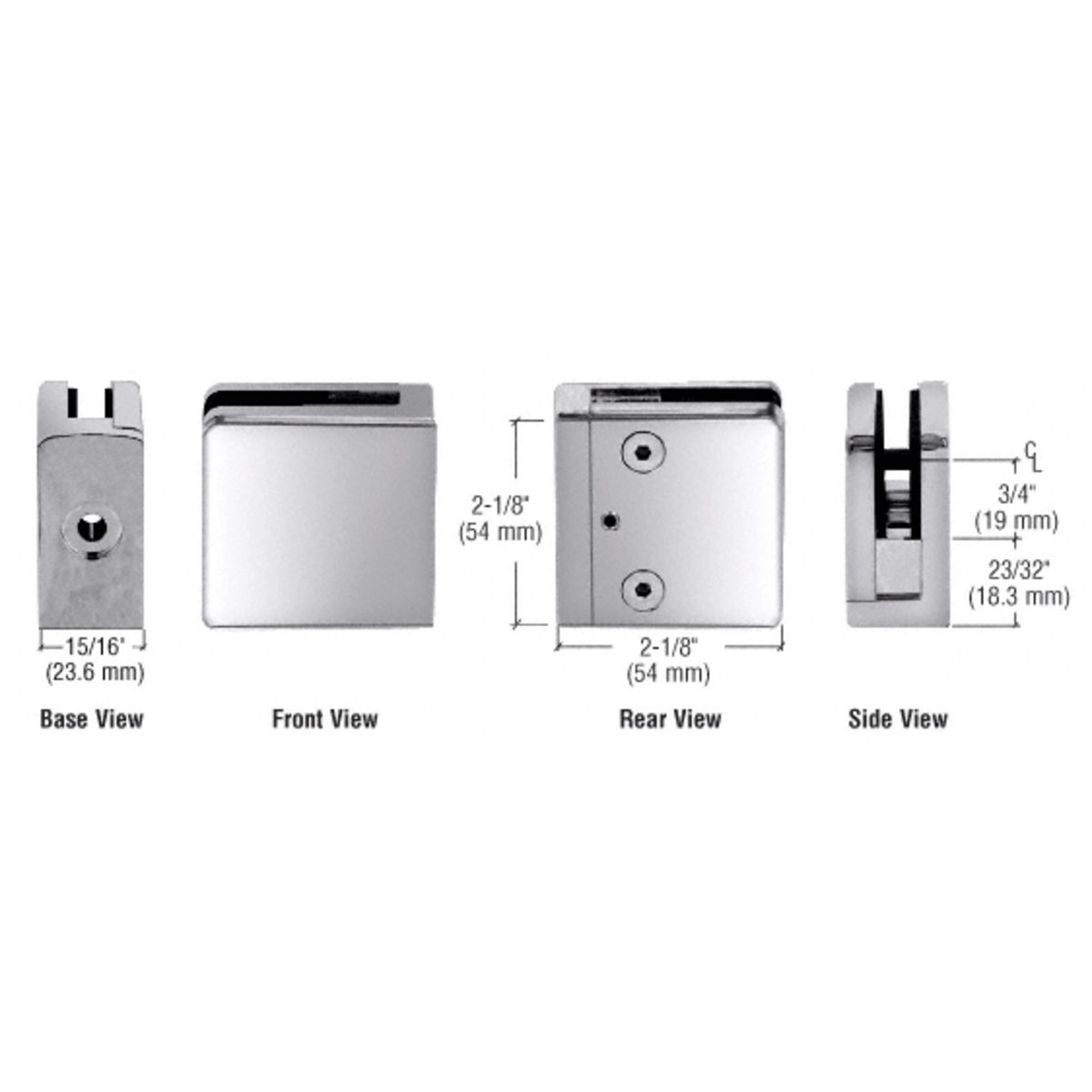

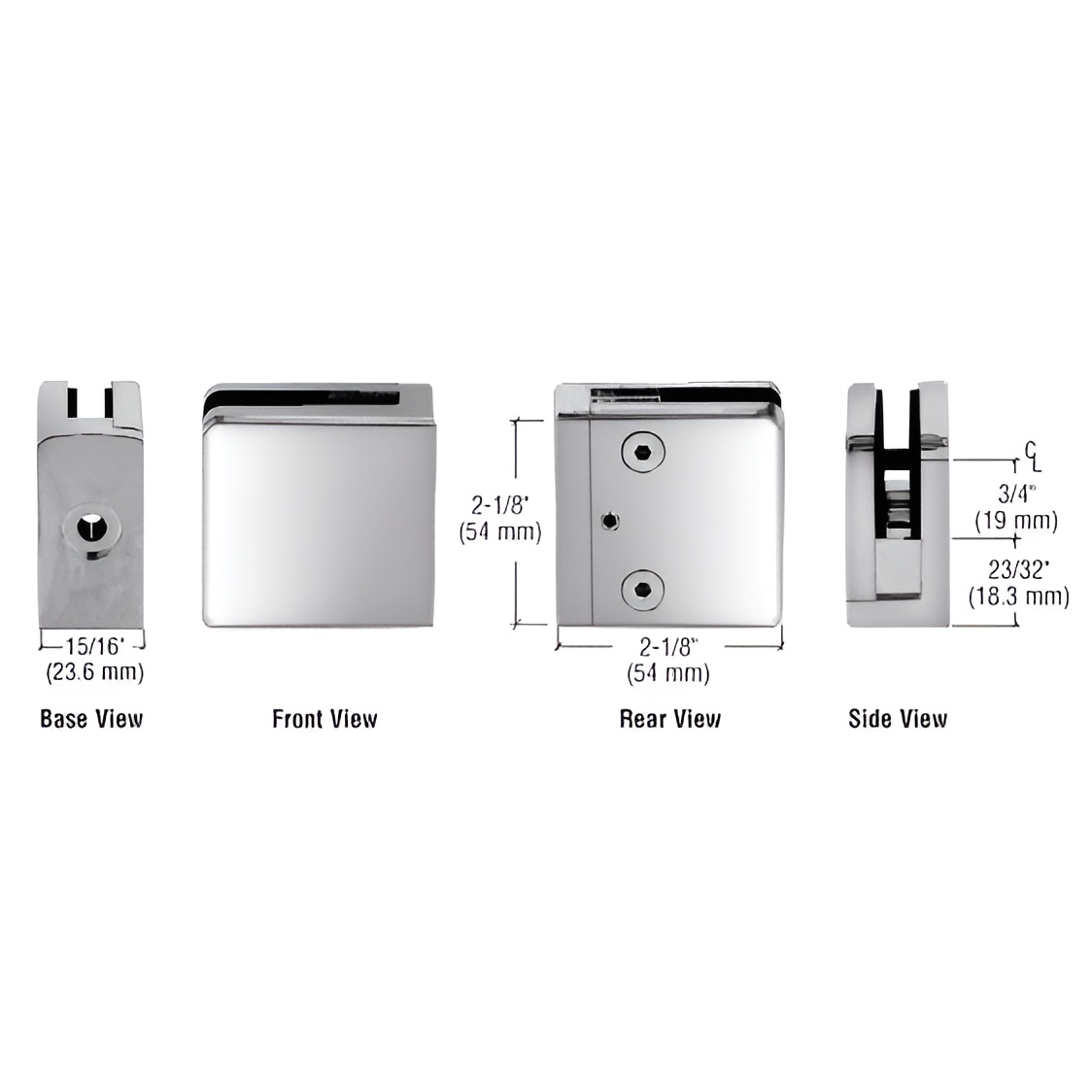

Attributes
Base Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 15/16 in. (24 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 1/4 in. To 5/16 in. (6 mm To 8 mm)
Height: 2-1/8 in. (54 mm)
Material: Stainless Steel
Profile: Square
Shipping Limitations: None
Width: 2-1/8 in. (54 mm)
