CRL Z912PS Polished Stainless Z-Series Square Flat Base Clamp for 1/2" GlassC.R. Laurence Z912PS Polished Stainless Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass is a robust and stylish solution for securing glass in a variety of applications. Designed specifically for 1/2" (12 mm) glass thickness, this clamp is ideal for use on mezzanines, partitions, railings, and windbreaks. Crafted from polished stainless steel, it offers both durability and aesthetic appeal, making it suitable for both interior and exterior environments. The clamp features a flat base design, allowing for secure installation on square tubing or other flat surfaces. For enhanced glass support, a steel pin is included, which requires a 9/16" (14.3 mm) hole for installation. Replacement gaskets (Cat. No. Z12SG) are readily available, ensuring long-term performance and usability. For easy installation, utilize CRL's ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut, with a 17/32" (13.5 mm) hole for thin wall tubing installation. The Z912PS clamp is designed with safety in mind; it is recommended to pin each glass panel as necessary to prevent slippage. With its polished finish and reliable construction, the C.R. Laurence Z912PS is the perfect choice for professionals seeking quality and style in glass fastening solutions.
Polished Stainless Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass
- For 1/2" (12 mm) Glass Thickness
- Replacement Gaskets are Available by Ordering Cat. No. Z12SG
- For Use on Mezzanines, Partitions, Railings and Windbreaks
- Use Monolithic Tempered Glass
- Steel Pin Available for Additional Glass Support
- Custom Painted Finishes Available Upon Request
This
CRL Z-Series Square Type Flat Base Glass Clamp is designed to be used on glass 1/2" (12 mm) thickness. Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s
ZB0LT Socket Head Cap Bolt and
ZRNUT Rivet-Nut. For installation, drill a 17/32" (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16" Mandrel and Nosepiece.
NOTE: 9/16" (14.3 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.
SPECIFICATIONS:
Glass Thicknesses: For 1/2" (12 mm).
Base Design: Flat
For Use With: Square Tubing or Other Flat Surfaces
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
Replacement Hardware: CRL ZCS5X15SS for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

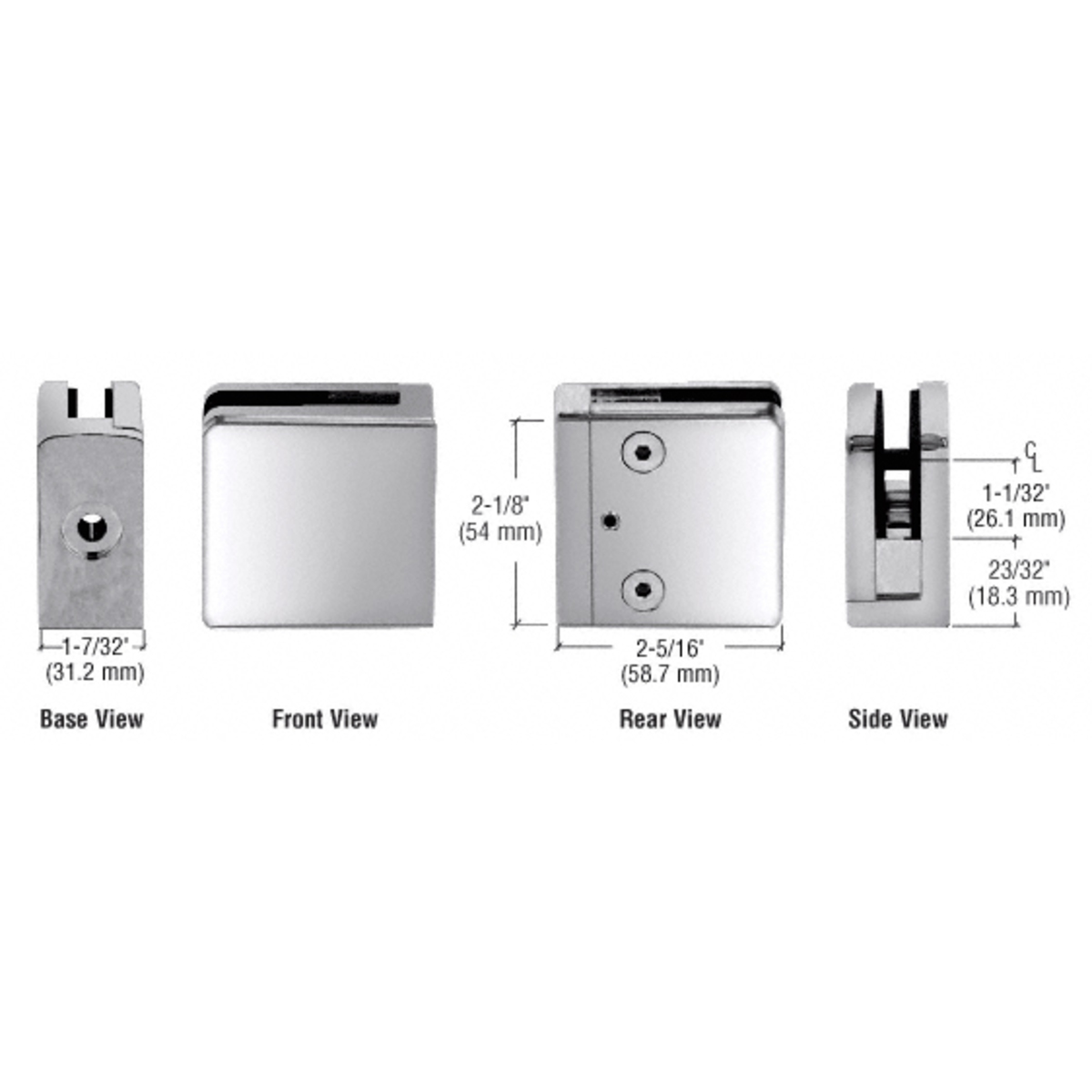

Attributes
Base Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 1-7/32 in. (31 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Height: 2-5/16 in. (59 mm)
Material: Stainless Steel
Profile: Square
Shipping Limitations: None
Width: 2-1/8 in. (54 mm)
