CRL Z934MBL Matte Black Z-Series Flat Surface Mount Square Glass Clamps for 3/4" Glass

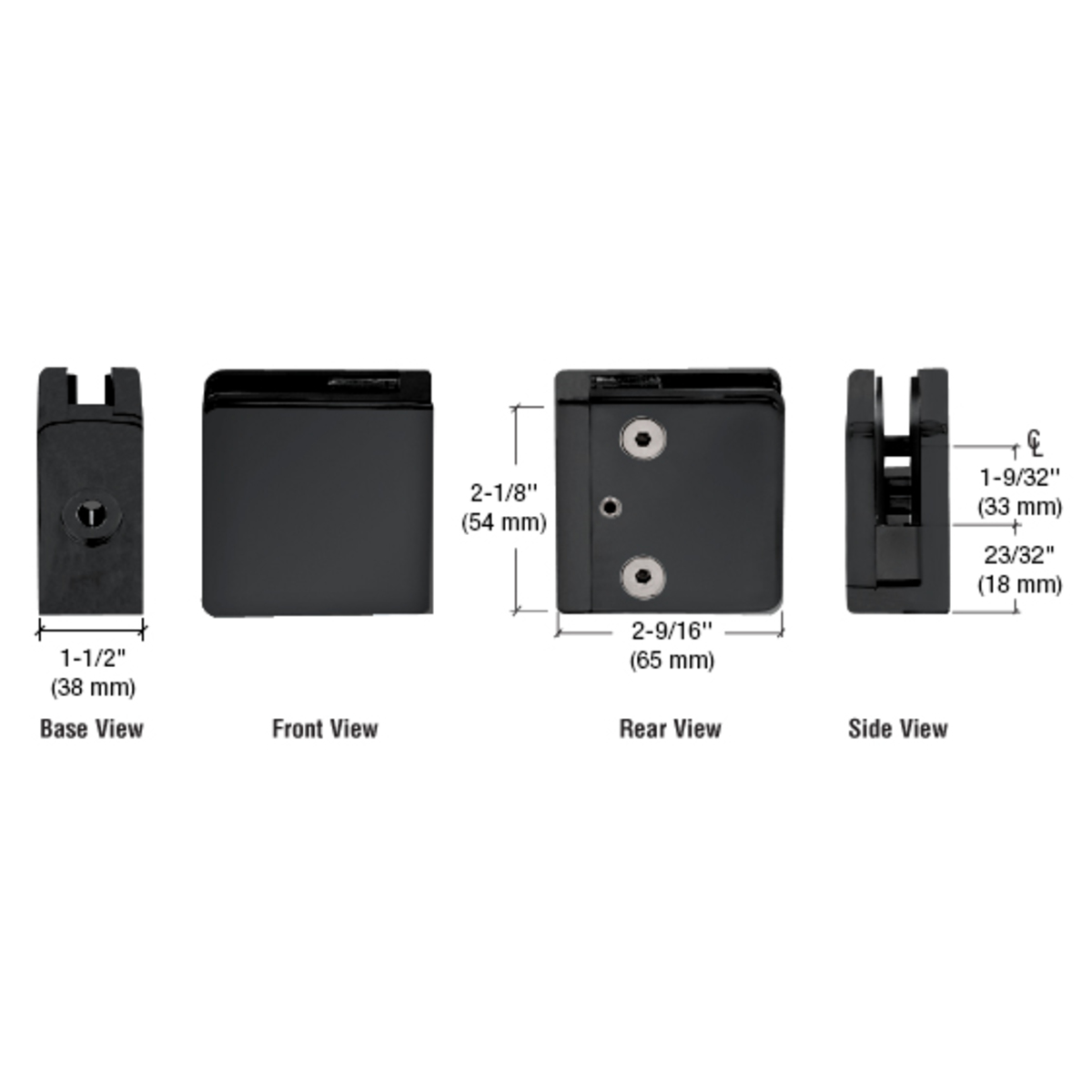

C.R. Laurence Z934MBL Matte Black Z-Series Flat Surface Mount Square Type Glass Clamps are expertly designed for use with 3/4" (19 mm) monolithic tempered glass. Crafted from durable 316 alloy stainless steel, these clamps offer exceptional strength and corrosion resistance, making them suitable for both interior and exterior applications. The flat base design allows for easy installation on square tubing or other flat surfaces, ensuring versatility in various architectural projects. Each clamp requires a 7/8" (22 mm) diameter finger notch for proper glass fabrication and is supplied with essential rubber gaskets and a steel pin to securely hold the glass panels in place. For enhanced safety, C.R. Laurence recommends pinning each glass panel to prevent slippage when they are not supported from the bottom edge. With a sleek matte black finish, the Z934MBL clamps not only provide functional support but also deliver a modern aesthetic that complements a range of design styles. Custom painted finishes are available upon request, allowing for tailored solutions to meet specific project needs. Measuring 2-5/16" (59 mm) in height and 2-1/8" (54 mm) in width, these clamps are a reliable choice for professionals seeking high-quality glazing solutions.

Matte Black Z-Series Flat Surface Mount Square Type Glass Clamps for 3/4" Glass

• For Use with Square Tubing or Other Flat Surfaces
• 316 Alloy Stainless Steel
• For 3/4" (19 mm) Glass (Flat Surface Mounting)
• Use Monolithic Tempered Glass
• Custom Painted Finishes Available Upon Request

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Z-Clamp Tightening Sequence Information
• Z934XX Glass Fabrication Template.dwg
• Z934XX Glass Fabrication Template.pdf
