CRL ZL810CH Chrome Z-Series Flat Base Zinc Clamp for 3/8" 1/2" Glass

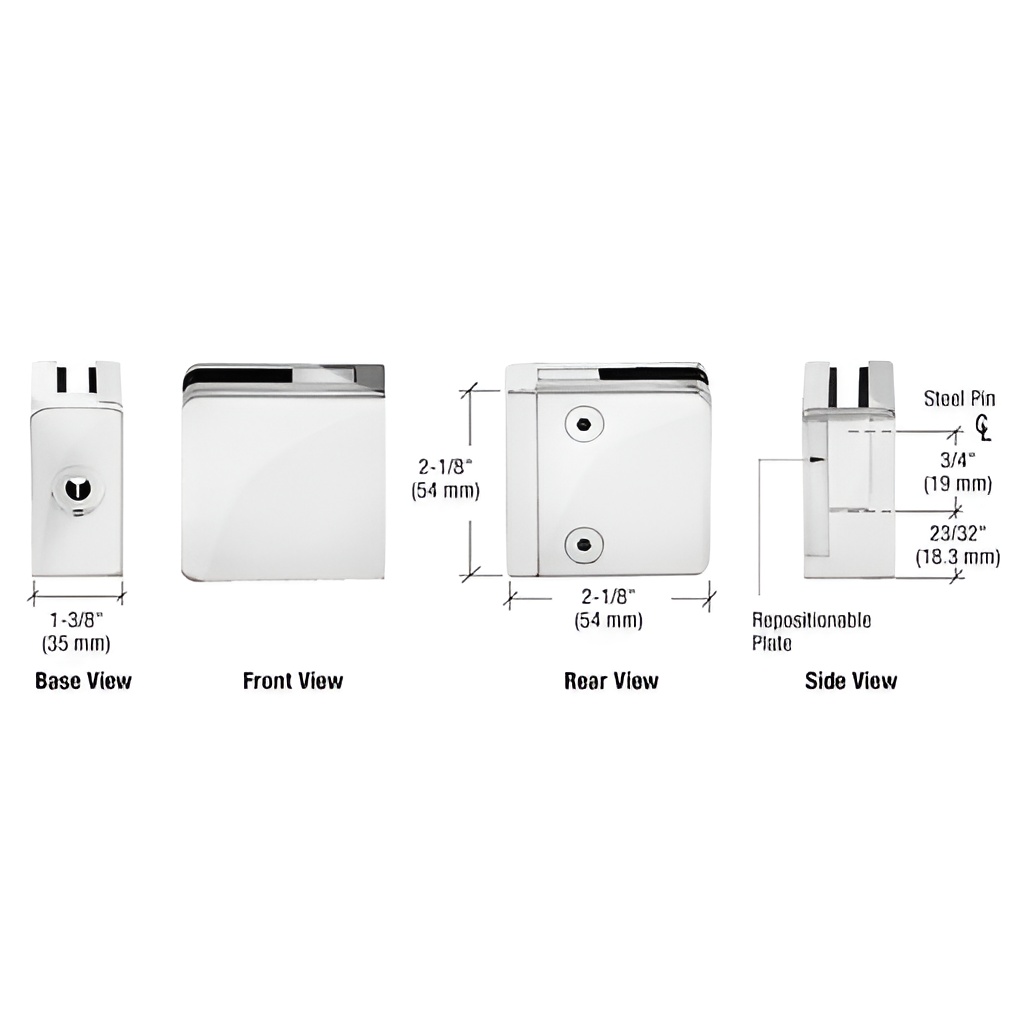

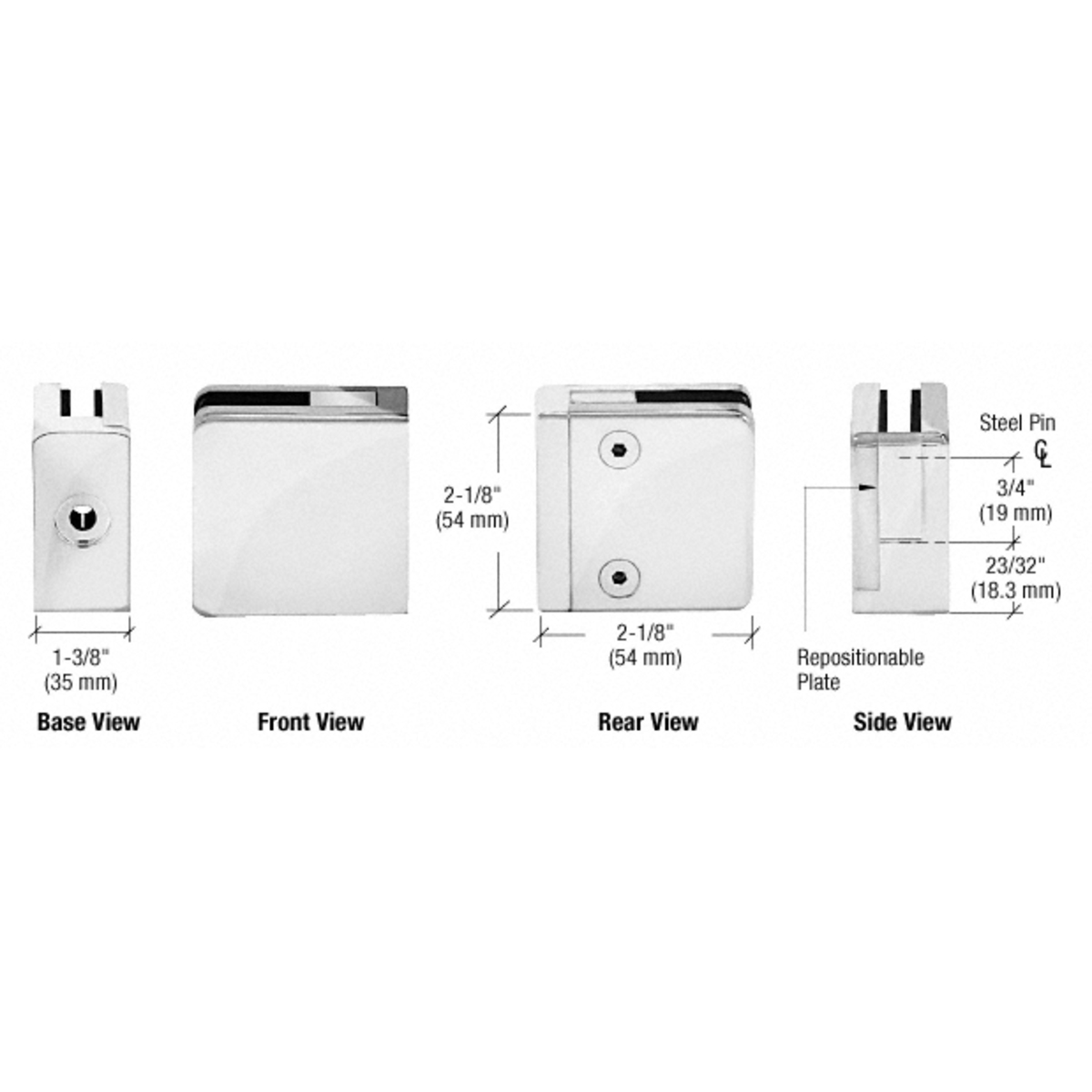

C.R. Laurence ZL810CH Chrome Z-Series Square Type Flat Base Zinc Clamp is expertly crafted for secure glass mounting, accommodating glass thicknesses of 3/8" or 1/2" (10 or 12 mm). This clamp features a repositionable plate, allowing for versatile installation at either the right or left corner of your glass, making it ideal for various configurations. Constructed from durable zinc casting, this flat base clamp is designed for use with square tubing or other flat surfaces, ensuring a reliable hold. The dimensions are well-suited for your project needs, with a depth of 1-3/32 in. (28 mm) and a height and width of 2-1/8 in. (54 mm), providing a streamlined appearance without compromising strength. For optimal support, the clamp requires specific hole sizes depending on the glass thickness: a 1/2" (12 mm) diameter hole for 3/8" glass and a 9/16" (14 mm) diameter hole for 1/2" glass when using the provided steel pin. Enhance your architectural projects with the ZL810CH clamp, which exemplifies quality and versatility in glass fittings. Please note that this product complies with safety regulations, making it a reliable choice for any building professional or knowledgeable homeowner.

Chrome Z-Series Square Type Flat Base Zinc Clamp for 3/8" and 1/2" Glass with Repositionable Plate

• Repositionable Plate for Use at Right or Left Corner of Glass
• For Use with Square Tubing or Other Flat Surfaces
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• Z-Clamp Tightening Sequence Information
• ZL810 ZL910 Glass Fabrication Template.pdf
