CRL ZL910BS Brushed Stainless Steel Z-Series Flat Base Clamp for 3/8" 1/2" Glass

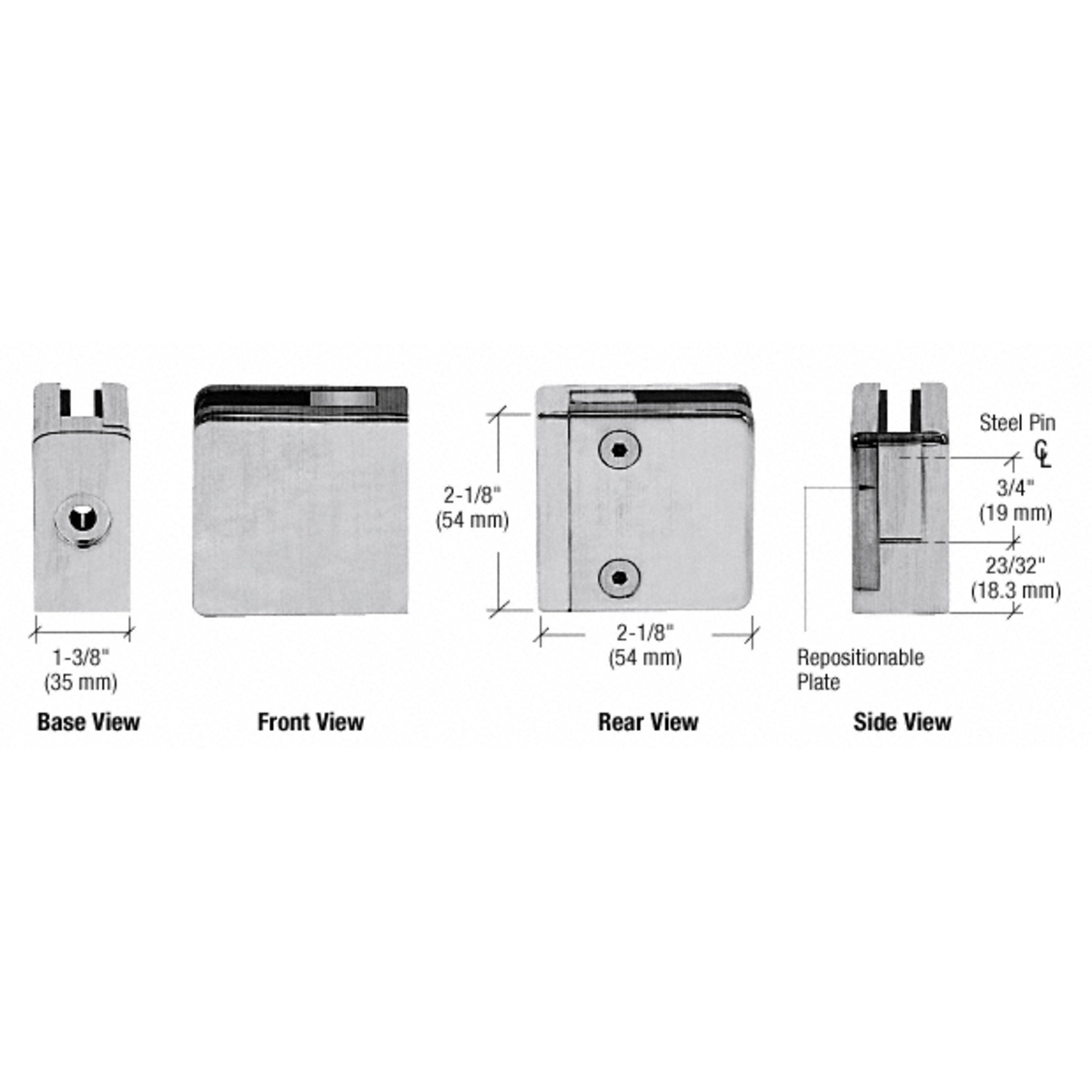

C.R. Laurence ZL910BS Brushed Stainless Steel Z-Series Square Type Flat Base Zinc Clamp offers a versatile solution for securely mounting glass panels. Designed for 3/8" or 1/2" (10 mm or 12 mm) monolithic tempered glass, this clamp features a repositionable plate, allowing for installation at either right or left corners of the glass. Its flat base is specifically engineered for use with square tubing or other flat surfaces, ensuring a robust attachment. Constructed from durable 316 stainless steel, the ZL910BS is built to withstand the elements while providing a sleek brushed finish that complements modern architectural designs. The clamp requires specific hole diameters for glass support: a 1/2" (12 mm) diameter hole for 3/8" (10 mm) thick glass and a 9/16" (14 mm) diameter hole for 1/2" (12 mm) thick glass. With a compact depth of 1-3/32 in. (28 mm) and a height and width of 2-1/8 in. (54 mm), this clamp seamlessly integrates into various applications. Keep in mind that while stainless steel is resistant to corrosion, periodic maintenance is recommended to uphold its factory finish. The CRL ZL910BS is the ideal choice for those seeking reliability and aesthetic appeal in glass fittings.

Brushed Stainless Steel Z-Series Square Type Flat Base Zinc Clamp for 3/8" and 1/2" Glass with Repositionable Plate

• Repositionable Plate for Use at Right or Left Corner of Glass
• For Use with Square Tubing or Other Flat Surfaces
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• Z-Clamp Tightening Sequence Information
• ZL810 ZL910 Glass Fabrication Template.pdf
