C.R. Laurence ZUR03BN Brushed Nickel Zurich 03 Series Wall Mount Inswing Hinge is a top-tier solution for bi-fold applications, expertly designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. As part of the renowned Zurich Series, this hinge combines functionality with elegance, featuring a brushed nickel finish that complements various decors. Constructed from durable stainless steel or solid brass, the ZUR03BN hinge ensures long-lasting performance. It accommodates two hinges for doors up to 36" (914 mm) wide and 100 lbs. (45 kg), or three hinges for doors up to 40" (1.02 m) wide and 150 lbs. (68 kg). The innovative design requires only two holes per hinge per panel, eliminating the need for cut-outs, making installation straightforward and efficient. Additionally, the hinge includes necessary gaskets, screws, and glass fabrication dimensions, streamlining the installation process. Custom finishes are available upon request, allowing for tailored solutions to fit specific project needs. With no shipping limitations and a user-friendly design, the C.R. Laurence ZUR03BN hinge is an exceptional choice for residential and hotel shower applications, ensuring both aesthetic appeal and reliable functionality.

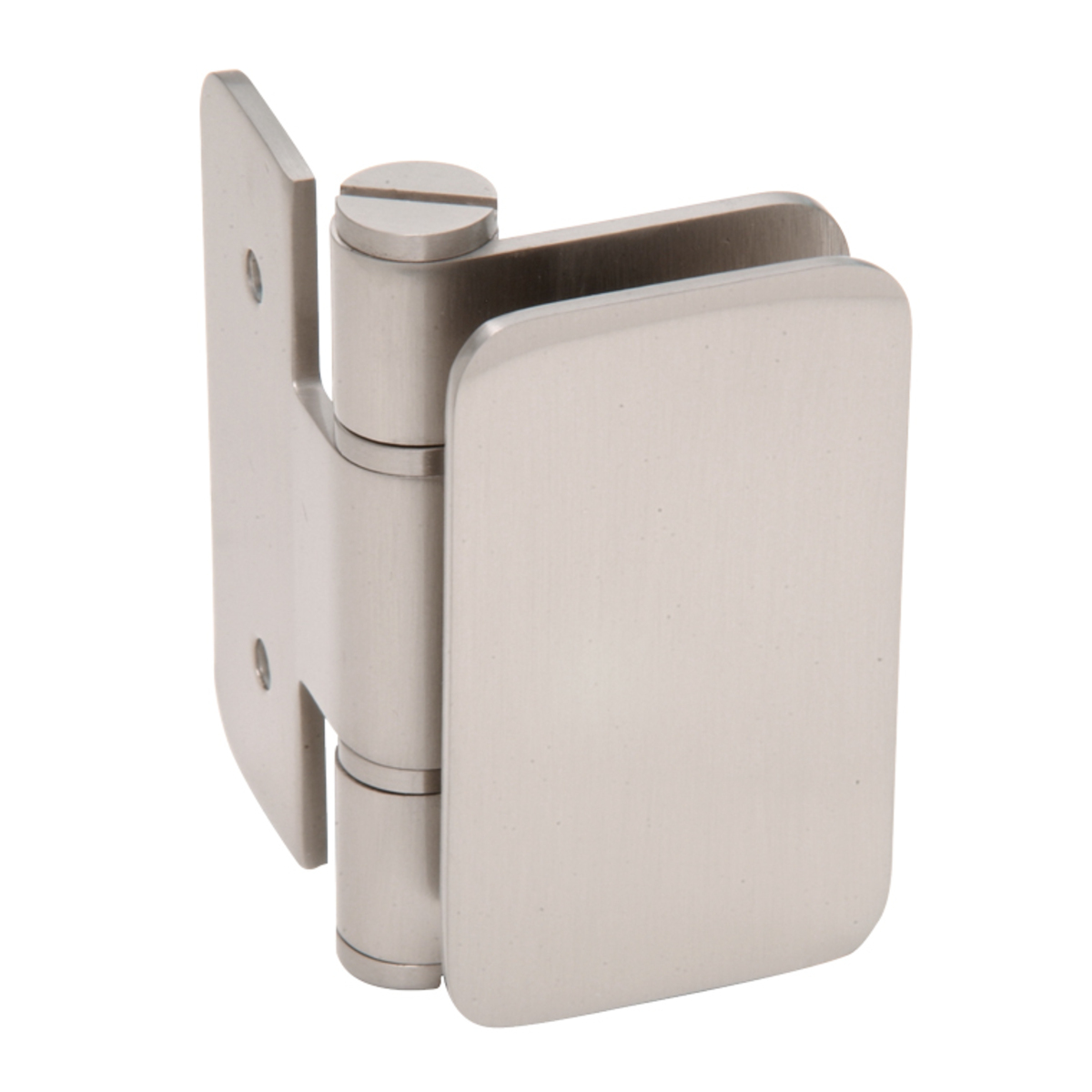

Brushed Nickel Zurich 03 Series Wall Mount Inswing Hinge
The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. Only two holes per Hinge per panel are required, with no cut-out necessary.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Nickel
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 3-1/8 in. (79 mm)
Material: Brass
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges: 150 lbs. (68 kg)
Maximum Door Width - 2 Hinges: 36 in. (914 mm)
Maximum Door Width - 3 Hinges: 40 in. (1016 mm)
Mounting Type: Wall Mount
Self- Centering: No
Series: Zurich
Shipping Limitations: None
Width: 1-7/8 in. (48 mm)
