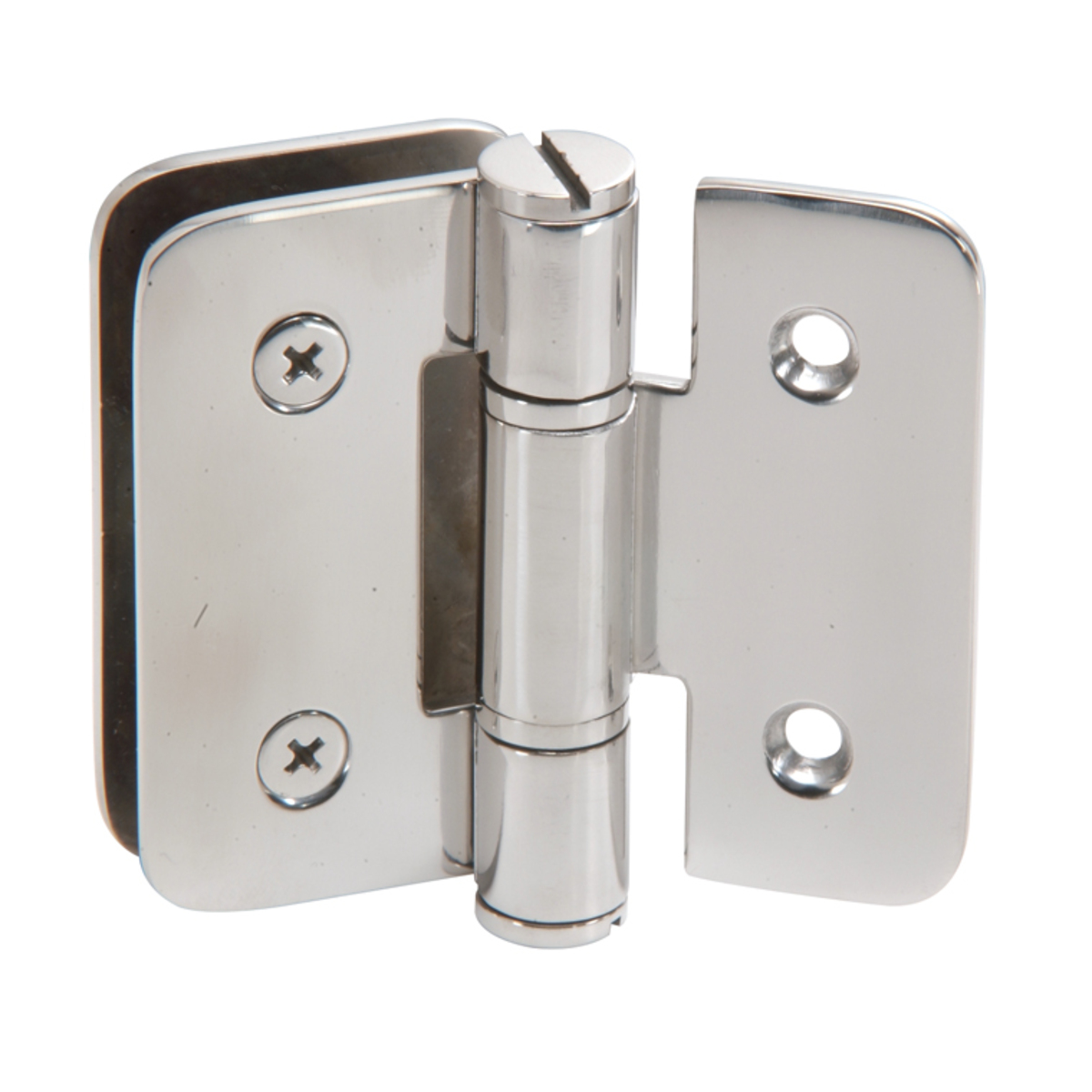

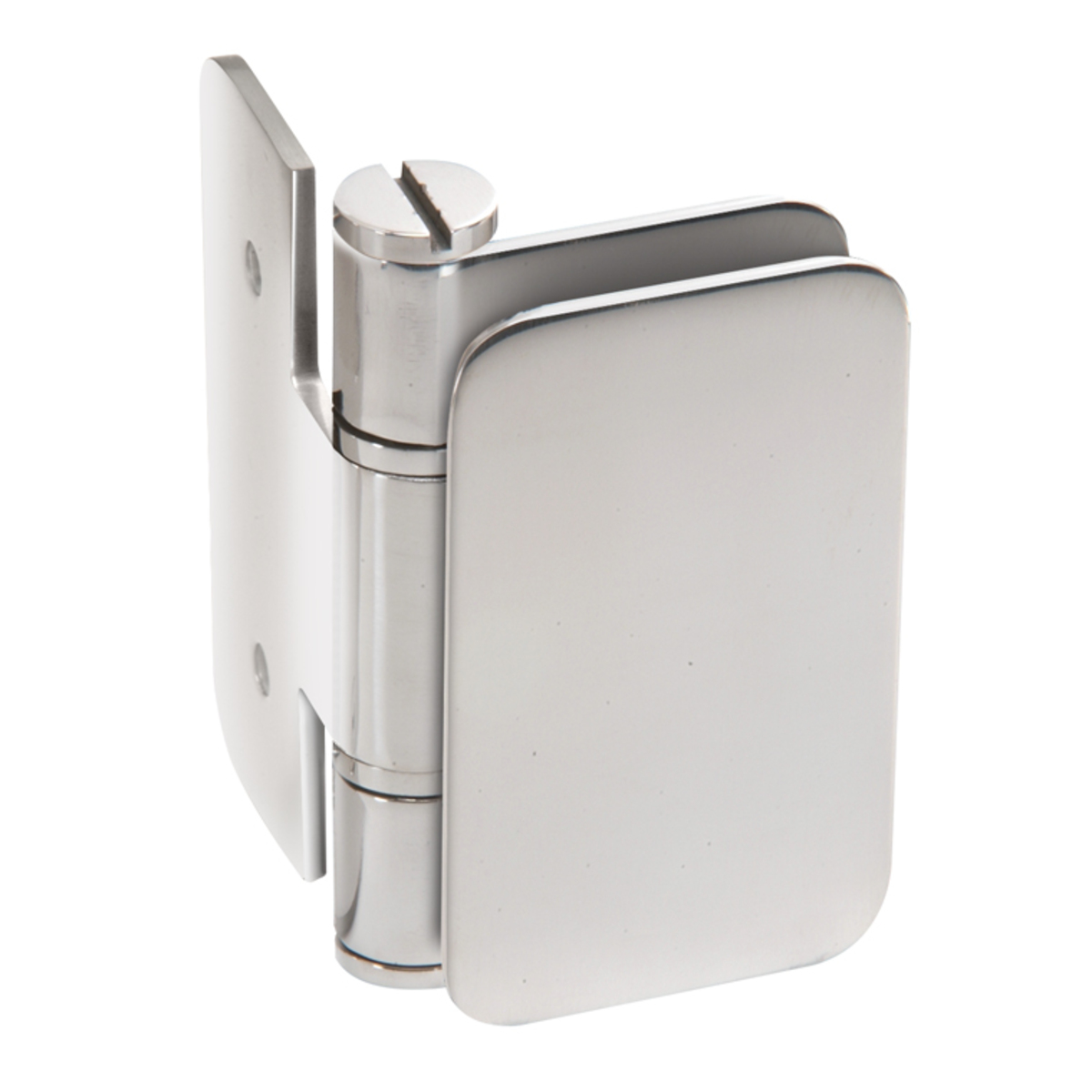

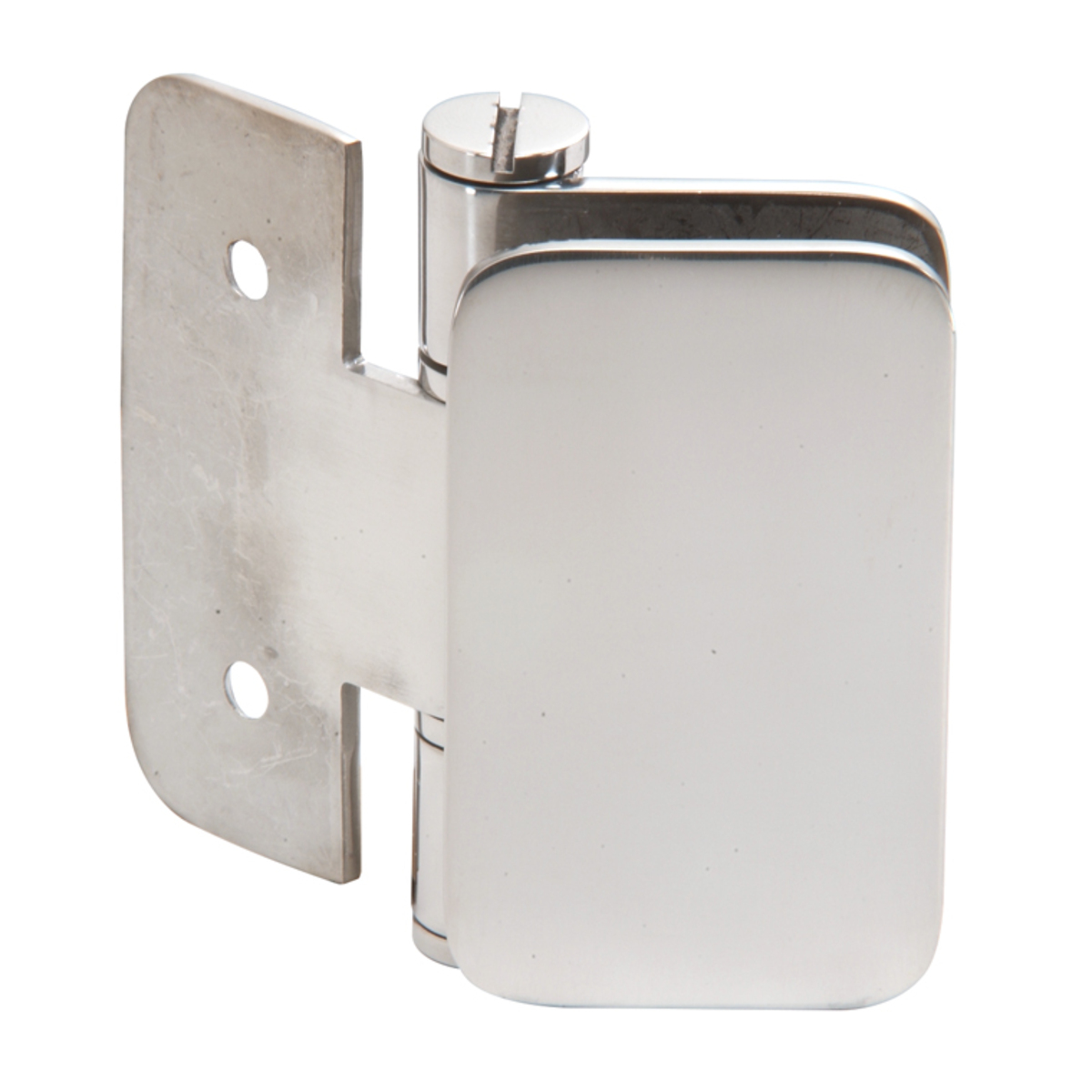

C.R. Laurence ZUR03PS Polished Stainless Zurich 03 Series Wall Mount Inswing Hinge offers a perfect blend of style and functionality for your glass installations. Designed specifically for bi-fold applications, this hinge is ideal for use with monolithic tempered glass, accommodating thicknesses ranging from 5/16" (8 mm) to 3/8" (10 mm). With its robust stainless steel construction and polished finish, it not only enhances the aesthetic of your space but also ensures long-lasting durability. This innovative hinge requires only two holes per panel, eliminating the need for a cut-out, which simplifies installation. When utilizing two hinges, it supports door weights up to 100 lbs. (45 kg) with a maximum width of 36" (914 mm). For heavier applications, three hinges can accommodate up to 150 lbs. (68 kg) with a maximum width of 40" (1.02 m). The CRL Zurich Series is available in a range of beautiful finishes, allowing you to customize your project to match your design vision. Each hinge package includes gaskets, screws, and glass fabrication dimensions for your convenience. Please note that these hinges are designed for residential or hotel shower use, ensuring reliable performance in wet environments.
Polished Stainless Zurich 03 Series Wall Mount Inswing Hinge
The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. Only two holes per Hinge per panel are required, with no cut-out necessary.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 3-1/8 in. (79 mm)
Material: Stainless Steel
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges: 150 lbs. (68 kg)
Maximum Door Width - 2 Hinges: 36 in. (914 mm)
Maximum Door Width - 3 Hinges: 40 in. (1016 mm)
Mounting Type: Wall Mount
Self- Centering: No
Series: Zurich
Shipping Limitations: None
Width: 1-7/8 in. (48 mm)
