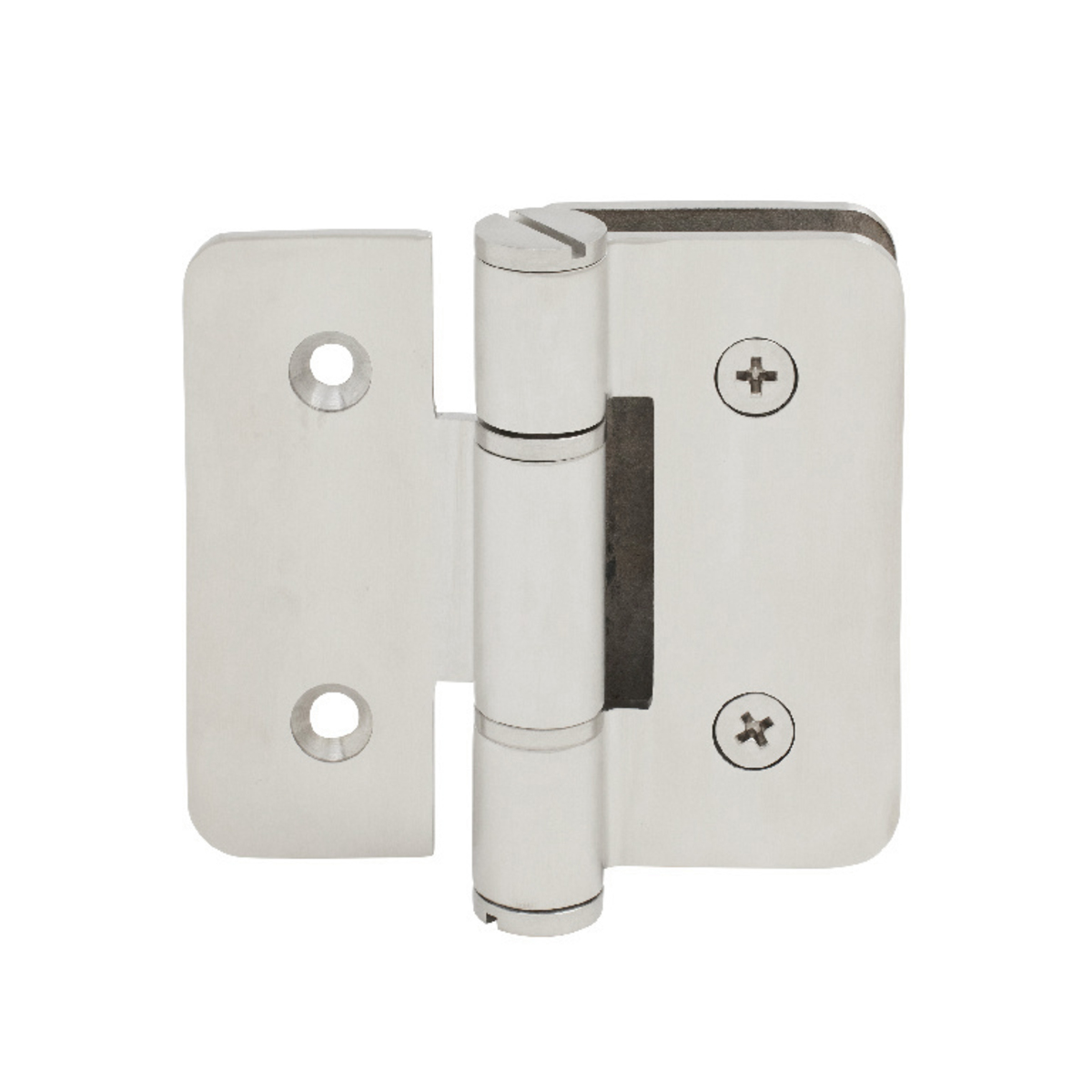

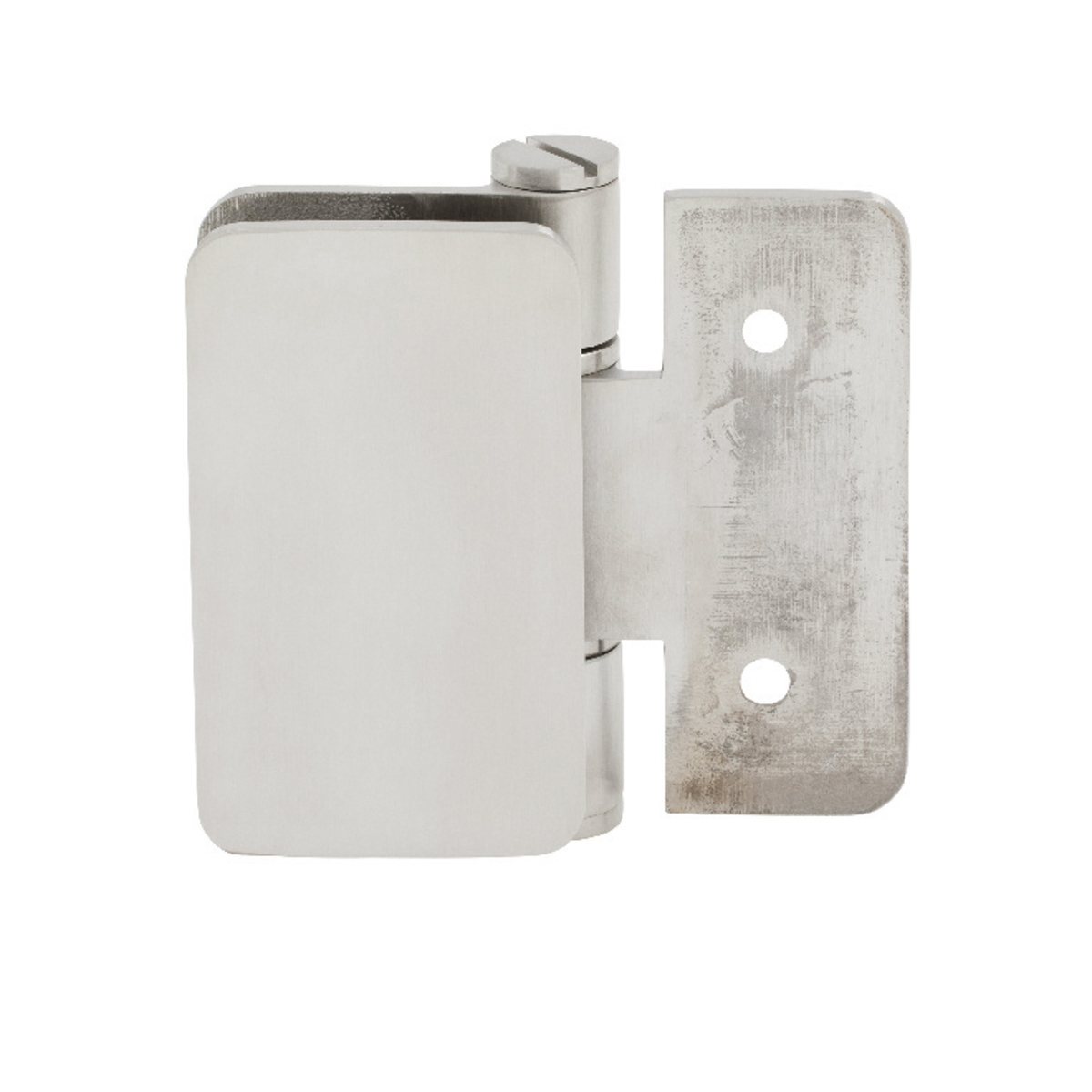

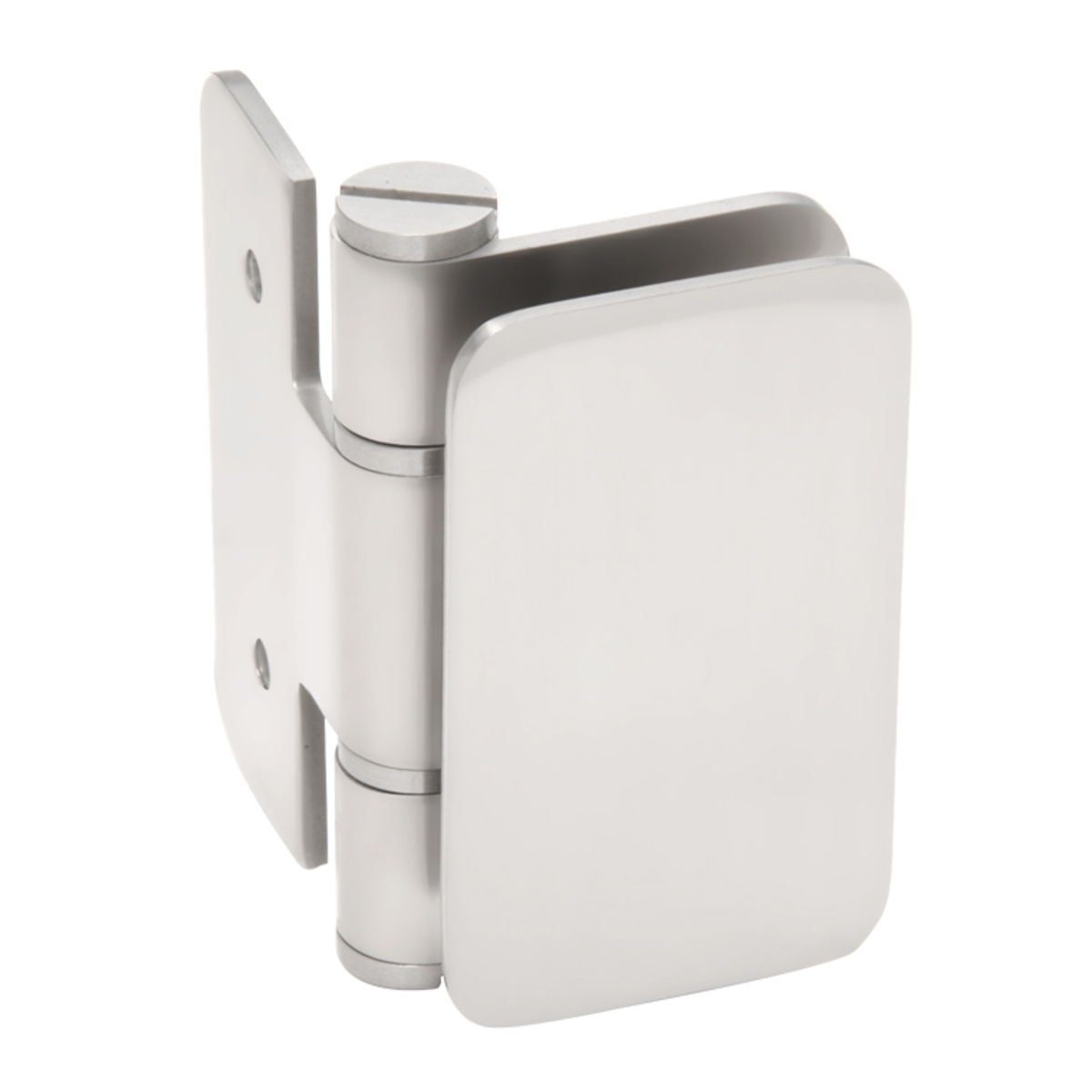

C.R. Laurence ZUR03SS Brushed Stainless Zurich 03 Series Wall Mount Inswing Hinge is a top-tier solution designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. This innovative hinge is perfect for bi-fold applications, making it an ideal choice for modern shower enclosures and glass doors. Crafted from durable stainless steel, the ZUR03SS boasts a sleek brushed finish that complements a variety of décor styles, with up to 13 finishes available to suit your design needs. This hinge requires only two holes per panel, eliminating the need for cut-outs, which simplifies installation and enhances structural integrity. It supports a maximum door weight of 100 lbs. (45 kg) with two hinges and can accommodate up to 150 lbs. (68 kg) when using three hinges, ensuring reliability and ease of use. The hinge also features free-swinging capabilities and includes gaskets, screws, and glass fabrication dimensions for a comprehensive installation experience. The ZUR03SS is not available in Germany and is specifically designed for residential or hotel shower use. For custom finishes or alternative applications, consulting the CRL Technical Sales Department is recommended. Enjoy the perfect blend of functionality and style with the CRL Zurich 03 Series Wall Mount Inswing Hinge.
Brushed Stainless Zurich 03 Series Wall Mount Inswing Hinge
The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. Only two holes per Hinge per panel are required, with no cut-out necessary.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 3-1/8 in. (79 mm)
Material: Stainless Steel
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges: 150 lbs. (68 kg)
Maximum Door Width - 2 Hinges: 36 in. (914 mm)
Maximum Door Width - 3 Hinges: 40 in. (1016 mm)
Mounting Type: Wall Mount
Self- Centering: No
Series: Zurich
Shipping Limitations: None
Width: 1-7/8 in. (48 mm)
