C.R. Laurence ZUR05BN Brushed Nickel Zurich 05 Series Wall Mount Outswing Hinge combines elegance and functionality, making it an ideal choice for your bi-fold applications. Designed specifically for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, this hinge is part of the renowned Zurich Series, known for its robust construction and aesthetic appeal. Available in a stunning brushed nickel finish, it ensures a sophisticated look that complements various interior designs. Constructed from durable stainless steel or solid brass, the ZUR05BN hinge supports substantial door weights-up to 100 lbs. (45 kg) with two hinges and 150 lbs. (68 kg) with three hinges, accommodating door widths of 36" (914 mm) and 40" (1.02 m) respectively. Featuring a free-swinging closing type, it requires only two holes per hinge per panel, eliminating the need for cut-outs and simplifying installation. Included with the hinge are gaskets, screws, and comprehensive glass fabrication dimensions, ensuring a smooth setup process. Custom finishes are available upon request, allowing you to tailor the hinge to your specific design needs. Note that this product is not available in Germany and is intended for residential or hotel shower use. Upgrade your space with the reliability and style of the C.R. Laurence Zurich 05 Series Hinge.

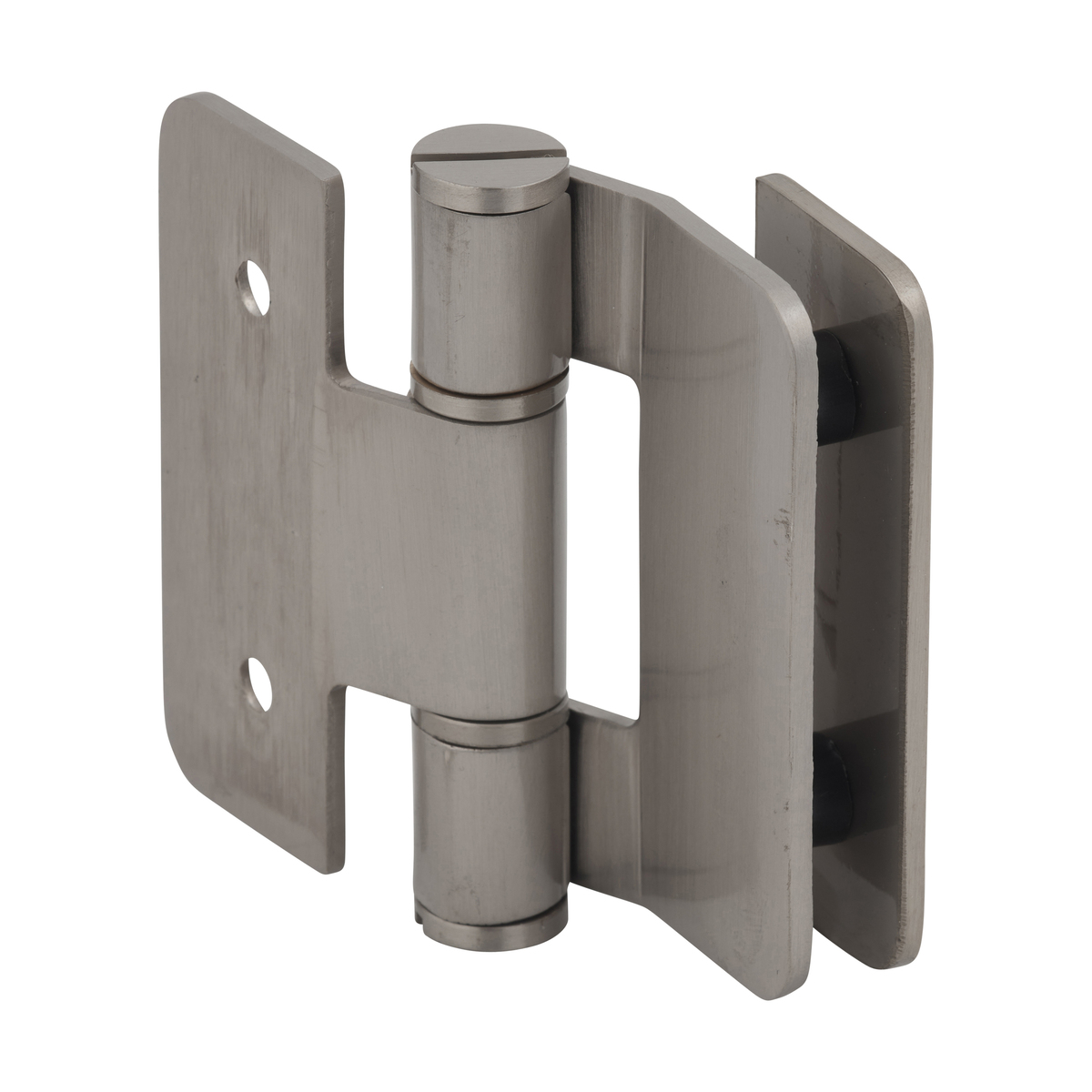

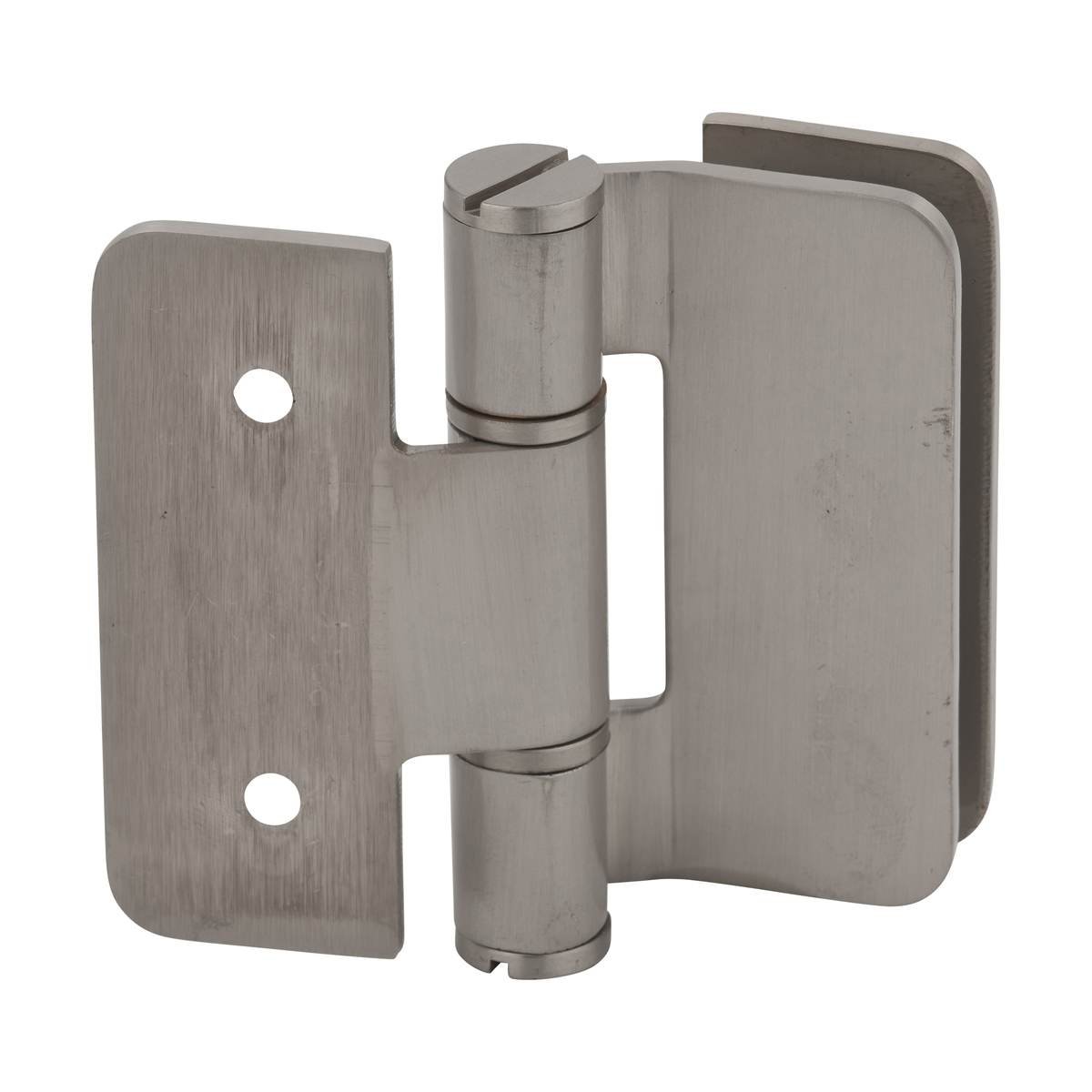

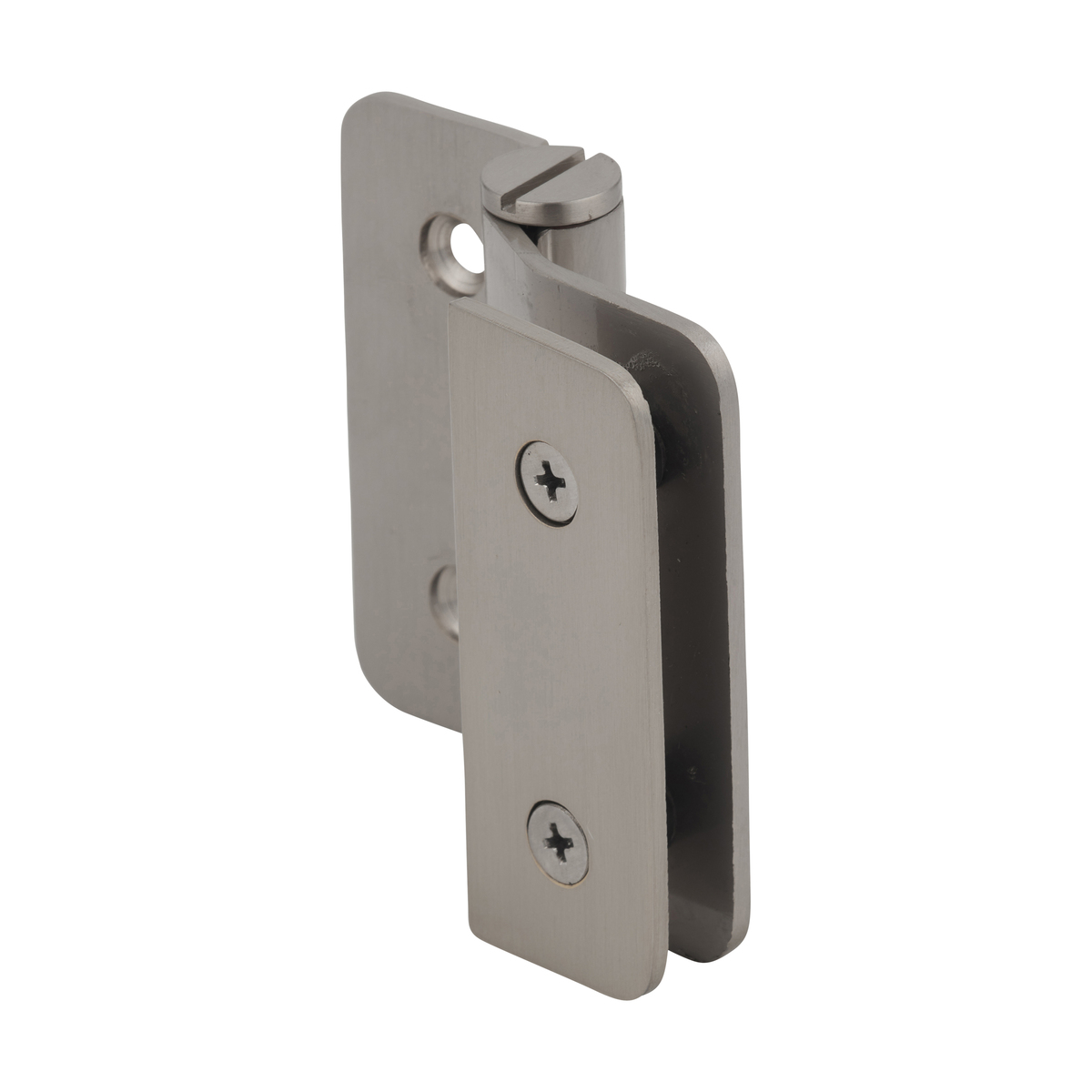

Brushed Nickel Zurich 05 Series Wall Mount Outswing Hinge
The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. Only two holes per Hinge per panel are required, with no cut-out necessary.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Offset
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Nickel
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 3-1/8 in. (79 mm)
Material: Brass
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges: 150 lbs. (68 kg)
Maximum Door Width - 2 Hinges: 36 in. (914 mm)
Maximum Door Width - 3 Hinges: 40 in. (1016 mm)
Mounting Type: Wall Mount
Self- Centering: No
Series: Zurich
Shipping Limitations: None
Width: 1-3/16 in. (30 mm)
