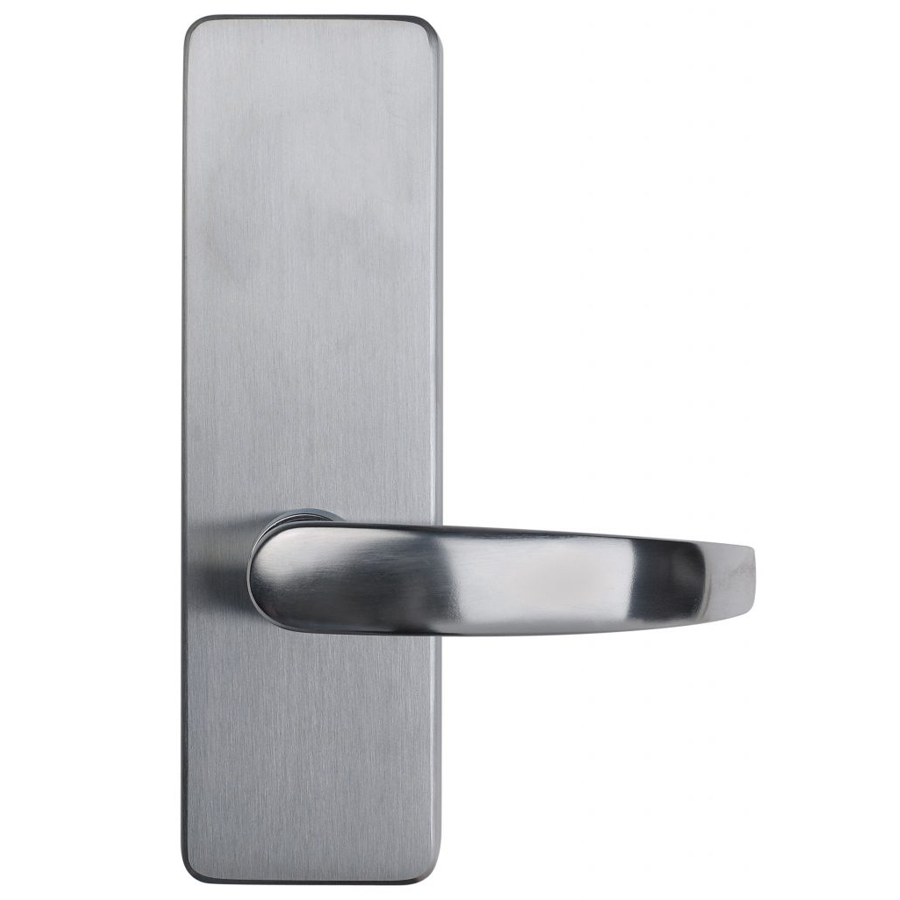

Detex 02-DM-S-626-RHR Dummy Lever Trim S Lever Wide Escutcheon for 30 Series Exit Devices, Satin Chrome

Detex Corporation 02-DM-S-626-RHR Dummy Lever offers a robust and reliable solution for security and access control in various installations. Designed for compatibility with the 30 Series mortise body exit devices, this trim features a sleek S lever mounted on a wide escutcheon that measures 9-1/16 inches by 2-3/4 inches. The brushed chrome finish (626/US26D) not only enhances its aesthetic appeal but also ensures durability against daily wear and tear. This heavy-duty dummy trim is constructed to withstand heavy use, making it ideal for high-traffic areas. The innovative design allows for simple function changes by merely replacing the outside trim, eliminating the need to remove the exit device from the door. A break-away type lever is included to mitigate damage from vandalism; should the lever be forced, it will drop and can be reset with ease. The 02-DM-S-626-RHR is engineered to fit standard door thicknesses of 1-3/4 inches to 2-1/4 inches and comes with a short cylinder collar compatible with mortise cylinders up to 1-1/8 inches long. This versatile trim not only meets BHMA standards but also provides an effective method to maintain security in panic device applications, ensuring peace of mind for building professionals and homeowners alike.

Dummy Lever, Trim, S Lever on Wide Escutcheon, for 30 Series (Mortise Body Exit Devices), 9-1/16in x 2-3/4in, 626/US26D Satin Chrome

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Wide stile trims can be used on 10 series rim and 20 and 21 series surface vertical rods. Add M to most trims for use with 30 series mortise devices. Add V to most trims for use with 70, 71, 80, 81, 82 and 83 series concealed vertical rod devices. Detex uses the BHMA functions/descriptions for all trims. All wide stile lever trims come standard with a break-away type lever to prevent permanent damage from vandalism and abuse. Once the lever is forced past the locking point, the lever will drop down and appear broken. The internal disengaging clutch allows the lever to be reset by pulling it back to its original position. Anti-microbial coating (AM) is available on all levers.

Functions:

• 02: Entrance by trim when actuating bar is dogged (dummy trim)
• 08: Entrance by lever. Key locks or unlocks lever (classroom trim)
• 09: Entrance by lever only when released by key. Key removable only when locked
• 10: Entrance by lever. Inside or outside key locks or unlocks lever
• 14: Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder
• EU: Electric lock/unlock – fail secure (FSE) or fail safe (FSA). Specify handing (not field reversible)

Specifications:

• D Trims are forged brass
• FSB Levers are forged steel
• KN - Knurling available on all standard levers
• Door Thickness: Fits standard 1-3/4" - 2-1/4" doors
• A short cylinder collar is supplied for mortise cylinders 1" to 1-1/8" long. For cylinders greater than 1-1/8", order tall cylinder collar part #100752-X
• Wide stile trim configured for use with BP1 mounting plate
• When ordered with device, trim will match mounting plate specified

Finishes:

• 605/US3 - Polished brass
• 606/US4 - Brushed brass
• 611/US9 - Polished bronze
• 612/US10 - Brushed bronze
• 613/US10B - Oil rubbed bronze
• 626/US26D - Brushed chrome
• 629/US32 - Polished stainless steel
• 693/SPBLK - Black painted
• 695/SP313 - Dark bronze painted

Features

• 10: Entrance by lever. Inside or outside key locks or unlocks lever
• 02: Entrance by trim when actuating bar is dogged (dummy trim)
• 08: Entrance by lever. Key locks or unlocks lever (classroom trim)
• EU: Electric lock/unlock – fail secure (FSE) or fail safe (FSA). Specify handing (not field reversible)
• 14: Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder
• 09: Entrance by lever only when released by key. Key removable only when locked
