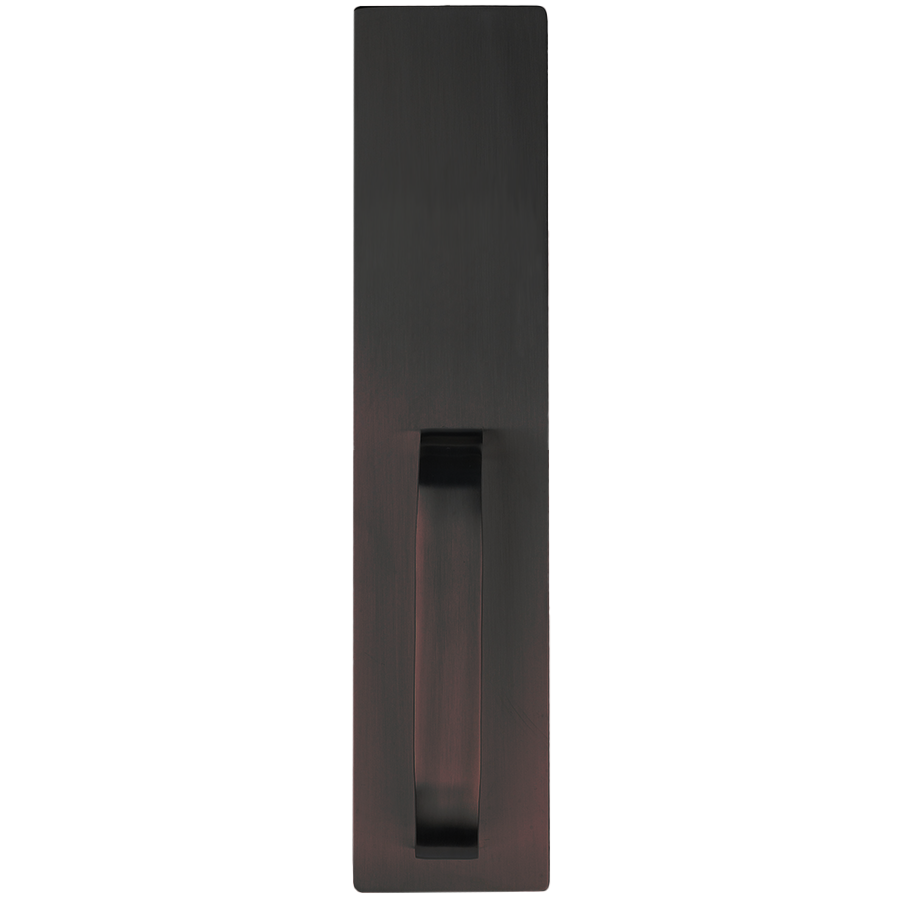

Detex 02C695 Dummy Pull Advantex for 10/20/21/27 Series, 695/SP313 Dark Bronze Painted

Detex Corporation 02C695 Dummy Pull Advantex provides an ideal solution for enhancing security in various installations while maintaining a sleek appearance. Designed to complement the 10/20/21/27 Series devices, this heavy-duty trim is crafted to withstand substantial use and abuse, ensuring long-lasting performance in high-traffic areas. The versatile installation of the 02C695 allows for easy functionality changes, as the device mounting plate permits swapping out the outside trim without needing to remove the exit device from the door. This dummy trim is particularly useful when the actuating bar is locked down, providing a clean, professional look. Constructed to fit standard door thicknesses of 1-3/4" to 2-1/4", this trim is available in a rich dark bronze, sprayed Duranotic finish, adding an elegant touch to any entryway. The compatibility with various Detex panic devices ensures that you can tailor your security needs seamlessly. Notably, the 02C695 is part of a broader range of trims that adhere to BHMA functions, giving you the flexibility to select the right option for your specific application. With its robust design and functional versatility, the Detex 02C695 Dummy Pull Advantex is a reliable choice for professionals seeking top-notch security hardware.

Dummy Pull Advantex for 10/20/21/27 Series, 695/SP313 Dark Bronze Painted

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Wide stile trims can be used on 10 Series Rim and 20 and 21 Series Surface Vertical Rods. Add M to most trims for use with 30 Series Mortise devices. Add V to most trims for use with 70, 71, 80, 81, 82 and 83 Series Concealed Vertical Rod devices. Detex uses the BHMA functions/descriptions for all trims.

BHMA Function:

• 01 - Exit only, no trim or blank escutcheon
• 02 - Entrance by trim when actuating bar is locked down (dummy trim)
• 03 - Entrance by trim when latch bolt is released by key. Key removable only when locked.

Technical Information:

• C and W Trims are Stainless Steel
• WS Trims are Forged Brass
• When ordered with device, trim will match mounting plate specified
• Wide stile trim configured for use with BP1 or BP7 (when ordered with 03 function) - standard on 10, 20/21 Series, BP11 or BP13 (when ordered with 03 function) - standard on 70, 80/81/82/83 Series.
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 626/US26D - Brushed Chrome
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel

Features

• 03 - Entrance by trim when latch bolt is released by key. Key removable only when locked.
• 02 - Entrance by trim when actuating bar is locked down (dummy trim)
• 01 - Exit only, no trim or blank escutcheon
• 03: Entrance by trim when latch bolt is released by key. Key removable only when locked.
• 01: Exit only, no trim or blank escutcheon
• 02: Entrance by trim when actuating bar is locked down (dummy trim)
