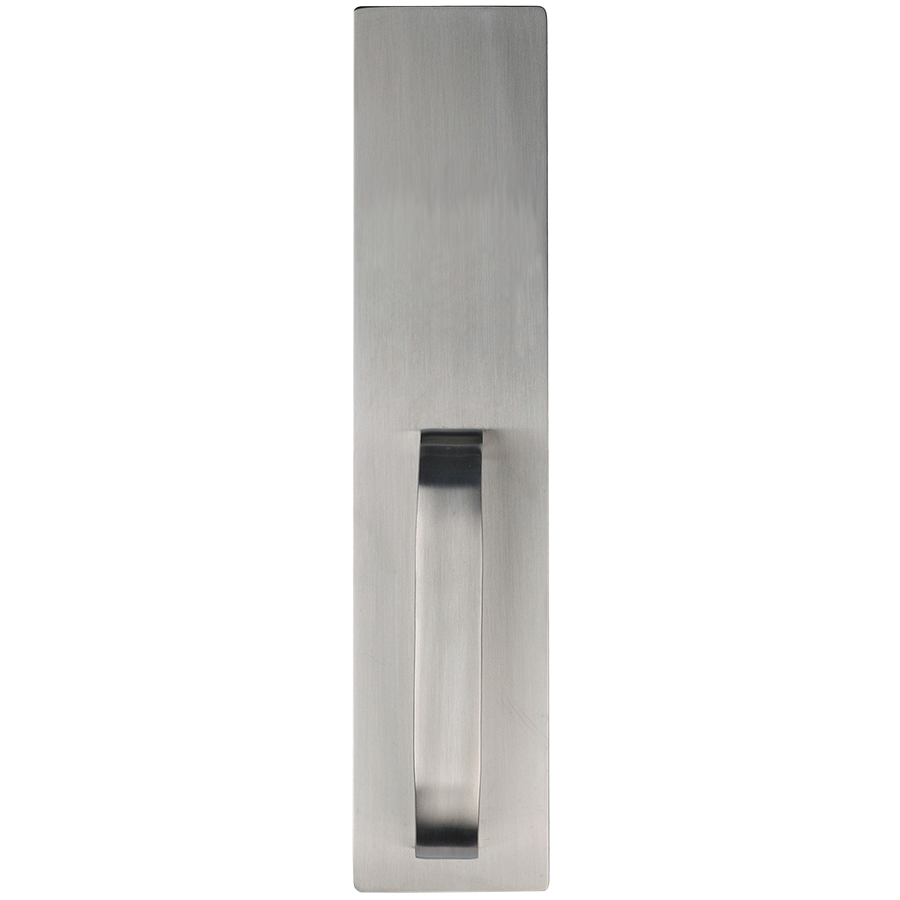

Detex 02CM630 Dummy Pull Advantex for 30 Series, 630/US32D Satin Stainless Steel

Detex Corporation 02CM630 Dummy Pull Advantex for 30 Series is a robust solution designed to ensure security across various installations. Crafted from durable satin stainless steel, this dummy trim offers both functionality and aesthetic appeal, making it an ideal choice for high-traffic areas. The heavy-duty construction is built to withstand extensive use, ensuring longevity and reliability in demanding environments. This versatile dummy pull is compatible with Detex's 30 Series Mortise devices, featuring a wide stile design that simplifies installation and maintenance. The innovative mounting plate allows for easy function changes without the need to remove the exit device from the door. With BHMA-approved functions, this trim provides a secure entrance by allowing access only when the actuating bar is locked down. Designed to fit standard door thicknesses of 1-3/4" to 2-1/4", the 02CM630 caters to a variety of door applications. Its brushed stainless steel finish (630/US32D) not only enhances its durability but also complements modern architectural aesthetics. Whether for commercial or residential use, the Detex 02CM630 Dummy Pull Advantex is a reliable and stylish choice for enhancing security while maintaining ease of access.

Dummy Pull Advantex for 30 Series, 630/US32D Satin Stainless Steel

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Wide stile trims can be used on 10 Series Rim and 20 and 21 Series Surface Vertical Rods. Add M to most trims for use with 30 Series Mortise devices. Add V to most trims for use with 70, 71, 80, 81, 82 and 83 Series Concealed Vertical Rod devices. Detex uses the BHMA functions/descriptions for all trims.

BHMA Function:

• 01 - Exit only, no trim or blank escutcheon
• 02 - Entrance by trim when actuating bar is locked down (dummy trim)
• 03 - Entrance by trim when latch bolt is released by key. Key removable only when locked.

Technical Information:

• C and W Trims are Stainless Steel
• WS Trims are Forged Brass
• When ordered with device, trim will match mounting plate specified
• Wide stile trim configured for use with BP1 or BP7 (when ordered with 03 function) - standard on 10, 20/21 Series, BP11 or BP13 (when ordered with 03 function) - standard on 70, 80/81/82/83 Series.
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 626/US26D - Brushed Chrome
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel

Features

• 03 - Entrance by trim when latch bolt is released by key. Key removable only when locked.
• 02 - Entrance by trim when actuating bar is locked down (dummy trim)
• 01 - Exit only, no trim or blank escutcheon
• 03: Entrance by trim when latch bolt is released by key. Key removable only when locked.
• 01: Exit only, no trim or blank escutcheon
• 02: Entrance by trim when actuating bar is locked down (dummy trim)
