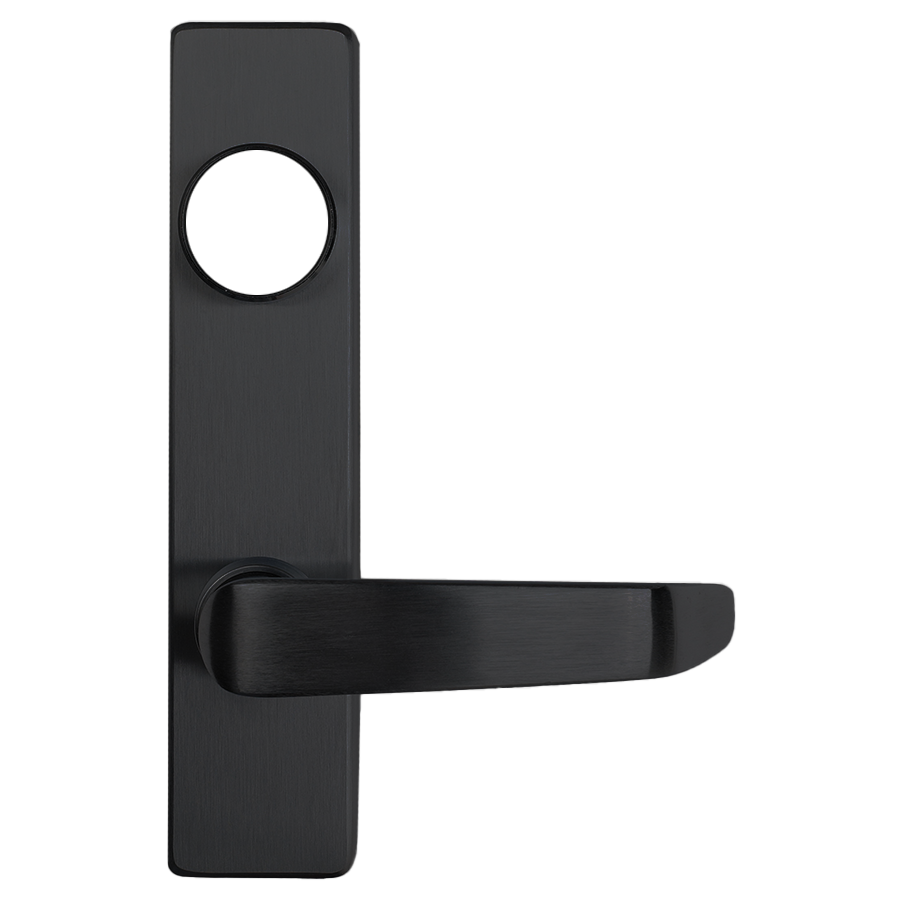

Detex 08DNV-S-693-RHR Classroom Trim S Lever, Keyed, Less Mortise, Advantex 60 Series, Black

Detex Corporation 08DNV-S-693-RHR Classroom Trim offers robust security for various installations, featuring a sleek S lever design on a narrow escutcheon. This model is specifically engineered for the Advantex 60 Series narrow stile exit devices, ensuring compatibility and ease of use. The trim can be easily locked or unlocked via key, providing a reliable solution for classroom or similar applications. Constructed from durable forged brass, the 08DNV-S-693-RHR is designed to withstand heavy use, making it ideal for high-traffic areas. Its field-reversible feature allows for flexibility in installation, accommodating right-hand reverse door configurations. The trim is compatible with standard door thicknesses of 1-3/4" to 2-1/4", ensuring a secure fit on most doors. Available in a sleek black painted finish, this trim not only enhances security but also adds a modern aesthetic to your door hardware. The anti-microbial coating option is available on all levers, promoting hygiene in frequently accessed areas. With its easy functional changes and the ability to monitor the lever for access control signals, the Detex 08DNV-S-693-RHR Classroom Trim is an excellent choice for professionals looking to enhance safety and convenience in their spaces.

Classroom Trim, S Lever on Narrow Escutcheon, Key Locks or Unlocks Lever, Less Mortise Cylinder, for Advantex 60 Series (Narrow Stile CVR Exit Devices), RHR Right Hand Reverse, Field Reversable, 693/SPBLK Black Painted

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Narrow stile trims can be used on 40 series rim, 50/51 series surface vertical rods and 60/61/62/63 concealed vertical rods. Detex uses the BHMA functions/descriptions for all trims. Anti-microbial coating (AM) is available on all levers.

Functions:

• 02: Entrance by trim when actuating bar is dogged (dummy trim)
• 08: Entrance by lever. Key locks or unlocks lever (classroom trim)
• 09: Entrance by lever only when released by key. Key removable only when locked
• 10: Entrance by lever. Inside or outside key locks or unlocks lever
• 14: Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder
• EU: Electric lock/unlock – fail secure (FSE) or fail safe (FSA). Specify handing (not field reversible)

Specifications:

• DN Trims are forged brass
• KN - Knurling available on all standard levers
• Advantex narrow stile trim also available for use with all value series devices
• Door Thickness: Fits standard 1-3/4" - 2-1/4" doors
• When ordered with device, trims will match mounting plate specified
• Narrow stile trim configured for use with BP2 - standard for use on 40, 50/51 series, BP10 - standard for use on 60/61, 62/63 series
• A short cylinder collar is supplied for mortise cylinders 1" to 1-1/8" long. For cylinders greater than 1-1/8", order tall cylinder collar part #100752-X
• Monitors the lever and sends a signal to access control when lever is rotated
• Available on 08DN, 09DN, 14DN and EU2W levers only
• Not retrofittable or field reversible - must specify handing

Finishes:

• 605/US3 - Polished brass
• 606/US4 - Brushed brass
• 611/US9 - Polished bronze
• 612/US10 - Brushed bronze
• 613/US10B - Oil rubbed bronze
• 626/US26D - Brushed chrome
• 629/US32 - Polished stainless steel
• 693/SPBLK - Black painted
• 695/SP313 - Dark bronze painted

Features

• 10: Entrance by lever. Inside or outside key locks or unlocks lever
• 02: Entrance by trim when actuating bar is dogged (dummy trim)
• 08: Entrance by lever. Key locks or unlocks lever (classroom trim)
• EU: Electric lock/unlock – fail secure (FSE) or fail safe (FSA). Specify handing (not field reversible)
• 14: Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder
• 09: Entrance by lever only when released by key. Key removable only when locked
