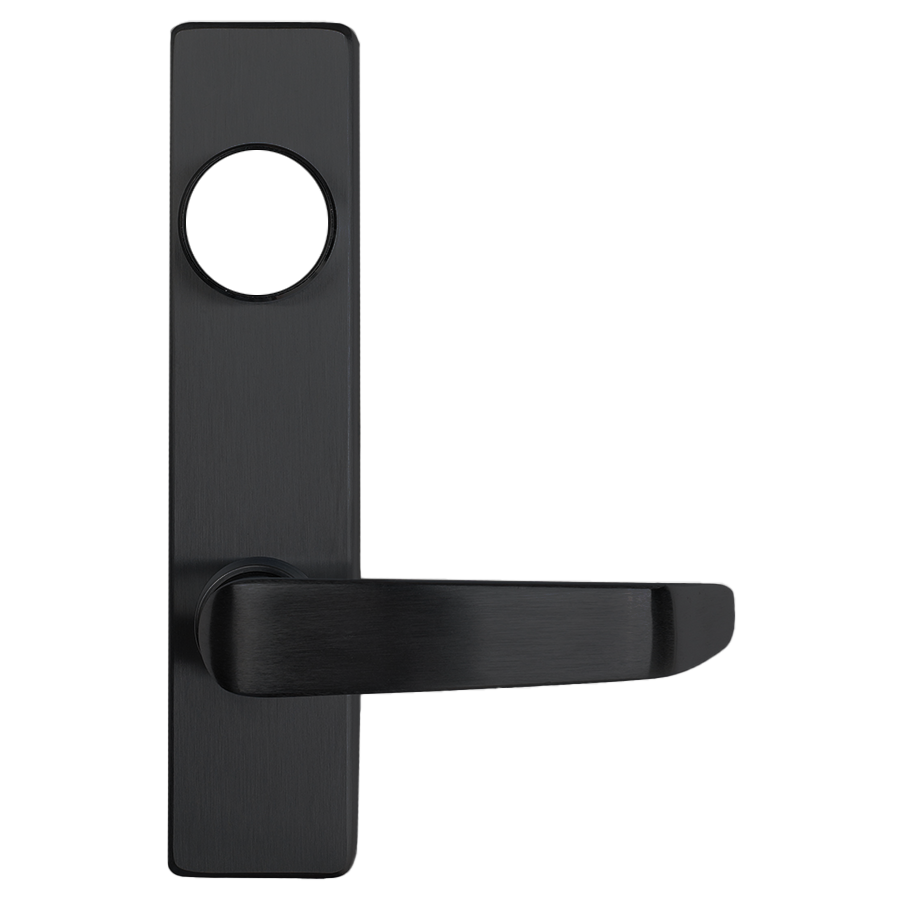

Detex 09DN-S-693-RHR Storeroom Trim S Lever, Narrow Escutcheon, Key-Activated, Black Painted

Detex Corporation 09DN-S-693-RHR Storeroom Trim is engineered for maximum security and versatility in various installations. This heavy-duty trim features an S Lever design with a sleek narrow escutcheon, making it ideal for settings where durability and style are paramount. The lever is active by key and securely locks when the key is removed, ensuring that access is strictly controlled. Designed for compatibility with Detex 40, 50, and 51 Series panic devices, this trim is field-reversible and fits standard door thicknesses of 1-3/4" to 2-1/4". The 09DN trim is forged from high-quality brass, showcasing a robust construction that stands up to heavy use. With its anti-microbial coating available on all levers, it also contributes to a safer environment. The 693/SPBLK finish in black painted provides a modern, unobtrusive look, while the ability to easily change functions without removing the exit device simplifies maintenance. The trim is not only practical but also enhances the aesthetic appeal of your security installations. Whether for commercial or residential use, the Detex 09DN-S-693-RHR Storeroom Trim is the perfect solution for reliable access control.

Storeroom Trim, S Lever with Narrow Escutcheon, Lever Active By Key, Locked when Key Removed, Less Mortise Cylinder, for 40/50/51 Series, RHR Right Hand Reverse, Field Reversable, 693/SPBLK Black Painted

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Narrow stile trims can be used on 40 series rim, 50/51 series surface vertical rods and 60/61/62/63 concealed vertical rods. Detex uses the BHMA functions/descriptions for all trims. Anti-microbial coating (AM) is available on all levers.

Functions:

• 02: Entrance by trim when actuating bar is dogged (dummy trim)
• 08: Entrance by lever. Key locks or unlocks lever (classroom trim)
• 09: Entrance by lever only when released by key. Key removable only when locked
• 10: Entrance by lever. Inside or outside key locks or unlocks lever
• 14: Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder
• EU: Electric lock/unlock – fail secure (FSE) or fail safe (FSA). Specify handing (not field reversible)

Specifications:

• DN Trims are forged brass
• KN - Knurling available on all standard levers
• Advantex narrow stile trim also available for use with all value series devices
• Door Thickness: Fits standard 1-3/4" - 2-1/4" doors
• When ordered with device, trims will match mounting plate specified
• Narrow stile trim configured for use with BP2 - standard for use on 40, 50/51 series, BP10 - standard for use on 60/61, 62/63 series
• A short cylinder collar is supplied for mortise cylinders 1" to 1-1/8" long. For cylinders greater than 1-1/8", order tall cylinder collar part #100752-X
• Monitors the lever and sends a signal to access control when lever is rotated
• Available on 08DN, 09DN, 14DN and EU2W levers only
• Not retrofittable or field reversible - must specify handing

Finishes:

• 605/US3 - Polished brass
• 606/US4 - Brushed brass
• 611/US9 - Polished bronze
• 612/US10 - Brushed bronze
• 613/US10B - Oil rubbed bronze
• 626/US26D - Brushed chrome
• 629/US32 - Polished stainless steel
• 693/SPBLK - Black painted
• 695/SP313 - Dark bronze painted

Features

• 10: Entrance by lever. Inside or outside key locks or unlocks lever
• 02: Entrance by trim when actuating bar is dogged (dummy trim)
• 08: Entrance by lever. Key locks or unlocks lever (classroom trim)
• EU: Electric lock/unlock – fail secure (FSE) or fail safe (FSA). Specify handing (not field reversible)
• 14: Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder
• 09: Entrance by lever only when released by key. Key removable only when locked
