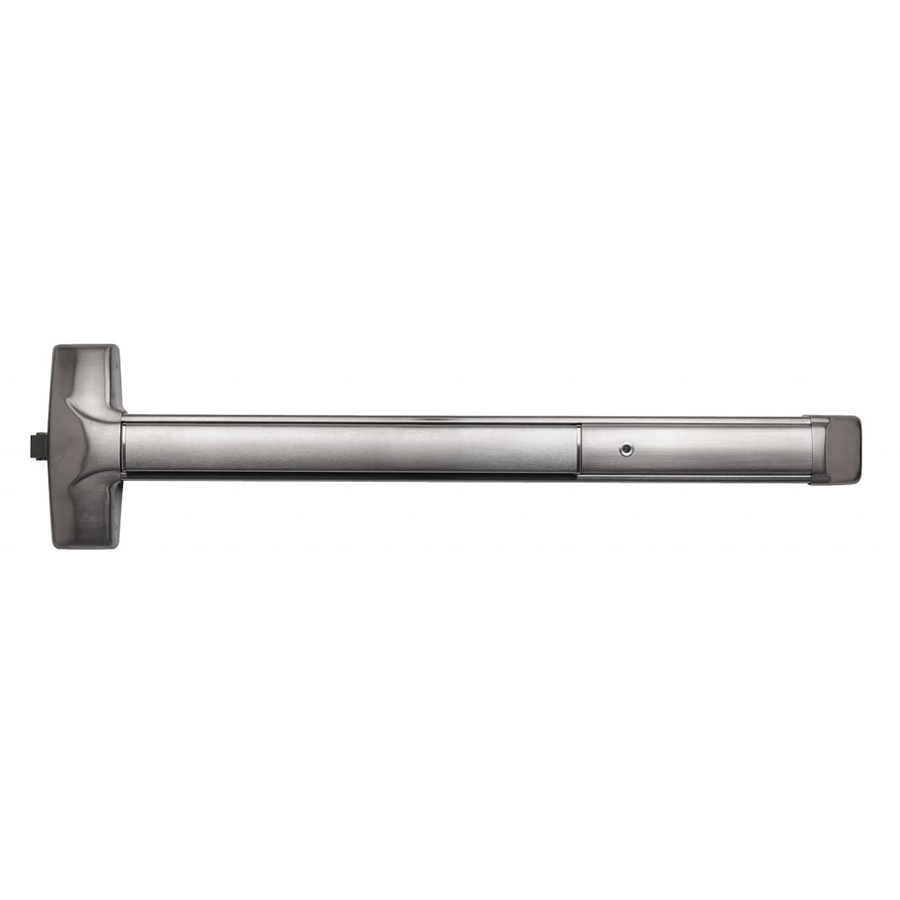

Detex 10-630-48 Advantex Wide Stile Rim Exit Device, No Trim, Hex Dogging, 48in, Satin SS

Detex Corporation 10-630-48 Advantex Wide Stile Rim Exit Only Device offers a super-heavy-duty solution for panic and fire exit hardware, suitable for both single and double doors with mullions. Crafted with durability in mind, this device is designed to withstand high-use and high-abuse environments, ensuring years of reliable service. The patented mounting plate and strike locator system simplifies installation, eliminating the need for paper templates and minimizing door preparation time. This exit device features a stainless steel deadlocking, Pullman-type latch bolt, and is tested to exceed 1,000,000 cycles-double the requirement for Grade 1 UL testing. Its non-handed design and heavy-duty angled end cap help deflect damage, making it an ideal choice for busy facilities. The 48-inch model comes with hex dogging as standard and provides easy access to outside trims for quick changes or re-keying. All exposed surfaces are finished with PVD-coated stainless steel, ensuring a clean and attractive appearance. The Advantex 10 Series is certified to meet A156.3, ADA, ANSI, BHMA, and UL standards, making it a robust option for both commercial and residential applications. Choose the Detex 10-630-48 for peace of mind and superior functionality in your exit hardware solutions.

Advantex Wide Stile Rim Exit Only Device, No Trim, Hex Dogging, 48in, 630/US32D Satin Stainless Steel

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• SLR - Silencer
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
