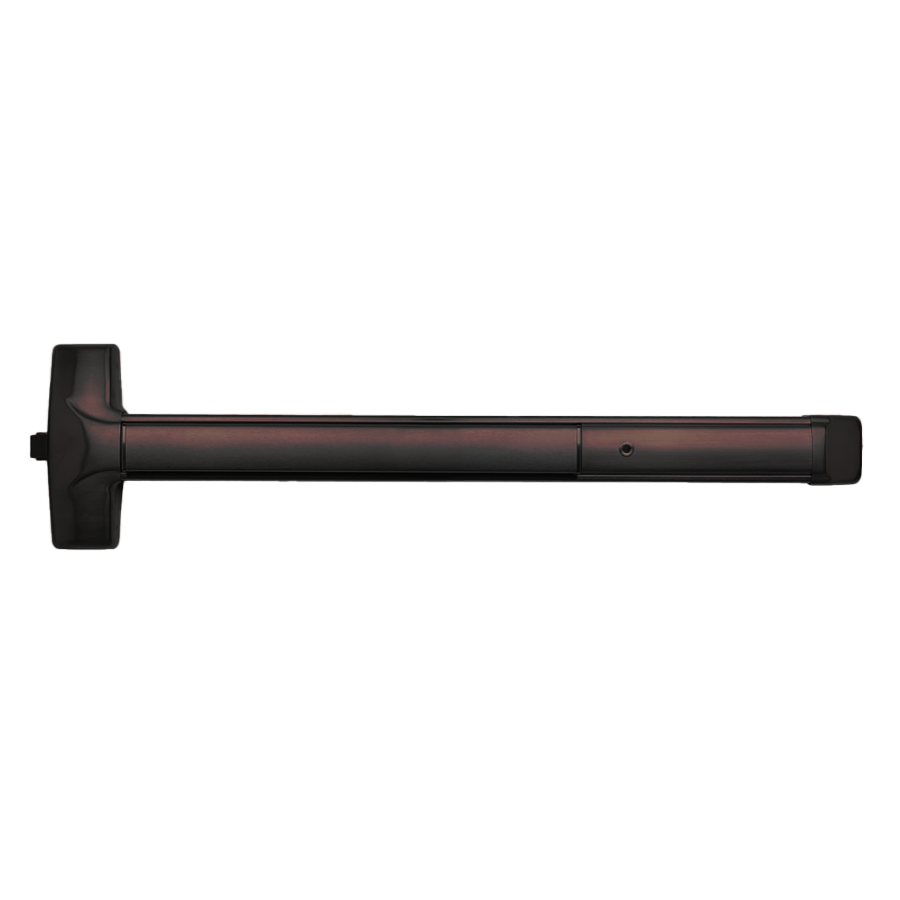

Detex 10-695-48 Advantex Wide Stile Rim Exit Device, No Trim, Hex Dogging, 48in, Dark Bronze

Detex Corporation 10-695-48 Advantex Wide Stile Rim Exit Only Device is engineered for maximum durability and reliability in high-use, high-abuse environments. This super-heavy-duty panic and fire exit hardware is suitable for all types of single and double doors, including those with mullions. The innovative patented mounting plate and strike locator system streamline installation, eliminating the need for cumbersome paper templates and significantly reducing the time and cost involved. Built to withstand the test of time, the 10 Series device features a stainless steel deadlocking, Pullman-type latch bolt and has been rigorously tested beyond 1,000,000 cycles-twice the requirement for Grade 1 UL testing. The device is non-handed and field sizable, making it versatile and easy to install on standard door widths ranging from 24" to 48". The heavy-duty angled end cap not only enhances the device's durability but also directs damage away from sensitive components. Exposed surfaces are finished with PVD, an environmentally-friendly process that ensures a long-lasting aesthetic appeal. With a sleek dark bronze finish, this exit device seamlessly integrates into various architectural styles while providing essential security features, ensuring safe egress without compromising on style or functionality.

Advantex Wide Stile Rim Exit Only Device, No Trim, Hex Dogging, 48in, 695/SP313 Dark Bronze Painted

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• SLR - Silencer
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
