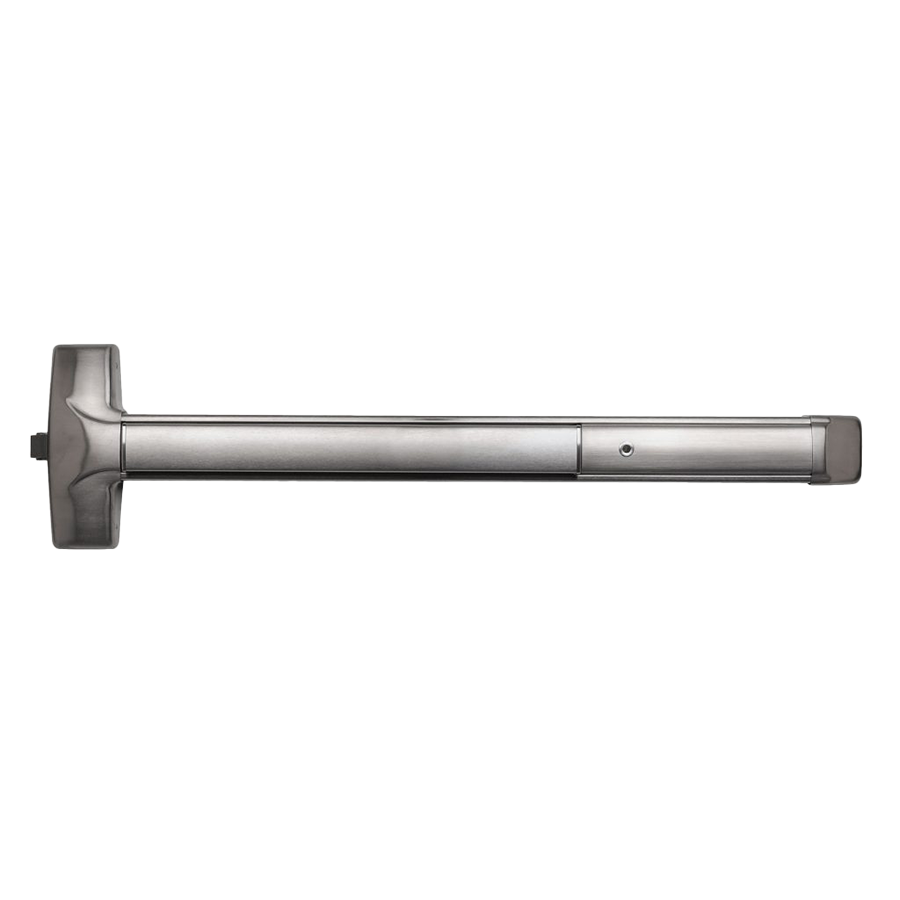

Detex 10-CD-630-48 Advantex Wide Stile Rim Exit Device, No Trim, Cylinder Dogging, 48in, Satin SS

Detex Corporation 10-CD-630-48 Advantex Wide Stile Rim Exit Only Device is engineered for superior performance in high-traffic environments. This heavy-duty panic and fire exit hardware is compatible with a variety of single and double doors, including those with mullions, making it a versatile choice for numerous applications. Its innovative design features a patented mounting plate and strike locator system that simplifies installation, eliminating the need for paper templates and minimizing door prep time. Crafted from durable stainless steel with a brushed finish, the device is built to withstand years of rigorous use. It has been tested for over 1,000,000 cycles-double the standard requirement for Grade 1 UL testing-ensuring reliability and longevity. The non-handed design and heavy-duty angled end cap provide additional versatility and protection against damage. The 10-CD-630-48 includes cylinder dogging for easy operation and allows for quick changes or re-keying of outside trims without removing the device. Ideal for wood, hollow metal, fiberglass, or aluminum doors with a thickness of 1-3/4" to 2-1/4", this exit device combines exceptional functionality with robust security features. With its combination of style, strength, and ease of use, the Detex 10-CD-630-48 is the ideal solution for both commercial and residential applications.

Advantex Wide Stile Rim Exit Only Device, No Trim, Cylinder Dogging, 48in, 630/US32D Satin Stainless Steel

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• SLR - Silencer
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
