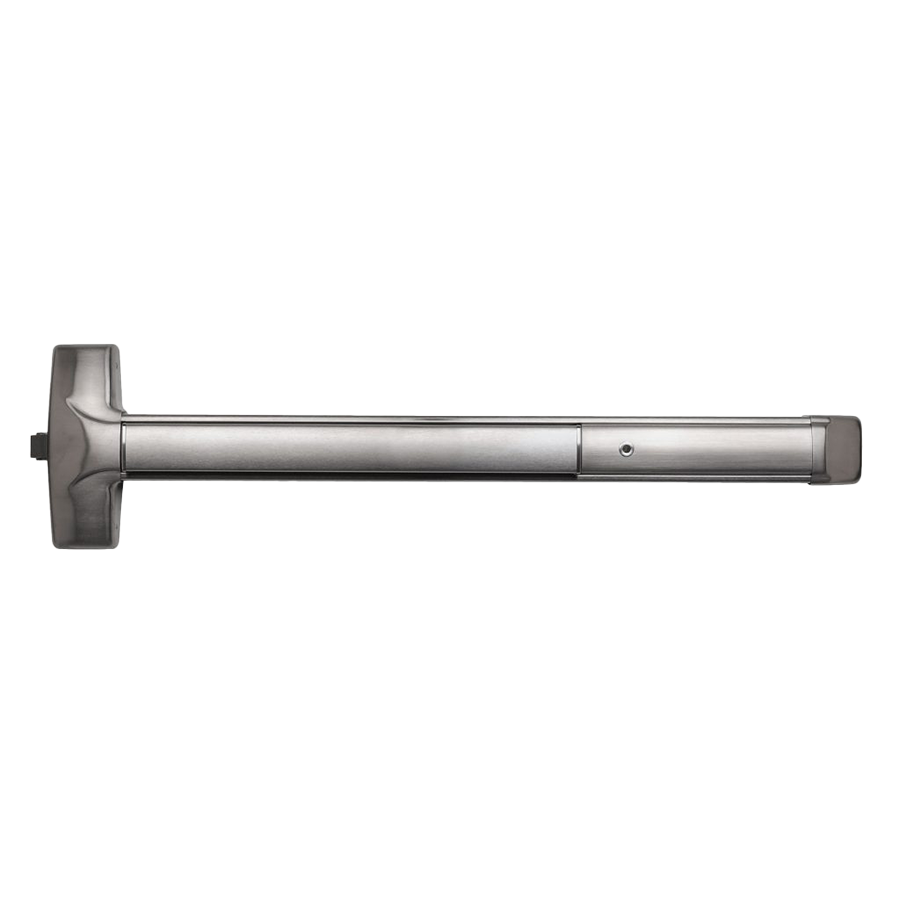

Detex 10-LD-630-48 Advantex Wide Stile Rim Exit Device, No Trim, 48in, Satin Stainless Steel

Detex Corporation 10-LD-630-48 Advantex Wide Stile Rim Exit Only Device is engineered for high-performance safety in environments requiring robust panic and fire exit hardware. Designed for both single and double doors, this device boasts a super-heavy-duty construction that withstands the rigors of high-use situations. The patented mounting plate and strike locator system streamline the installation process, eliminating the need for cumbersome paper templates. This not only ensures accuracy but also saves valuable time and resources. With a design that minimizes door preparation, it allows for quick deployment. Built for longevity, the 10 Series has been rigorously tested for over 1,000,000 cycles, exceeding Grade 1 UL testing standards. Its stainless steel components feature an environmentally-friendly PVD finish, providing durability and aesthetic appeal. The non-handed design accommodates various door types-including wood, hollow metal, fiberglass, and aluminum-and fits standard door thicknesses from 1-3/4" to 2-1/4". With additional mechanical options like anti-microbial coating and heavy-duty angled end caps that deflect damage, this exit device is a reliable choice for any security-focused installation. The Detex Corporation 10-LD-630-48 is the ultimate solution for safety and efficiency in emergency exit situations.

Advantex Wide Stile Rim Exit Only Device, No Trim, Less Dogging, 48in, 630/US32D Satin Stainless Steel

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features:

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed
• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Mechanical Options:

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• AM - Anti-Microbial Coating
• CD - Cylinder Dogging
• HD - Hex Dogging (Std.)
• LD - Less Dogging
• SLR - Silencer
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike
• EC1 - Heavy duty angled end cap (Std.)
• EC2 - Flush end cap
• 24 - Fits 24" Door Width
• 30 - Fits 30" Door Width
• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Electrical Options:

• Exit Alarm (EA)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)
• Delayed Egress - Self Contained (EE)
• Delayed Egress with Latch Retraction (EE ER)
• Electric Integration (EI)
• Electric Unlock (EU)
• Latch Bolt Signaling (LX)
• Latch Bolt Signaling for High Voltage (LXV)
• Electric Switching (ES)
• Request to Exit (EX)
• Request to Exit for High Voltage (EXV)

Accessories:

• GB1 - Glass Bead Kit
• SN1 - Sex Nut Kit (2 per package)
• SSK - Security Torx Screw Kit
• Trim Functions (see Outside Trims)

Technical Information:

• Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors
• Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike
• Fasteners - Machine and Self- Drilling Screws standard

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Brushed Brass
• 611/US9 - Polished Bronze
• 612/US10 - Brushed Bronze
• 613/US10B - Oil Rubbed Bronze
• 628/US28 - Aluminum Satin
• 629/US32 - Polished Stainless Steel
• 630/US32D - Brushed Stainless Steel
• 693/SPBLK - Black, Painted
• 695/SP313 - Dark Bronze, Painted
